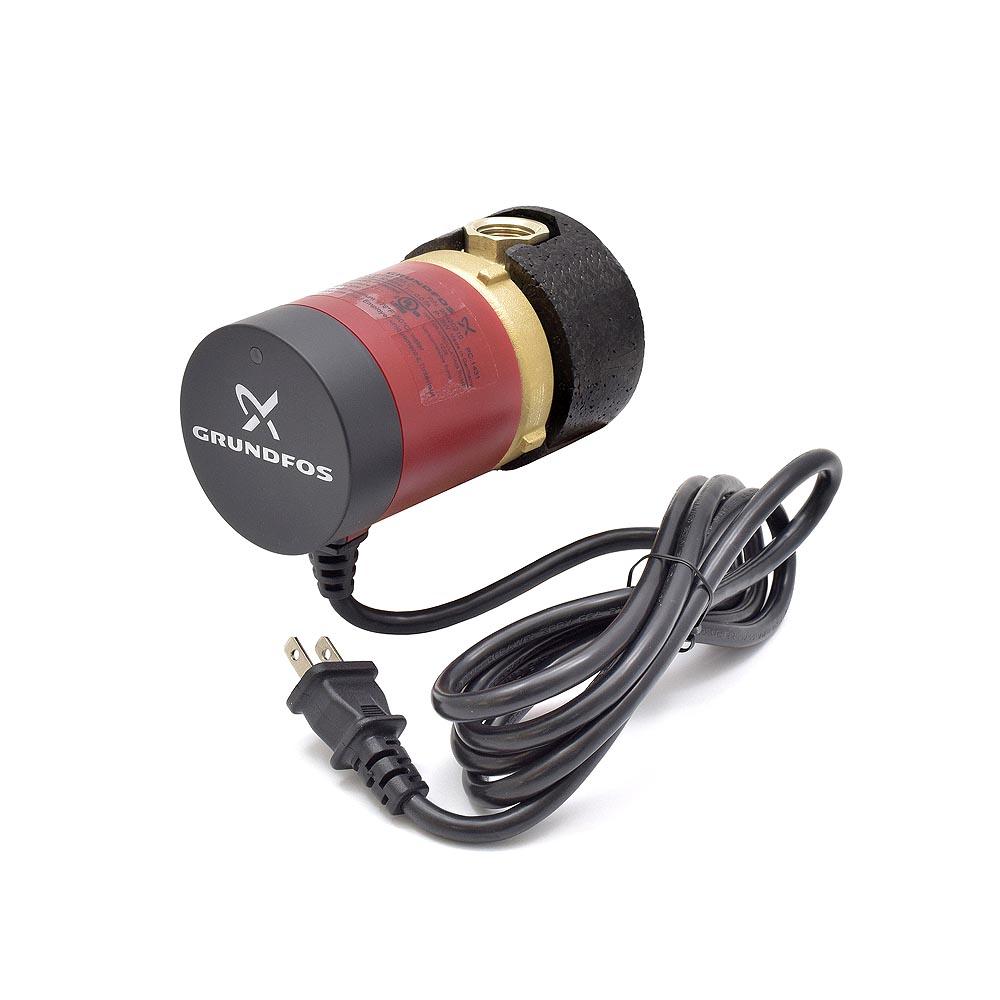

98420210 Grundfos UP10-16 PMBN5 Pump, 1/2" FNPT, Line Cord, 115V

Click Image for Gallery

The 98420210 from Grundfos is a UP 10-16 PMB5/LC Comfort pump, 1/2” FNPT, Line Cord, 115/208-230V. It's designed for recirculation of domestic hot water in single-family homes with dedicated hot-water return piping.

Features:

Lower energy consumption;
Minimize water waste;
Easy Installation.

Technical Specifications:

Connection: 1/2" FNPT;
Flow Range: 0-2.2 GPM (0-0.5 m³/h);
Head Range: 0-3.9 ft (0-1.2 m);
Phase: 1;
Housing: EcoBrass;
Maximum Liquid Temperature: 185°F (85°C);
Minimum Liquid Temperature: 36° (2°C);
Maximum System Pressure: 145 psi (10 bar);
Voltage: 115/208-230V;
Amperage: 0.23 Amps;
Power: 5-8.5 Watts.

Product Specs
Connections	Female NPT
Includes:	Line Cord
Max Flow (GPM):	2.2
Max Head (Ft):	3.9
Max Pressure (PSI):	145
Size1	1/2"
Temperature Range (F):	36°F to 185°F
Type:	Pump
Voltage	115v

Views: 13572
Model: 98420210
MPN: 98420210
Availability: Discontinued
Usually ships: 1
