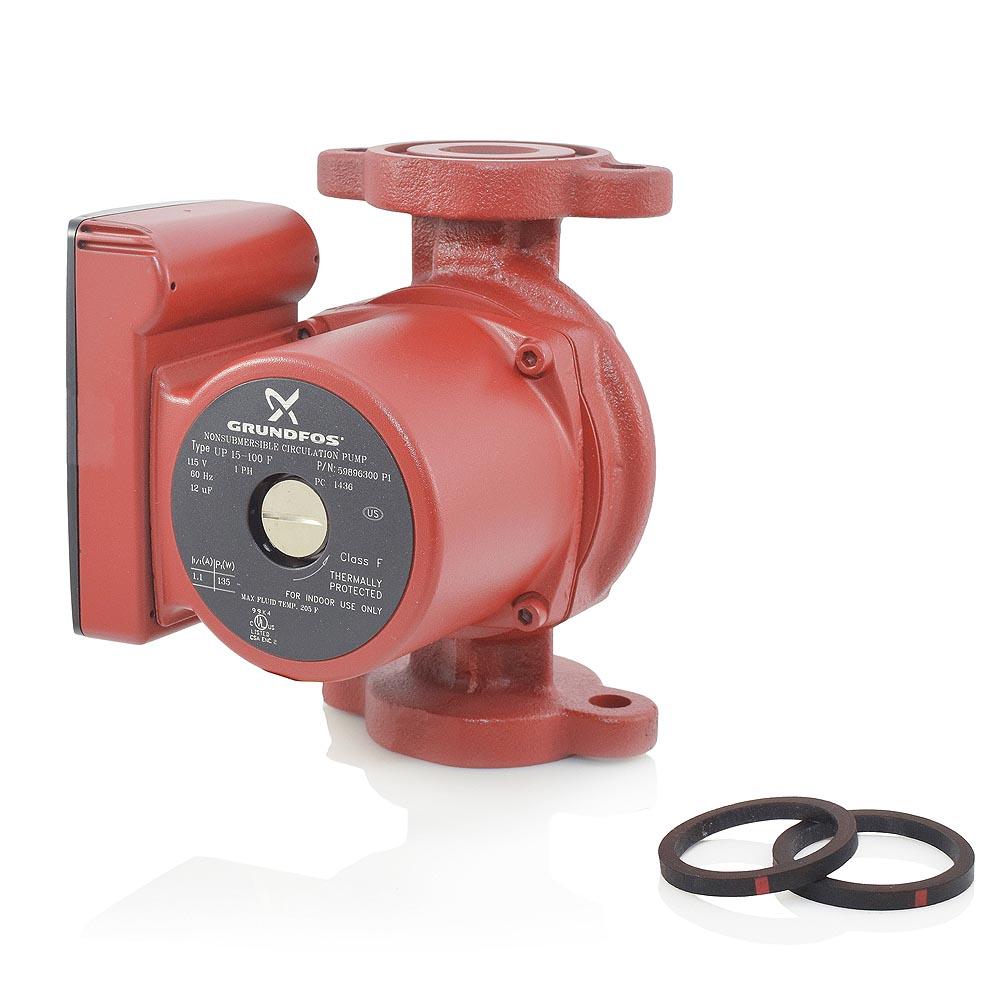

Grundfos 59896300 Cast iron Circulator Pump, 1/25HP, 115V

Click Image for Gallery

The 59896300 from Grundfos is a UP15-100F Cast Iron Circulator Pump, 1/25HP, 115V. It's a high-head circulator pump specifically designed for applications with high pressure drop. Suitable for use with closed loop heating applications, including radiant heating, baseboards, fan coils and many others.

Features:

Ceramic shaft and radial bearings;
Carbon axial bearing;
Stainless steel rotor can and bearing plate;
Corrosion-resistant impeller, Composite, PES;
Cast iron pump housing;

Technical Specifications:

Speed Number: 1;
Max flow: 8.37 US gpm;
Head max: 36.1 ft;
Liquid temperature range: 35.6 - 204.8 F;
Maximum operating pressure: 145 psi;
Approvals on nameplate: UL, CSA;
Pump housing: Cast iron;
Pump housing: EN-JL1030;
Pump housing: ASTM 30 B;
Impeller: Composite, PES;
Maximum ambient temperature: 104 F;
Ambient max at 176 F liquid: 176 F;
Maximum operating pressure: 145 psi;
Flange standard: USA Oval;
Type of connection: C.I. Flange;
Pipe connection: 3/4", 1", 1-1/4", 1-1/2" (GF 15/26);
Pressure stage: 10;
Port-to-port length: 6-1/2";
Number of poles: 2;
Max. power input: 135 W;
Rated power - P2: 0.04 HP;
Main frequency: 60 Hz;
Voltage: 115V;
Current in speed 3: 1.1 A;
Insulation class (IEC 85): F;
Gross weight: 6.75 lbs;

Warranty:

2 years from date of installation.

Product Specs
Amperage:	1.1
Application	Heating
Connection Size:	3/4"
Connection Type	Flanged
Flow Range (GPM):	0-8.5
Head Range (ft.):	0-36
Hertz:	60
Horse Power	1/25
Material1	Cast Iron
Max Flow (GPM):	8.5
Max Head (Ft):	36
Max Pressure (PSI):	145
Phase:	1
Temperature Range (F):	36°-205°F
Type:	1-Speed Pump
Voltage	115v

Views: 9561
Model: 59896300
MPN: 59896300
Availability: Discontinued
Usually ships: Upon availability
