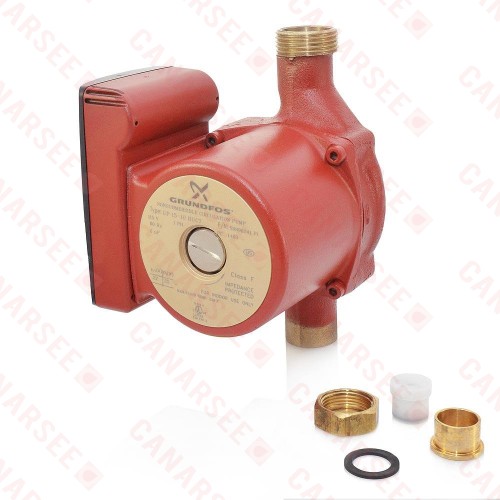

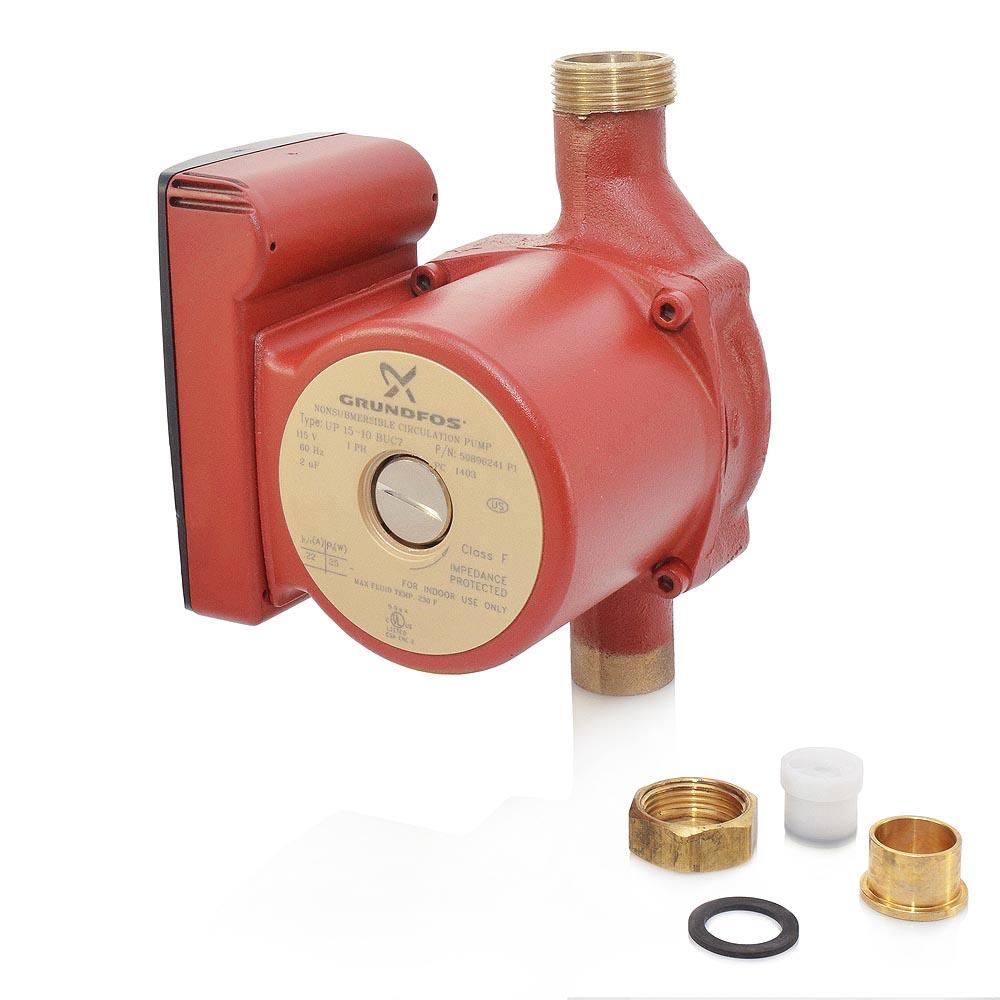

UP15-10BUC7 Bronze Circulator Pump w/ IFC, 3/4” Sweat (Union), 1/25 HP, 115V

Click Image for Gallery

UP15-10BUC7 Bronze Circulator Pump w/ IFC, 3/4” Sweat (Union), 1/25 HP, 115V QR Code

QR-Code Views: 7150

Model: 59896241
UPC: 632514002111

MPN: 59896241

Availability:Discontinued

Weight:7.00 lb

Dimensions (L x W x H ): 8.00 x 6.00 x 7.00

$261.95

Add to Wish List Add to Compare

0 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (0)

The 59896241 from Grundfos is s UP15-10BUC7 1/25HP Bronze Circulator Pump w/ 3/4” Sweat inlet and 3/4” sweat union outlet with removable integral check valve. This pump works well in domestic hot water recirculation, radiant heating, solar, and many others. Due to its bronze pump house, this item suffers from less corrosion thus having a longer circulator life.

Features:

Ceramic shaft and radial bearings;
Carbon axial bearing;
Stainless steel rotor can and bearing plate;
Corrosion-resistant impeller, Composite, PES;
Bronze pump housing;
Integral Check Valve;

Technical Specifications:

Speed Number: 1;
Max flow: 6.6 US gpm;
Head max: 6.56 ft;
Liquid temperature range: 35.6 .. 230 F;
Maximum operating pressure: 145 psi;
Approvals on nameplate: UL, CSA;
Pump housing: Bronze;
Pump housing: DIN W.-Nr. 2.1176.01;
Impeller: Composite, PES;
Maximum ambient temperature: 104 F;
Ambient max at 176 F liquid: 176 F;
Maximum operating pressure: 145 psi;
Flange standard: USA Sweat;
Type of connection: Bronze Sweat;
Pipe connection: 3/4" Sweat;
Pressure stage: 10;
Port-to-port length: 7.72";
Number of poles: 2;
Max. power input: 25 W;
Rated power - P2: 0.04 HP;
Main frequency: 60 Hz;
Voltage: 115V;
Current in speed 3: 0.22 A;
Capacitor size - run: 2F/400 V;
Insulation class (IEC 85): F;
Gross weight: 8 lb;

Manufacturer's warranty:

2 years from date of installation.

Product Specs
Amperage:	0.22
Application:	Heating
Connection Size:	3/4"
Connection Type:	Union
Flow Range (GPM):	0-6.6
Head Range (ft.):	0-6.6
Hertz:	60
Horse Power:	1/25
Material:	Bronze
Max Flow (GPM):	6.6
Max Head (Ft):	6.6
Max Pressure (PSI):	145
Phase:	1
Temperature Range (F):	36°-230°F
Type:	1-Speed Pump
Voltage:	115v
