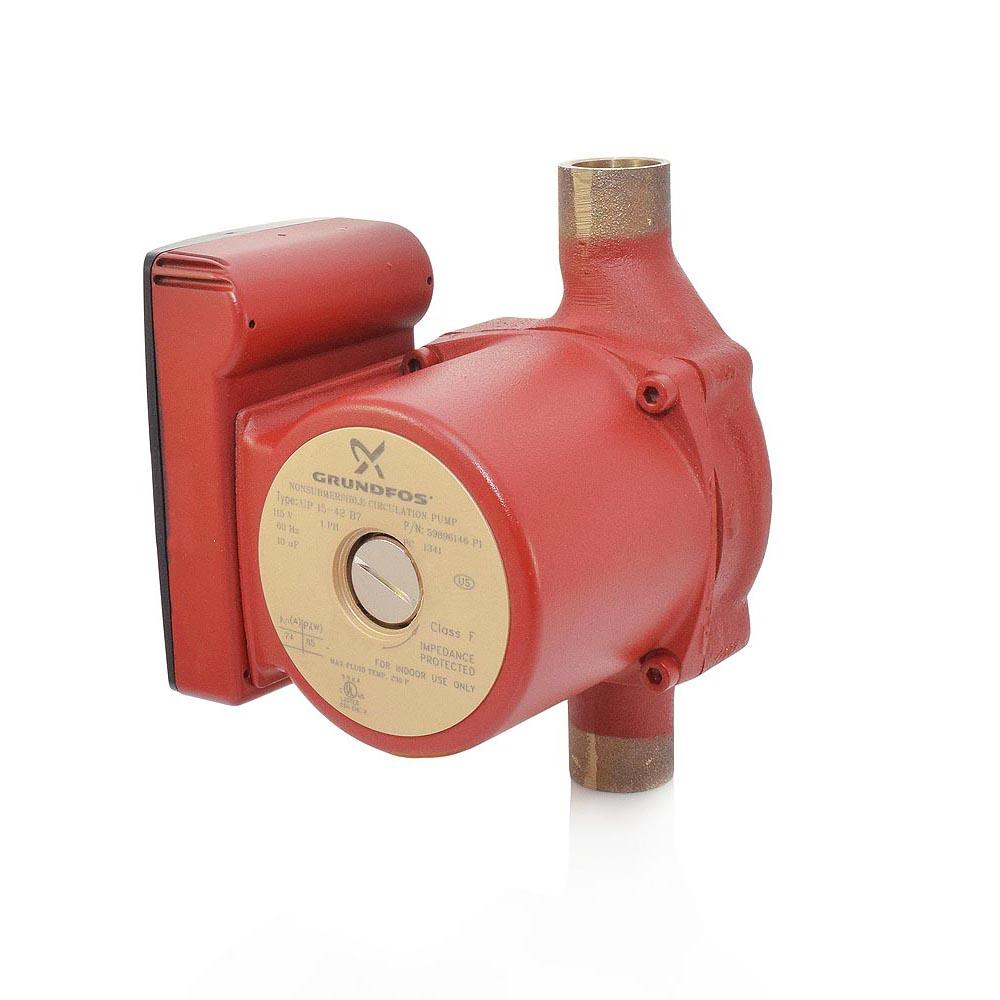

Grundfos 59896146 Bronze Circulator Pump, 3/4" Sweat, 1/25HP, 115V

Click Image for Gallery

The 59896146 from Grundfos is a UP15-42B7 Bronze Circulator Pump with 3/4” Sweat, 1/25HP, 115V. This pump is well suited for hot water recirculation as well as other open system types, including radiant, solar, fan coils, storage tanks, etc. Bronze housing of the UP15-42B5 model protects the pump from corrosion and sweat connections allow for easier and faster installation and eliminate the need to purchase and install pump flanges.

Features:

Suitable for all heating systems including hydronic heating, fan coil heating, radiant heating, solar heating, and other systems;
Built-in motor protection for long life;
Bronze body;
UL/CSA listed.

Technical Specifications:

Voltage: 115V;
Amperage: 0.74 Amps;
Hertz: 60 Hz;
Phase: 1;
Watts: 85W;
Max Pressure: 145 psi;
Max Temperature: 230F;
Min Temperature: 36F;
Flow Range: 0-17 GPM;
Head Range: 0-15 ft;
Horse Power: 1/25HP;
Body: Bronze;
Connections: ¾" Sweat;

Manufacturer's warranty:

2 years from the date of installation.

Product Specs
Connection Size:	3/4"
Connection Type	Sweat
Frequency:	60 Hz
Horse Power	1/25
Material1	Bronze
Max Flow (GPM):	17.2
Max Head (Ft):	15.1
Max Pressure (PSI):	145
Mount	In-Line
Phase:	1
Speeds:	1
Type:	1-Speed Pump
Voltage	115v

Views: 8514
Model: 59896146
MPN: 59896146
Availability: Discontinued
Usually ships: 1
