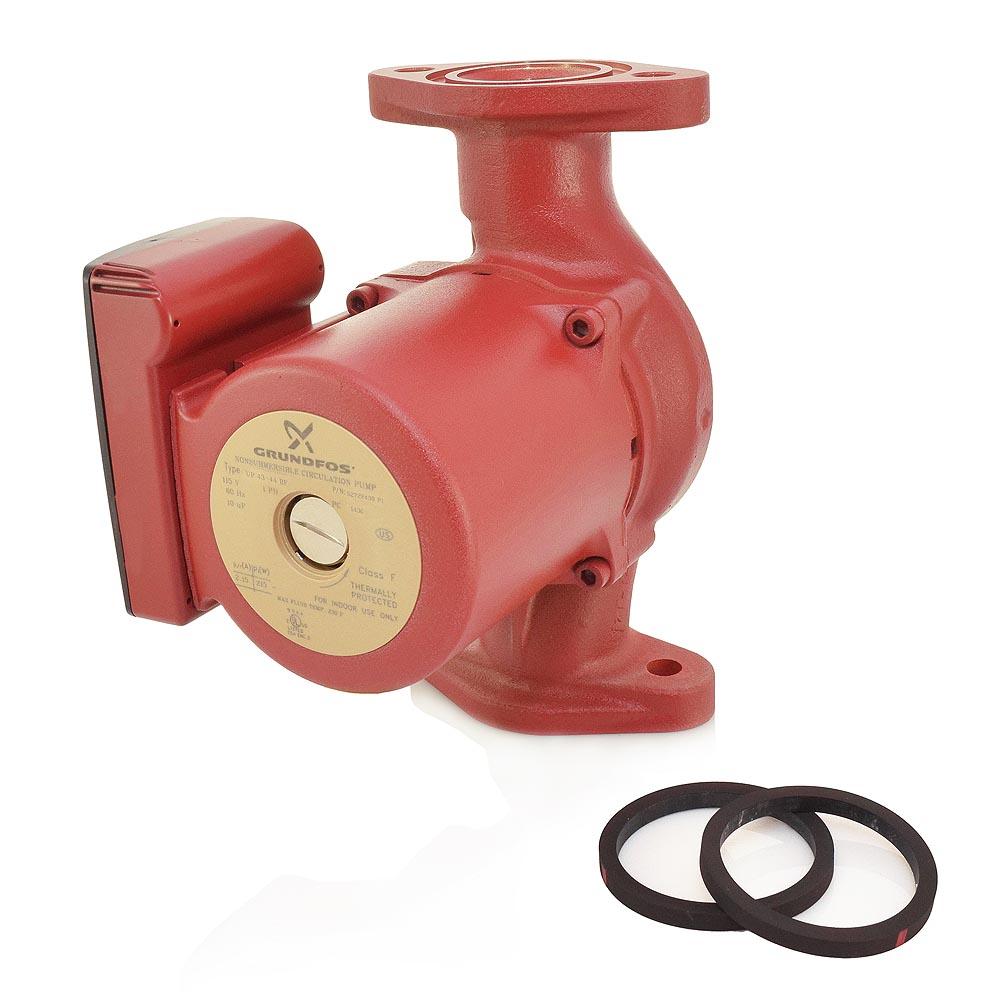

Grundfos 52722439 Bronze Circulator Pump, 1/6HP, 115V
Click Image for Gallery
Grundfos UP43-44BF is a Bronze Circulator Pump (Grundfos SKU# 52722439) designed for use in both open and closed loop heating applications and well as hot water recirculation, cold water chilling and many others. High flow (high velocity) and low/medium pressure drop of the Grundfos UP43-44BF model make it ideal for use with water-to-water and water-to-air heat exchangers.
Features:
- Ceramic shaft and radial bearings;
- Carbon axial bearing;
- Stainless steel rotor can and bearing plate;
- Corrosion-resistant impeller, Composite, PES;
- Bronze pump housing;
Technical Specifications of Grundfos UP43-44BF:
- Speeds: 1;
- Max flow: 67.8 GPM;
- Head max: 13.5 ft of head;
- Liquid temperature range: 32 - 230 F;
- Maximum operating pressure: 145 psi;
- Approvals on nameplate: UL, CSA;
- Pump housing: Bronze;
- Pump housing: DIN W.-Nr. 2.1176.01;
- Impeller: Composite, PES;
- Maximum ambient temperature: 104 F;
- Ambient max at 176 F liquid: 176 F;
- Maximum operating pressure: 145 psi;
- Flange standard: USA Oval;
- Type of connection: Bronze Flange;
- Pipe connection: 3/4", 1", 1-1/4" flange (GF 15/26);
- Pressure stage: 10;
- Flangeto-flange dimensions: 8 1/2";
- Number of poles: 2;
- Max. power input: 215 W;
- Rated power - P2: 0.161 HP;
- Main frequency: 60 Hz;
- Voltage: 115V;
- Current in speed 3: 2.15 A;
- Capacitor size - run: 10mF/180 V;
- Insulation class (IEC 85): F;
- Weight: 15 lb;
Manufacturer's warranty:
2 years from date of installation.
| Product Specs | |
| Amperage: | 2.15 |
| Application | Heating |
| Connection Size: | 1-1/2" |
| Connection Type | Flanged |
| Flow Range (GPM): | 0-68 |
| Head Range (ft.): | 0-13.5 |
| Hertz: | 60 |
| Horse Power | 1/6 |
| Material1 | Bronze |
| Max Flow (GPM): | 68 |
| Max Head (Ft): | 13.5 |
| Max Pressure (PSI): | 145 |
| Phase: | 1 |
| Temperature Range (F): | 32°-230°F |
| Type: | 1-Speed Pump |
| Voltage | 115v |
- Views: 12879
-
- Model: 52722439
- MPN: 52722439
- Availability: Discontinued
- Usually ships: Upon availability
- $ 660.95
