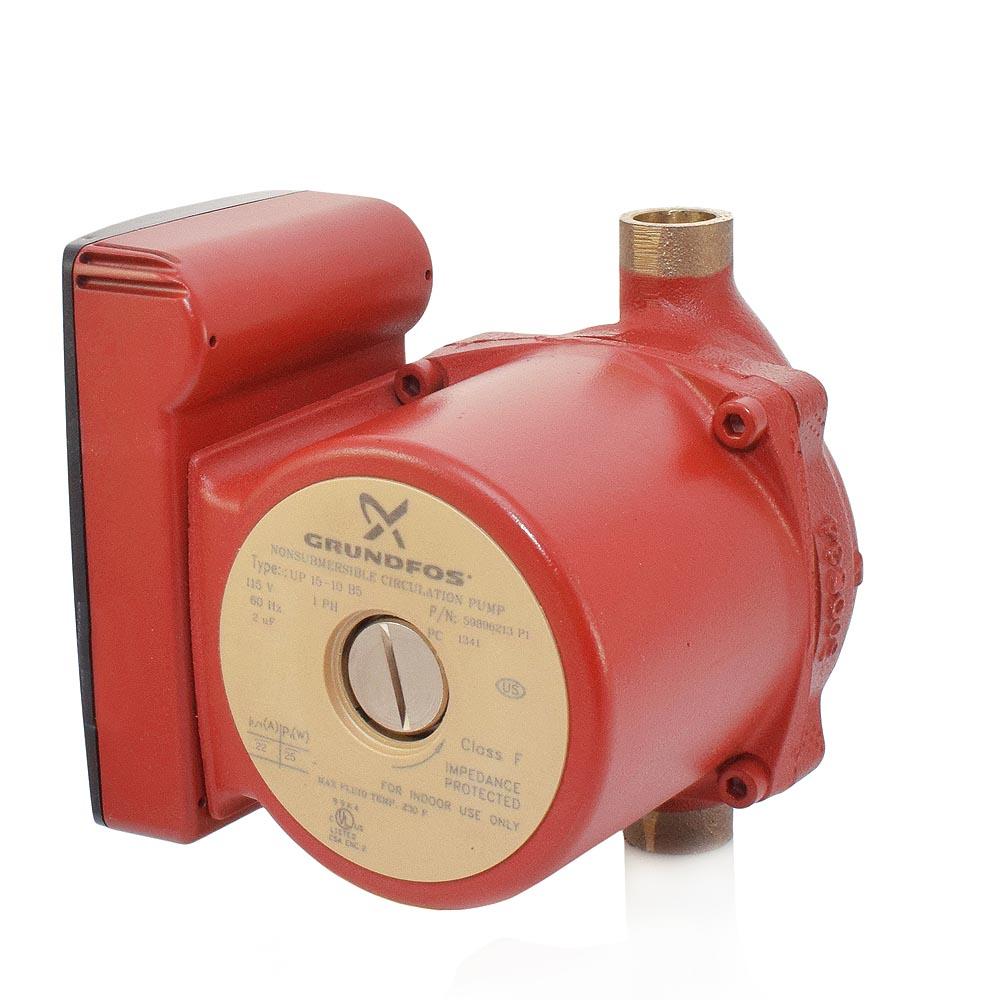

Grundfos 59896213 Bronze Circulator Pump, 1/2" Sweat, 1/25HP, 115V

Click Image for Gallery

The 59896213 from Grundfos is a UP15-10B5 Circulator Pump, 1/25HP, 115V, 1/2” Sweat. It's a single-speed model with bronze housing. This pump is well suited for hot water recirculation as well as other open system types, including radiant, solar, fan coils, storage tanks, etc. Bronze housing of the UP15-10B5 model protects the pump from corrosion and sweat connections allow for easier and faster installation and eliminate the need to purchase and install pump flanges.

Features:

Ceramic shaft and radial bearings;
Carbon axial bearing;
Stainless steel rotor can and bearing plate;
Corrosion-resistant impeller, Composite, PES;
Bronze pump housing;

Technical Specifications:

Speed Number: 1;
Max flow: 8.37 US gpm;
Head max: 6.23 ft;
Liquid temperature range: 35.6 - 219.2 F;
Maximum operating pressure: 145 psi;
Approvals on nameplate: UL, CSA;
Pump housing: Bronze;
Pump housing: DIN W.-Nr. 2.1176.01;
Impeller: Composite, PES;
Maximum ambient temperature: 104 F;
Ambient max at 176 F liquid: 176 F;
Maximum operating pressure: 145 psi;
Flange standard: USA Sweat;
Type of connection: Bronze Sweat;
Pipe connection: 1/2" Sweat;
Pressure stage: 10;
Port-to-port length: 5";
Number of poles: 2;
Max. power input: 25 W;
Rated power - P2: 0.04 HP;
Main frequency: 60 Hz;
Voltage: 115V;
Current in speed 3: 0.22 A;
Capacitor size - run: 2mF/400 V;
Insulation class (IEC 85): F;
Gross weight: 6 lbs;

Warranty:

2 years from date of installation.

Product Specs
Connection Size:	1/2"
Connection Type	Sweat
Frequency:	60 Hz
Horse Power	1/25
Material1	Bronze
Max Flow (GPM):	8.37
Max Head (Ft):	6.23
Max Pressure (PSI):	145
Mount	In-Line
Phase:	1
Speeds:	1
Type:	1-Speed Pump
Voltage	115v
