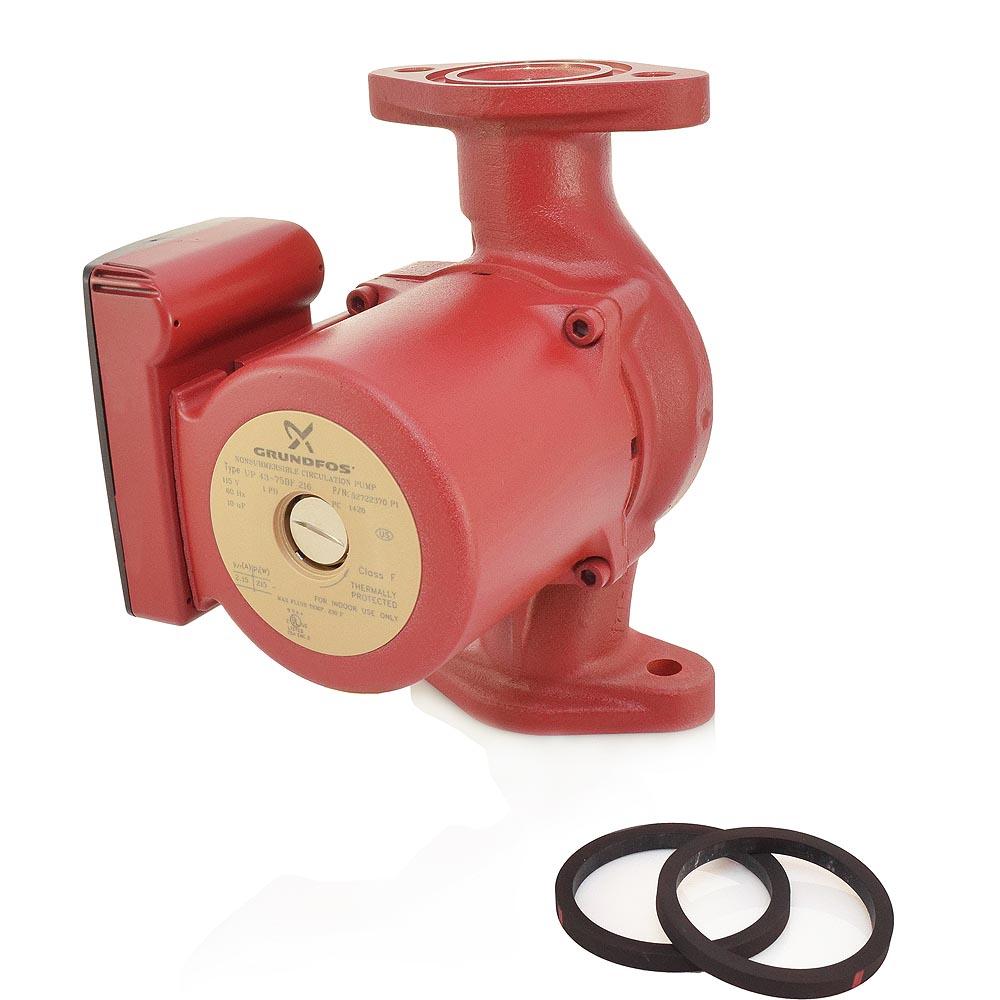

Grundfos 52722370 Bronze Circulator Pump, 1-1/2" Flange, 1/6HP, 115V

Grundfos 52722370 Bronze Circulator Pump, 1-1/2" Flange, 1/6HP, 115V

Grundfos UP43-75BF is a single-speed bronze circulator pump (Grundfos SKU# 52722370), designed for use in a large number of heating, hot and cold water recirculation applications. Bronze housing of the Grundfos UP43-75BF model offers superior corrosion protection.

Pump features GF 40/43 flange connections (1-1/2").



Features:

  • Ceramic shaft and radial bearings;
  • Carbon axial bearing;
  • Stainless steel rotor can and bearing plate;
  • Corrosion-resistant impeller, Composite, PES;
  • Bronze pump housing.;



Technical Specifications of Grundfos UP43-75BF:

  • Speed Number: 1;
  • Max flow: 40.9 US gpm;
  • Head max: 24.9 ft;
  • Liquid temperature range: 35.6 .. 230 F;
  • Maximum operating pressure: 145 psi;
  • Approvals on nameplate: UL, CSA;
  • Pump housing: Bronze;
  • Pump housing: DIN W.-Nr. 2.1176.01;
  • Impeller: Composite, PES;
  • Maximum ambient temperature: 104 F;
  • Ambient max at 176 F liquid: 176 F;
  • Maximum operating pressure: 145 psi;
  • Flange standard: USA Oval;
  • Type of connection: Bronze Flange;
  • Pipe connection: 1-1/2" flange (GF 40/43);
  • Pressure stage: 10;
  • Port-to-port length: 8 1/2";
  • Number of poles: 2;
  • Max. power input: 215 W;
  • Rated power - P2: 0.161 HP;
  • Main frequency: 60 Hz;
  • Voltage: 115V;
  • Current in speed 3: 2.15 A;
  • Capacitor size - run: 10mF/180 V;
  • Insulation class (IEC 85): F;
  • Gross weight: 15 lb;



Manufacturer's warranty:

2 years from date of installation.

Product Specs
Amperage: 2.15
Application Heating
Connection Size: 1-1/2"
Connection Type Flanged
Flow Range (GPM): 0-41
Head Range (ft.): 0-26
Hertz: 60
Horse Power: 1/6
Material1 Bronze
Max Flow (GPM): 41
Max Head (Ft): 26
Max Pressure (PSI): 145
Phase: 1
RPM: 3150
Temperature Range (F): 36°-230°F
Type1 1-Speed Pump
Voltage 115v
