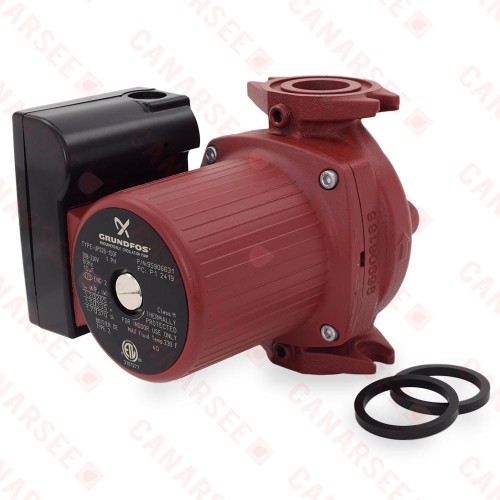

UPS26-150F 3-Speed Cast Iron Circulator Pump, 208-230V
Click Image for Gallery
Grundfos UPS26-150F is a 230V 3-speed cast iron circulator pump for heating and cooling applications.
Technical Specifications:
Features:
Technical Specifications:
- Casing: Cast Iron
- Circulator Pump Type: 3-Speed
- Connections: Flanged (GF15/26)
- Circulator Height (Flange to Flange): 6-1/2"
- Electrical Specs: 115V, 60 Hz, 370W max, 1.7 Amps max; 400V Capacitor
- Head Range: 0-45.28 ft
- Flow Range: 0-52 GPM
- Operating Temperature Range: 36°F - 230°F
- Max Operating Pressure: 145 psi
- Sound Pressure Level: 40 dB
- Dimensions (Depth x Width x Height): 7.13" x 5.67" x 6.50"
- Weight (lbs): 16.2 lbs
Features:
- 3-speed switch (Lo/Med/Hi) provides versatility for various applications
- Whisper-quiet and maintenace-free operation
- Quick connectivity to terminals for easy installation
- Power LED indicator
- Lubricated bearings
- Suitable for up to pumping up to 50/50 glycol & water mix solution
- Impeller, bearing plate,and rotor are made of stainless steel
- Made in the USA
- cETLus Listed
- Views: 112
-
- Model: UPS26-150F
- MPN: 95906631
- Availability: Out Of Stock
- Usually ships: within 1 business day(s)
- $ 685.95
