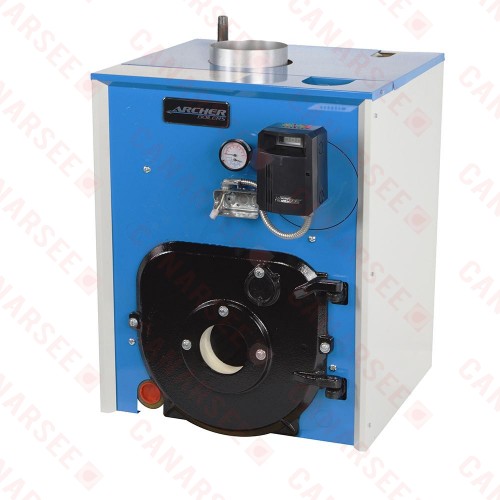

Trooper 158,000 BTU Hot Water Oil Boiler w/out Burner w/out Tankless Coil, Chimney Vent, 86% AFUE
Click Image for Gallery
Note: product title indicates boiler''s Net AHRI (Net IBR) rating
This boiler model does not include a burner (part# 131522B).
Trooper series cast iron hot water oil-fired boiler without tankless domestic hot water coil.
Trooper boiler is a cost-attractive, high-quality solution for new or replacement boiler installations, combining clean, no-frills look with top-quality and familiar brand controls & components, USA-made cast iron heat exchanger and quality assembly - for an easy installation & maintenance, longer life span and worry-free performance.
Boiler includes: Draft Regulator, Hydrolevel HydroStat Control, Taco 007e (high efficiency) Circulator Pump w/ Flange Set, Pressure Relief Valve, Drain Valve, Temperature & Pressure Gauge, Fittings.
Technical Specifications:
Features:
This boiler model does not include a burner (part# 131522B).
Trooper series cast iron hot water oil-fired boiler without tankless domestic hot water coil.
Trooper boiler is a cost-attractive, high-quality solution for new or replacement boiler installations, combining clean, no-frills look with top-quality and familiar brand controls & components, USA-made cast iron heat exchanger and quality assembly - for an easy installation & maintenance, longer life span and worry-free performance.
Boiler includes: Draft Regulator, Hydrolevel HydroStat Control, Taco 007e (high efficiency) Circulator Pump w/ Flange Set, Pressure Relief Valve, Drain Valve, Temperature & Pressure Gauge, Fittings.
Technical Specifications:
- Input (BTU): 182,000 (w/ default nozzle), 148,000 (w/ nozzle #2)
- Net AHRI Rating (BTU): 158,000 (w/ default nozzle), 129,000 (w/ nozzle #2)
- Burner Capacity (BTU): 210,000 (w/ default nozzle), 168,000 (w/ nozzle #2)
- Burner Capacity/Oil Firing Rate (GPH): 1.50 (default nozzle), 1.20 (nozzle #2)
- Efficiency (AFUE): 86.0% (default), 87.0% (nozzle #2)
- Fuel Type: #2 Fuel Oil
- Boiler/System Type: Hot Water (Hydronic) Cast Iron Oil Boiler
- Boiler Connections: 1-1/2" NPT - Supply/Return Connections, 3/4" NPT - Relief Valve, 3/4" NPT - Drain
- Vent Type: Chimney Vent
- Vent Pipe Size: 7" (standard Cat I galvanized chimney vent pipe)
- Minimum Chimney Requirements: 8" x 8" x 15''
- Dimensions: 26" Wide x 23" Deep (35" w/ burner installed) x 32" High
- Approx. Shipping Weight: 680 lbs
Features:
- 2 boiler sizes in one - burner (sold separately) includes (1) additional smaller size nozzle for lower BTU output
- Energy Star certified (when used with smaller size nozzle)
- Model without tankless domestic hot water (DHW) coil
- Traditional design, enhanced for greater value and ease of installation & maintenance
- Fully packaged and assembled (circulator, drain valve and T&P valve shipped loose)
- Premium-level, familiar brand controls (Honeywell & Hydrolevel) for ease of monitoring and service
- Assembled in Pennsylvania with USA-made components, including robust, time-tested and efficient cast iron heat exchanger with metal section connections for increased boiler life
- Taco 007-F5 circulator included
- Removable top cover and swing-out cast iron door with burner quick disconnect harness for ease of access, cleaning and repair
- Combustion chamber lined with replaceable ceramic insulation
| Product Specs | |
| Boiler Sections | 4 |
| Boiler Vent Type | Chimney Vent |
| Input BTU Rating | 175,000 - 200,000 |
| Net BTU Rating | 150,000 - 175,000 |
| Efficiency (AFUE) | 86% |
| Features | w/ Burner;w/out Burner;w/ DHW Tankless Coil |
| Product Type | Oil Boilers |
| Venting Size | 7" |
