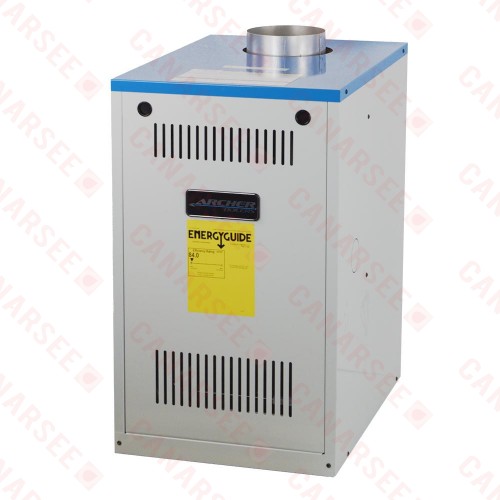

Ranger 73,000 BTU Hot Water Gas Boiler (w/ external draft hood), Chimney Vent, 84% AFUE, Natural Gas
Click Image for Gallery
Note: product title indicates boiler''s Net AHRI (Net IBR) rating
Ranger is a standard-efficiency, cast iron (non-condensing), chimney-vented hot water gas boiler with traditional draft hood design. It is a high-quality and cost-effective solution for new or replacement boiler installs, which combines clean looks with top-quality controls (concealed behind easy-access front panel) and USA-made, reliable cast iron heat exchanger - for easy installation, extended life span and worry-free performance.
Boiler includes: Draft Hood, Automatic Damper (with quick-disconnect harness), HydroStat 3200 control, Honeywell/Resideo Step-Opening Redundant Gas Valve, Taco 007e Circulator Pump w/ Flange Set, Spark Ignition (w/ continuous retry), Resettable Blocked Vent Switch, Drain Valve, Pressure Relief Valve (Watts or Apollo brand), Temperature & Pressure Gauge and Boiler Manifold.
Technical Specifications:
Features:
Ranger is a standard-efficiency, cast iron (non-condensing), chimney-vented hot water gas boiler with traditional draft hood design. It is a high-quality and cost-effective solution for new or replacement boiler installs, which combines clean looks with top-quality controls (concealed behind easy-access front panel) and USA-made, reliable cast iron heat exchanger - for easy installation, extended life span and worry-free performance.
Boiler includes: Draft Hood, Automatic Damper (with quick-disconnect harness), HydroStat 3200 control, Honeywell/Resideo Step-Opening Redundant Gas Valve, Taco 007e Circulator Pump w/ Flange Set, Spark Ignition (w/ continuous retry), Resettable Blocked Vent Switch, Drain Valve, Pressure Relief Valve (Watts or Apollo brand), Temperature & Pressure Gauge and Boiler Manifold.
Technical Specifications:
- Input (BTU): 100,000
- Net AHRI Rating (BTU): 73,000
- DOE Heating Capacity (BTU): 84,000
- Efficiency (AFUE): 84%
- Fuel Type: Natural Gas (can be converted to propane with 109706-01 kit)
- Boiler/System Type: Hot Water (Hydronic) Cast Iron Gas Boiler
- Boiler Connections: 1-1/4" NPT - Supply/Return Connections, 3/4" NPT - Relief Valve, 3/4" NPT - Drain, 1/2" NPT - Gas
- Pressure Specs: 30 psi relief valve setting, 50 psi max. allowed working pressure
- Vent Type: Chimney Vent
- Vent Pipe Size: 5" (standard Cat I galvanized chimney vent pipe)
- Internal Water Volume: 3 Gallons
- Dimensions: 16" Wide x 27" Deep x 32.5" High (from floor, without draft hood installed)
- Weight: 230 lbs (empty) / 292 lbs (shipping)
Features:
- Traditional design (with top draft hood) and clean look (controls concealed behind front panel)
- Suitable for high elevation installations (with optional high-altitude conversion kit)
- Premium-level controls: Honeywell/Resideo S8610 & Hydrolevel HydroStat 3200
- Taco 007e high efficiency ECM circulator included (w/ 1-1/4" NPT flanges)
- Stainless steel precision burners
- Powder coated steel jacket with heavy-gauge, 1" base insulation
- Assembled in Pennsylvania with USA-made components, including robust, time-tested and efficient cast iron heat exchanger with metal section connections for increased boiler life
| Product Specs | |
| Boiler Sections | 4 |
| Boiler Vent Type | Chimney Vent |
| Input BTU Rating | 75,000 - 100,000;100,000 - 125,000 |
| Net BTU Rating | 50,000 - 75,000 |
| Efficiency (AFUE) | 84% |
| Product Type | Cast Iron Gas Boilers |
| Venting Size | 5" |
