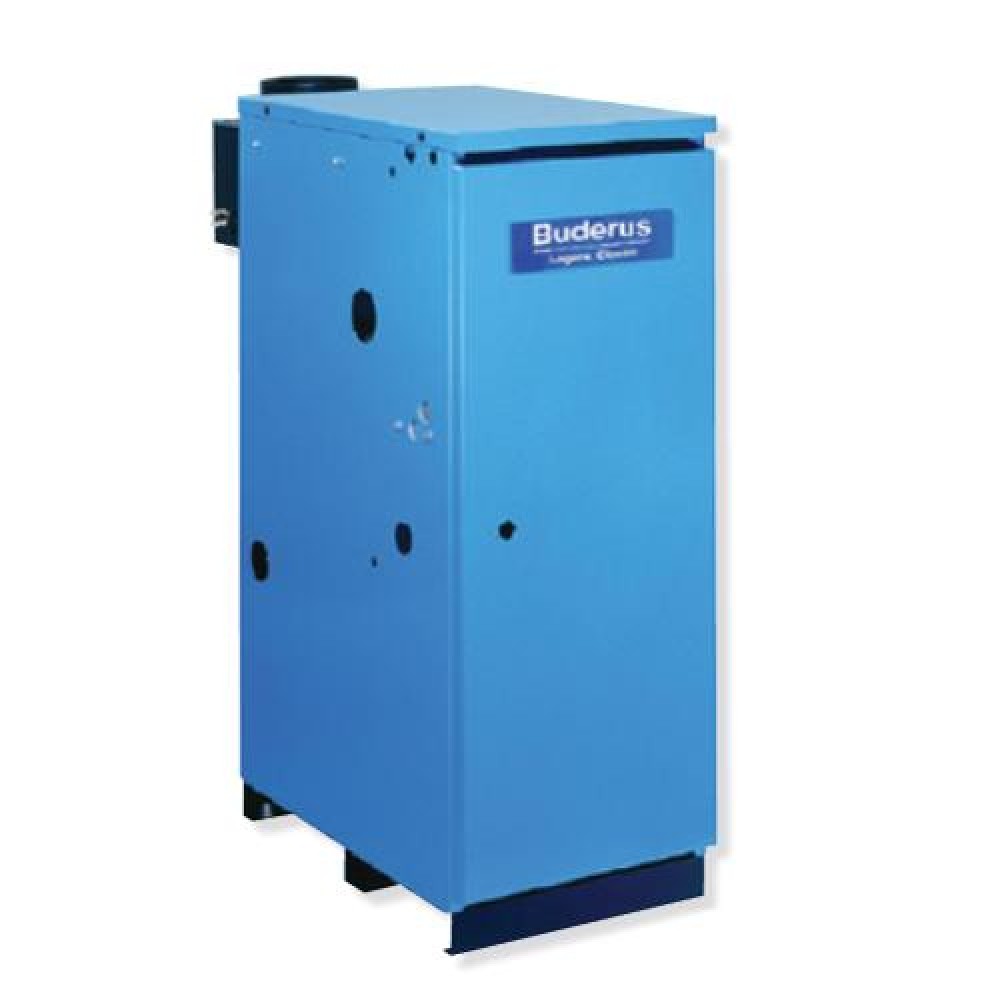

GC144/3 Cast Iron Gas Boiler, 54,000 BTU

GC144/3 Cast Iron Gas Boiler, 54,000 BTU
Buderus GC144/3 model is a non-condensing, cast iron type, floor-standing gas boiler with 85% AFUE and 54,000 BTU (NG, Net) rating. Includes 30 psi relief valve, tridicator gauge, circulator pump w/ 3ft whip and built-in draft hood with draft diverter and vent damper. For LP conversion, order part# 7738003477.


Technical Specifications:

  • Input (BTU): 74,000
  • DOE Rating (BTU): 62,000
  • Net IBR Rating (BTU): 54,000
  • Efficiency (AFUE): 85%
  • Boiler Type: Non-Condensing (cast-iron heat exchanger)
  • Ignition Type: Intermittent Electronic
  • Fuel Type: Natural Gas (NG) (convertible to propane with LP conversion kit - part# 7736660258)
  • System Type: Hydronic (Hot Water)
  • Boiler Connections: 1-1/4" NPT
  • Gas Connection: 1/2" NPT
  • Max. Working Pressure: 58 psi
  • Vent Size: 5"
  • Vent Material: Regular chimney pipe
  • Inlet Gas Pressure (WC): 4.7" - 10.5" (for NG)
  • 11" - 13" (LP)
  • Max. Elevation: 8,500ft
  • Mounting Type: Floor-standing
  • Dimensions (Depth x Width x Height): 29-1/2" x 13-1/8" x 34-3/8"
  • Weight (lbs): 228
  • Water Volume (gallons): 2.4.
Product Specs
Net BTU Rating 50,000 - 75,000
Boiler Type Non-Condensing (cast-iron heat exchanger)
Series GC144
Venting Size 5"

Write a review

Please login or register to review
  • Views: 4900
  • Model: GC144/3
  • MPN: 7738503407
  • Availability: Discontinued
  • Usually ships: Upon availability
  • $ 2 850.00
