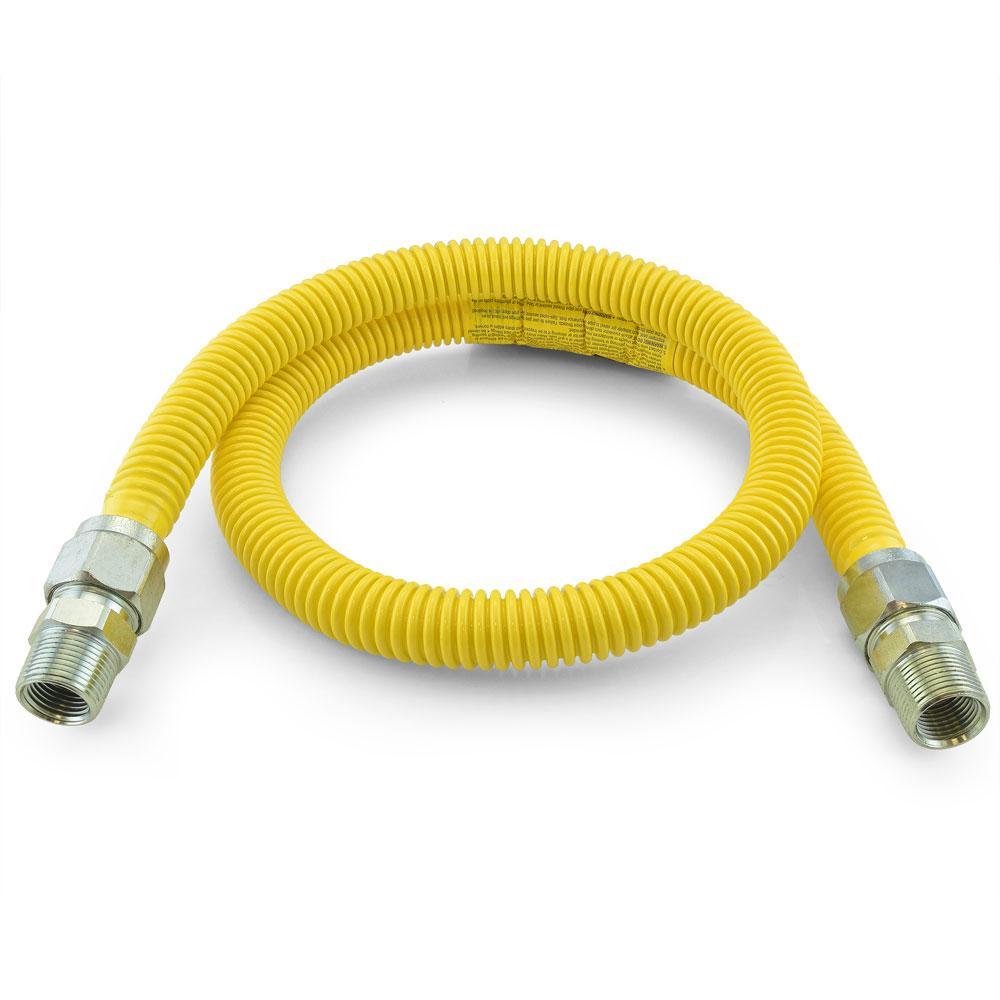

3/4 ID (7/8" OD) ProCoat Coated Stainless Steel Gas Connector w/ 3/4" MIP Fittings (48" Length)"

Click Image for Gallery

The CSSB11-48 from BrassCraft is a 48” ProCoat Stainless Steel Gas Connector, 3/4” MIP x 3/4” MIP (3/4” ID; 7/8” OD). It provides a secure and lasting gas connection. ProCoat technology provide unequaled corrosion resistance. For use with indoor and outdoor connections of gas appliances to gas piping system.

Materials of Construction:

Tubing: 304L stainless steel;
Coating: Polymer blend;
Nuts: 12L14 or 1010 steel;
Fittings: 12L14 or 1010 steel.

Features:

Superior corrosion resistance to harsh chemicals found in common household cleaning, plumbing repair and masonry products;
UV rays & salt resistant, ProCoat gas connectors are certified for indoor & outdoor use;
Greater strength & flexibility with greater depth & number of corrugations to withstand greater torque & bend cycles;
Outperforms industry standards for torsion (1.5X) without compromising the integrity of the coating or connector;
Outperforms industry standard for repeated bending (2X) without compromising the integrity of the coating or connector;
One-piece construction has no soldered of brazed joints;
Smoother, burnished flare on connector ends seal with less torque;
Uniform coat over entire length of connector for complete corrosion resistance of the stainless steel core;
100% leak tested;
Made in the USA.

Technical Specifications:

Connections: 3/4" MIP Straight (tapped 1/2" FIP) fittings on both sides;
Hose Diameter: 3/4" ID (7/8" OD);
Length: 48";
Temperature: -40°F to 150°F;
Maximum Pressure: standard line pressure up to 1/2 PSI;
Flow Capacity for Natural Gas (Straight Length): 215,000 BTU/hr;
Flow Capacity for LPG/Propan (Straight Length): 344,000 BTU/hr.

Product Specs
Connection Size:	3/4"
Connection Type	MIP
ID:	3/4"
Length	48"
LP Capacity (BTU):	344000
Material1	Coated Stainless Steel
NG Capcacity (BTU):	215000
OD1	7/8"

Views: 6989
Model: CSSB11-48
MPN: CSSB11-48
Availability: Discontinued
Usually ships: Upon availability
