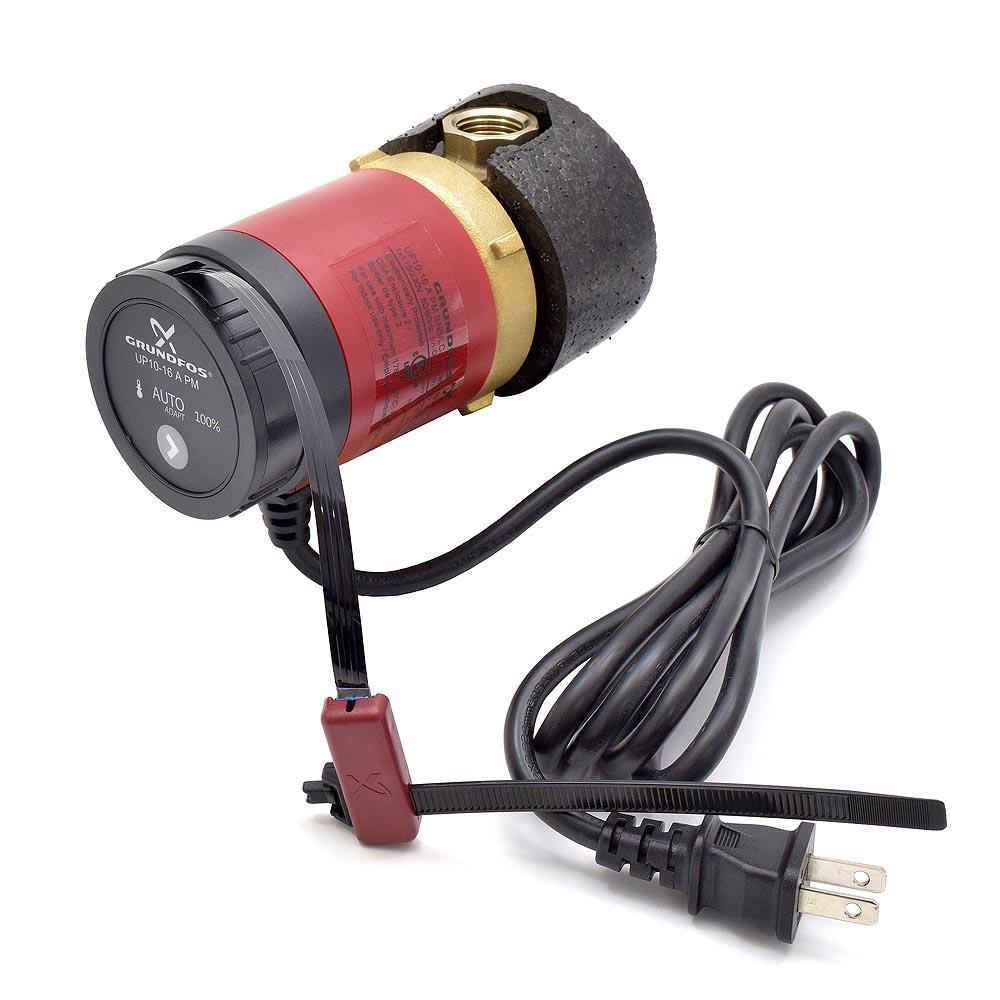

98420223 Grundfos UP10-16 APMBN5 Pump, 1/2" FNPT Sweat, 115V, AUTOAdapt & Line Cord

Click Image for Gallery

The 98420223 from Grundfos is a UP10-16 Comfort Pump, 115V, w/ 1/2” FNPT, AUTOAdapt & Line Cord. It's designed for recirculation of domestic hot water in single-family homes with dedicated hot-water return piping. Utilizing a low-noise permanent magnet motor, energy consumption is reduced to as little as 5 - 8.5 W. Selecting the Auto mode ensures that the pump runs only when required. The result is maximum comfort - no waiting for hot water plus decreased water and power consumption.

Features:

Easy installation;
Minimize water waste;
Lower energy consumption;
Learns and adapts to homeowner’s water temperature needs.

Technical Specifications:

Connection: 1/2” FNPT;
Flow Range: 0-2.2 GPM (0-0.5 m³/h);
Head Range: 0-3.9 ft (0-1.2 m);
Phase: 1;
Housing: EcoBrass;
Maximum Liquid Temperature: 185°F (85°C);
Minimum Liquid Temperature: 36° (2°C);
Maximum System Pressure: 145 psi (10 bar);
Voltage: 115/208-230V;
Amperage: 0.23 Amps;
Power: 5-8.5 Watts.

Product Specs
Connections	Female NPT
Head Range (ft.):	0-5.4
Includes:	Line Cord
Material1	Bronze
Max Flow (GPM):	2.2
Max Head (Ft):	3.9
Max Pressure (PSI):	145
Size1	1/2"
Temperature Range (F):	36°F to 203°F
Type:	Pump
Voltage	115v

Views: 10244
Model: 98420223
MPN: 98420223
Availability: Discontinued
Usually ships: 1
