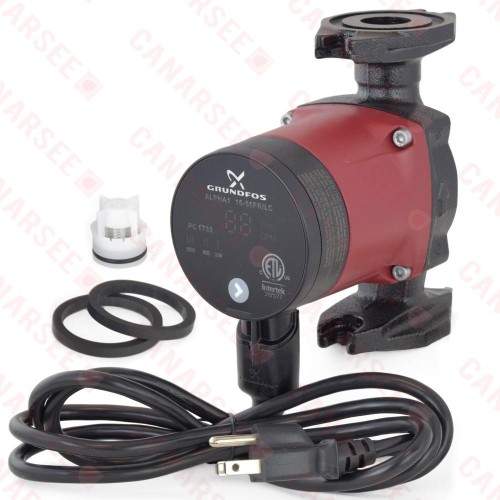

Alpha1 15-55FR/LC Variable Speed Circulator Pump w/ IFC, Line Cord, 1/16 HP, 115V

Click Image for Gallery

The 99287244 from Grundfos is a Alpha1 15-55FR/LC Variable Speed Circulator Pump w/ IFC, Line Cord, 1/16HP, 115V. This pump is for closed-loop applications such as baseboard, radiant floor heating, snow melt and others.

Cross-reference:
Grundfos: UP15-10F, UP15-42F, UPS15-42F, UPS15-58FC;
Taco: 005-F2-3, 006-F7, 007-F5-5, 008-F6-1, 008-F6-3, 00R-F6-1, 00R-MSF, 0015-MSF3-1, 007e, 0015e;
B&G: NRF-9F/LW, NRF-22, NRF-25, NRF-9F/LW, Ecocirc 19-14 vario, Ecocirc 19-14 auto;
Armstromg: Astro 20, Astro 25, Astro 30, Astro 230CI-R, Astro 250CI-R, Compass 20-20;
WILO: Star S 16FX, Star S 21FX, Star S 21RFC, Stratos ECO 16 RFC;

Features:

Push button selects one of (3) constant pressure settings;
Ideal for residential hydronic or radiant heating;
Replaces over (30) circulator models;
Ultra-efficient, requires a fraction of power used by regular circulators;
Large LED display;
Integrated (removable) check-valve and nut captures for flanges;
Highest torque rating and most powerful start feature in its class of circulators;
Magnetic drive motor with ECM technology, ceramic shaft and stainless steel bearing plate;
Rotated flange accepts Grundfos GF15/26 and other brand flanges;
Made in the USA.

Technical Specifications:

Circulator type: Variable Speed;
Voltage: 115V;
Amperage: 0.65A;
Hertz: 60 Hz;
Phase: 1;
Watts: 5-45 W;
Wiring: Line Cord w/ 3-Prong Plug;
Temperature Range: 36°F to 230°F;
Max Pressure: 150 PSI;
Flow Range: 0 - 21 GPM;
Head Range: 0 - 19 Ft of head;
Material: Cast Iron;
Noise level: 19.2 dB(A);
Application: Heating only (closed-loop).

Warranty:

30 months from date of installation

Product Specs
Amperage:	0.65A
Application	Heating only (closed-loop).
Circulator type:	Variable Speed
Flow Range:	0 - 21 GPM
Head Range:	0 - 19 Ft of head
Hertz:	60 Hz
Material1	Cast Iron
Max Pressure:	150 PSI
Noise level:	19.2 dB(A)
Phase:	1
Temperature Range	36°F to 230°F
Voltage	115V
Watts:	5-45 W
Wiring:	Line Cord w/ 3-Prong Plug

Views: 7073
Model: 99287244
MPN: 99287244
Availability: Discontinued
Usually ships: Upon availability
