UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V

UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V
Click Image for Gallery
UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V
UP15-18BUC5 Bronze Circulator Pump w/ IFC, 1/2” Sweat (Union), 1/25 HP, 115V QR Code
QR Views: 11393 Model: 59896123
UPC: 632514000230

MPN: 59896123

Availability:4

Weight:6.00 lb

Dimensions (L x W x H ): 8.00 x 6.00 x 7.00

Usually ships: 1 business days
$325.95
Qty: Add to Cart
Add to Wish List Add to Compare

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

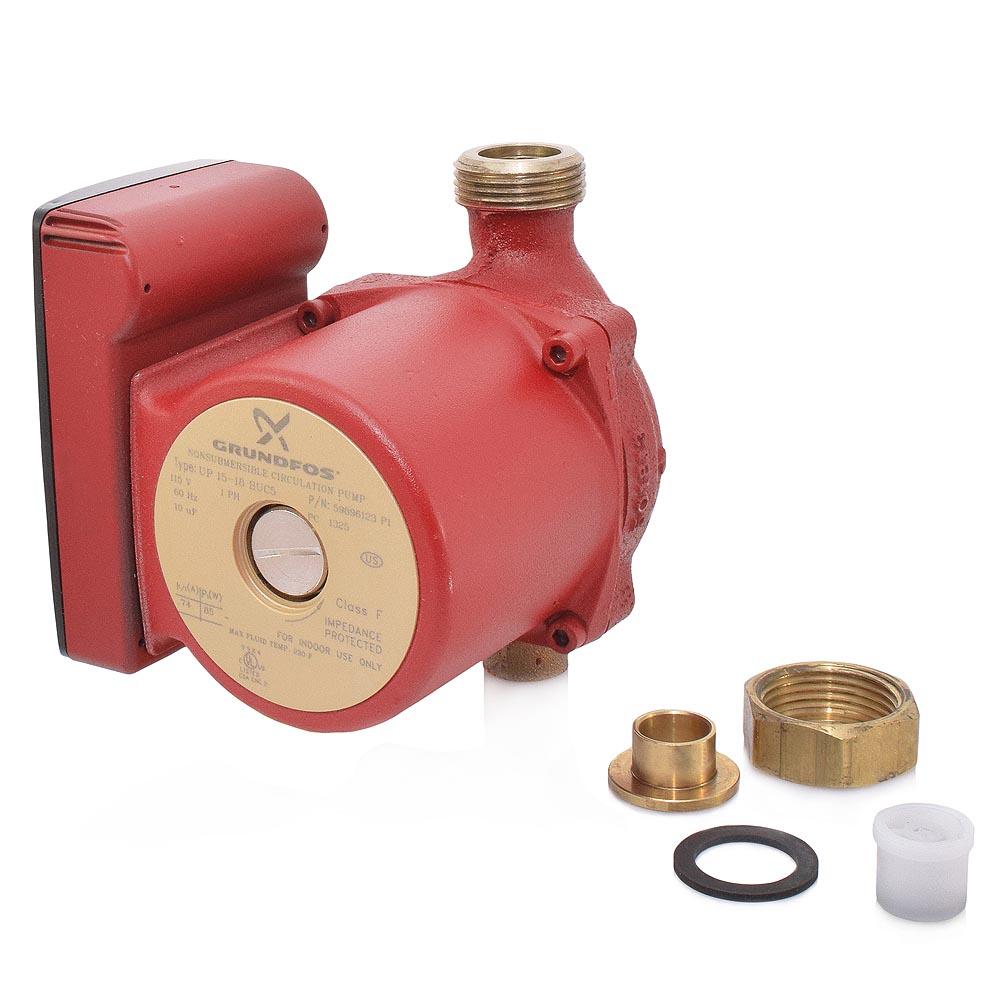

The 59896123 from Grundfos is s UP15-18BUC5 1/25HP Bronze Circulator Pump w/ 1/2” Sweat inlet and 1/2” sweat union outlet with built-in check valve. This pump works well in domestic hot water recirculation, radiant heating, solar, and many others. Due to its bronze pump house, this item suffers from less corrosion thus having a longer circulator life.

Features:

  • Ceramic shaft and radial bearings;
  • Carbon axial bearing;
  • Stainless steel rotor can and bearing plate;
  • Corrosion-resistant impeller, Composite, PES;
  • Bronze pump housing;
  • Integral Check Valve;


Technical Specifications:

  • Speed Number: 1;
  • Max flow: 14.5 US gpm;
  • Head max: 14.4 ft;
  • Liquid temperature range: 35.6 .. 230 F;
  • Maximum operating pressure: 145 psi;
  • Approvals on nameplate: UL, CSA;
  • Pump housing: Bronze;
  • Pump housing: DIN W.-Nr. 2.1176.01;
  • Impeller: Composite, PES;
  • Maximum ambient temperature: 104 F;
  • Ambient max at 176 F liquid: 176 F;
  • Maximum operating pressure: 145 psi;
  • Flange standard: USA Sweat;
  • Type of connection: Bronze Sweat;
  • Pipe connection: 1/2" Sweat;
  • Pressure stage: 10;
  • Port-to-port length: 6 1/2";
  • Number of poles: 2;
  • Max. power input: 60 W;
  • Rated power - P2: 0.04 HP;
  • Main frequency: 60 Hz;
  • Voltage: 115V;
  • Current in speed 3: 0.55 A;
  • Capacitor size - run: 8mF/180 V;
  • Insulation class (IEC 85): F;
  • Gross weight: 7.25 lb;


Manufacturer's warranty:

  • 2 years from date of installation.
Product Specs
Connection Size: 1/2"
Connection Type: Sweat
Frequency: 60 Hz
Horse Power: 1/25
Material: Bronze
Max Flow (GPM): 14.5
Max Head (Ft): 14.4
Max Pressure (PSI): 145
Mount: In-Line
Phase: 1
Speeds: 1
Type: 1-Speed Pump
Voltage: 115v
