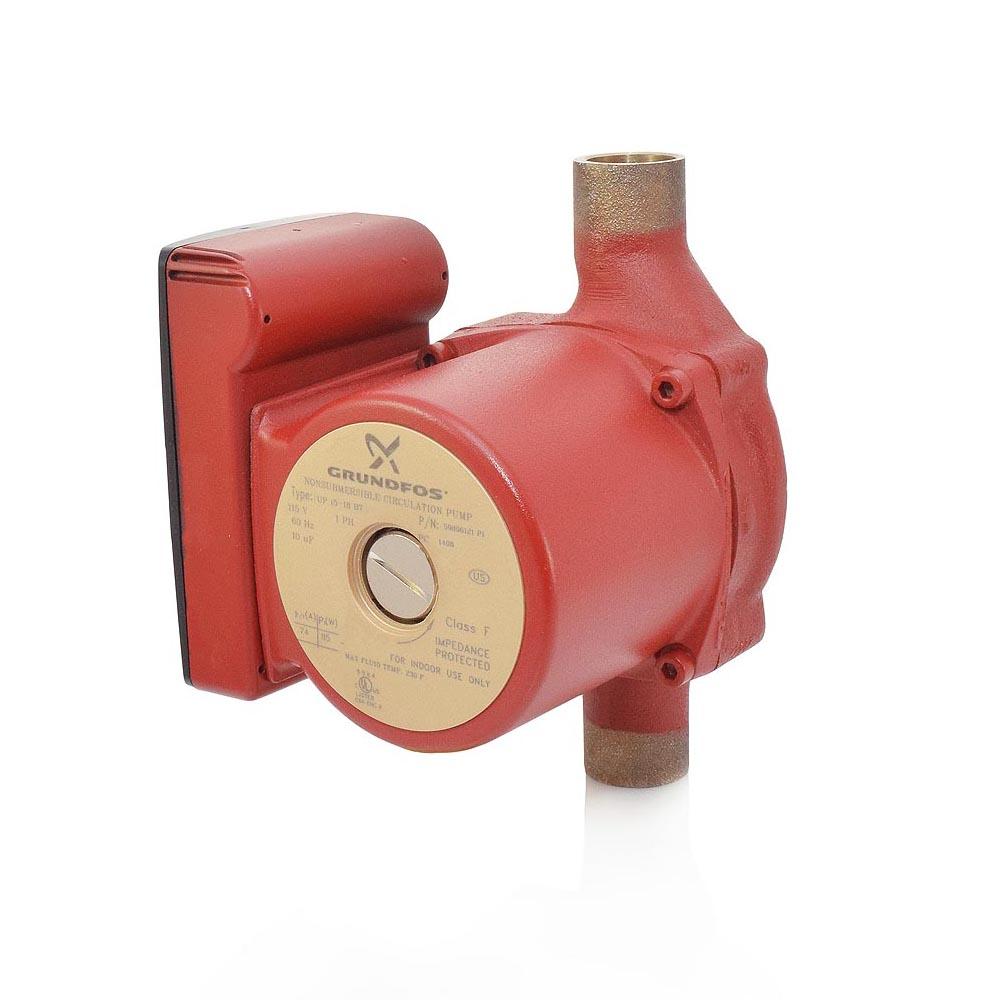

UP15-18B7 Bronze Circulator Pump, 3/4” Sweat, 1/25HP, 115V

Click Image for Gallery

UP15-18B7 Bronze Circulator Pump, 3/4” Sweat, 1/25HP, 115V QR Code

QR Views: 9736

Model: 59896121
UPC: 632514000216

MPN: 59896121

Availability:16

Weight:6.00 lb

Dimensions (L x W x H ): 8.00 x 6.00 x 7.00

Usually ships: 1 business days

$310.95

Qty: Add to Cart

Add to Wish List Add to Compare

0 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (0)

The 59896121 from Grundfos is a UP15-18B7 Bronze Circulator Pump with 3/4” Sweat connections, 1/25HP, single speed, 115V. This pump is mostly employed in hot water recirculation, chilled water cooling, solar heating, radiant heating, and other types of closed or open loop heating systems. Due to its bronze pump house, this item suffers from less corrosion thus having a longer circulator life.

Technical Specifications:

Voltage: 115V;
Amperage: 0.74 Amps;
Hertz: 60 Hz;
Phase: 1;
Watts: 85W;
Max Pressure: 145 psi;
Max Temperature: 230F;
Min Temperature: 36F;
Flow Range: 0-14.7 GPM;
Head Range: 0-13.9 ft;
Horse Power: 1/25HP;
Body: Bronze;
Connections: 3/4" Sweat;

Warranty:

2 years from date of installation.

Product Specs
Amperage:	0.74
Application:	Heating
Connection Size:	3/4"
Connection Type:	Sweat
Flow Range (GPM):	0-14.7
Head Range (ft.):	0-14
Hertz:	60
Horse Power:	1/25
Material:	Bronze
Max Flow (GPM):	14.7
Max Head (Ft):	14
Max Pressure (PSI):	145
Phase:	1
Temperature Range (F):	36°-230°F
Type:	1-Speed Pump
Voltage:	115v
