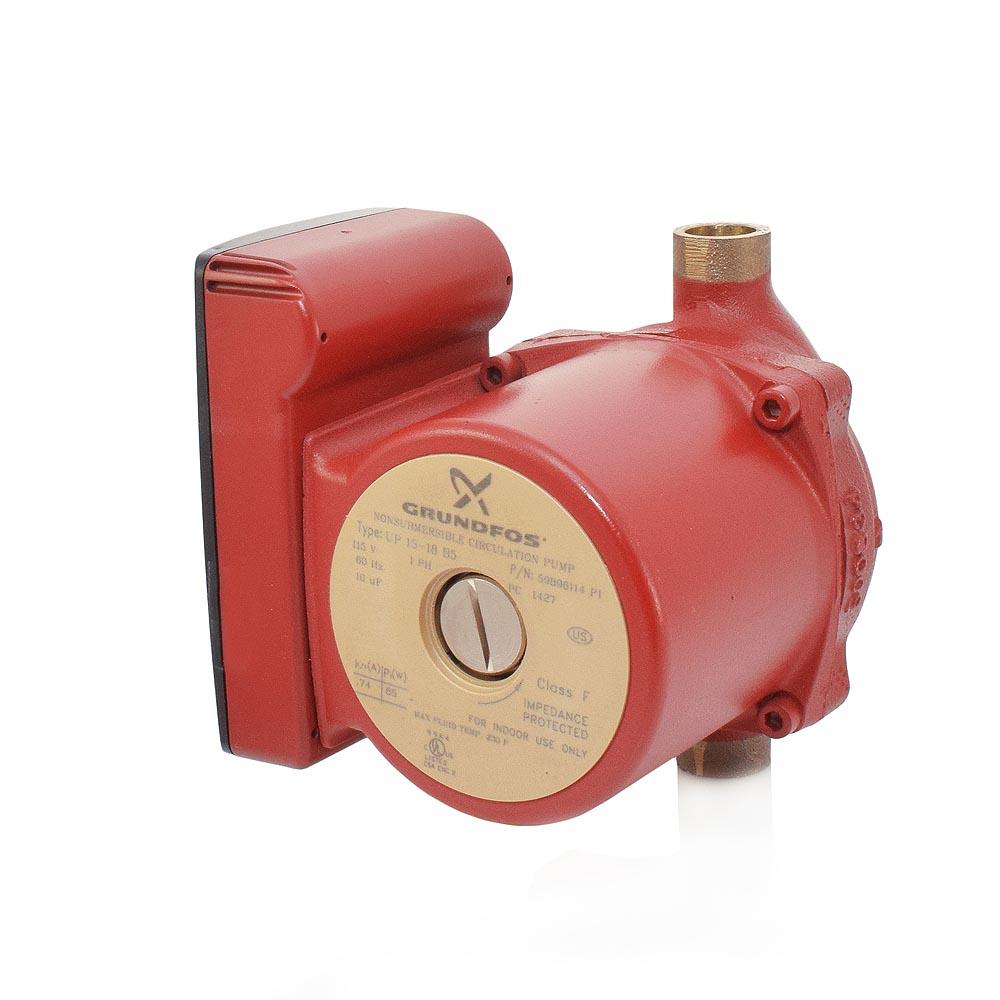

Grundfos 59896114 Bronze Circulator Pump, 1/2" Sweat, 1/25HP, 115V

Click Image for Gallery

The 59896114 from Grundfos is a UP15-18B5 Circulator Pump, 1/25HP, 115V, 1/2” Sweat. It's a single-speed model with bronze housing. This pump is well suited for hot water recirculation as well as other open system types, including radiant, solar, fan coils, storage tanks, etc.

Technical Specifications:

Voltage: 115V;
Amperage: 0.74 Amps;
Hertz: 60 Hz;
Phase: 1;
Watts: 85W;
Max Pressure: 145 psi;
Max Temperature: 230F;
Min Temperature: 36F;
Flow Range: 0-14.7 GPM;
Head Range: 0-13.9 ft;
Horse Power: 1/25HP;
Body: Bronze;
Connections: 1/2" Sweat;

Manufacturer's warranty:

2 years from date of installation.

Product Specs
Amperage:	0.74
Application	Heating
Connection Size:	1/2"
Connection Type	Sweat
Flow Range (GPM):	0-14.7
Head Range (ft.):	0-14
Hertz:	60
Horse Power	1/25
Material1	Bronze
Max Flow (GPM):	14.7
Max Head (Ft):	14
Max Pressure (PSI):	145
Phase:	1
Temperature Range (F):	36°-230°F
Type:	1-Speed Pump
Voltage	115v
