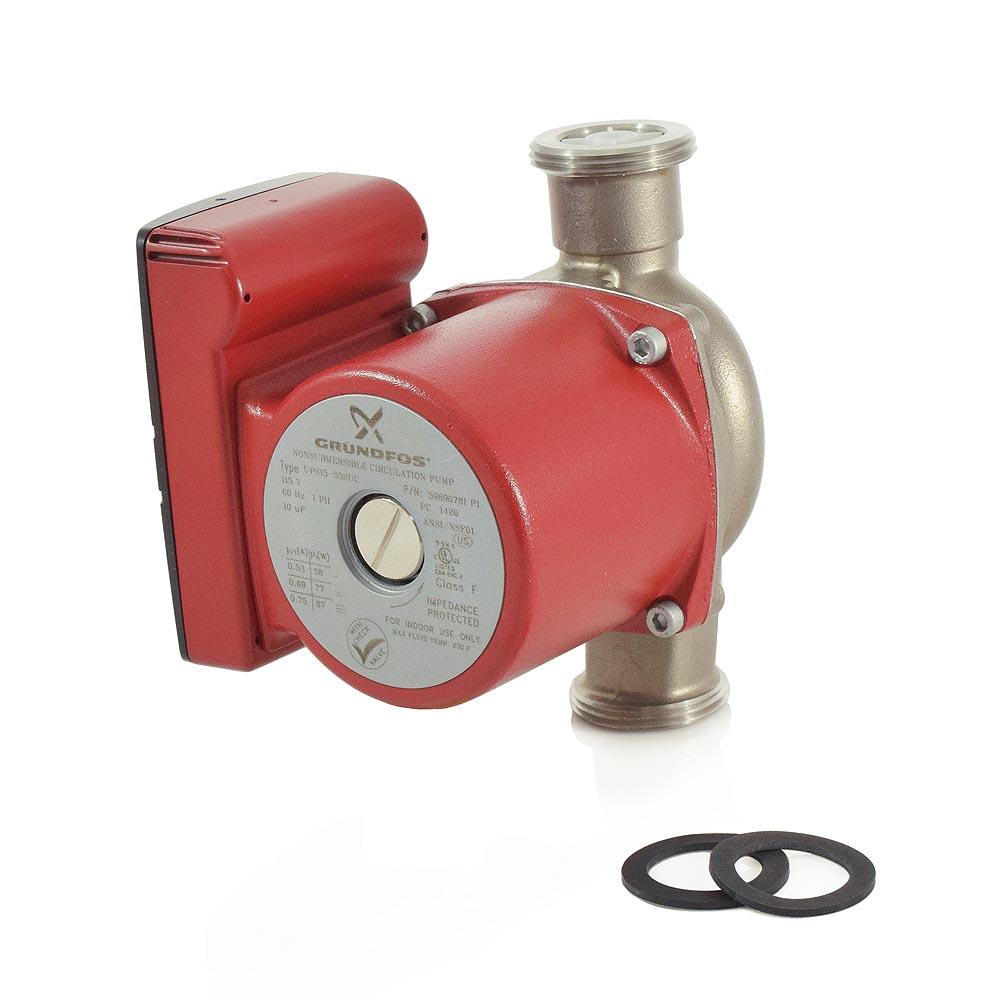

UPS15-55SUC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4” Union, 1/8 HP, 115V

Click Image for Gallery

UPS15-55SUC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4” Union, 1/8 HP, 115V QR Code

QR Views: 6701

Model: 59896781
UPC: 570083742812

MPN: 59896781

Availability:16

Weight:6.00 lb

Dimensions (L x W x H ): 8.00 x 6.00 x 7.00

Usually ships: 1 business days

$529.95

Qty: Add to Cart

Add to Wish List Add to Compare

0 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (0)

The 59896781 from Grundfos is a UPS15-55SUC 3-Speed Stainless Steel Circulator Pump, 1/8HP with removable Integral Check Valve and GU125 union connections (1-1/4"). Both stainless steel housing and 3 speeds of the Grundfos UPS15-55SUC model make it suitable for a wide range of applications such as radiant heating, solar, domestic water recirculation, storage tanks, chilled water cooling and many others.

Features:

Ceramic shaft and radial bearings;
Carbon axial bearing;
Stainless steel rotor can and bearing plate;
Corrosion-resistant impeller, Composite, PES;
Stainless steelpump housing;
Check valve;
Union connection;

Technical Specifications:

Speed Number: 3;
Max flow: 25.1 US gpm;
Head max: 18 ft;
Liquid temperature range: 35.6 .. 230 F;
Maximum operating pressure: 145 psi;
Approvals on nameplate: UL, CSA;
Pump housing: Stainless steel;
Pump housing: DIN W.-Nr. 1.4301;
Pump housing: AISI 304;
Impeller: Composite, PES;
Maximum ambient temperature: 104 F;
Ambient max at 176 F liquid: 176 F;
Maximum operating pressure: 145 psi;
Flange standard: USA Threaded;
Type of connection: S.S. Union;
Pipe connection: 1 1/4" NPSM (GU125 Union);
Pressure stage: 10;
Port-to-port length: 5.87";
Number of poles: 2;
Power input in speed 1: 56 W;
Power input in speed 2: 74 W;
Max. power input: 87 W;
Rated power in speed 1: 1/8HP;
Rated power in speed 2: 1/10HP;
Rated power in speed 3: 1/12HP;
Main frequency: 60 Hz;
Voltage: 115V;
Current in speed 1: 0.31 A;
Current in speed 2: 0.66 A;
Current in speed 3: 0.69 A;
Capacitor size - run: 10 mF/180 V;
Insulation class (IEC 85): F;
Gross weight: 5.4 lb;

Manufacturer's warranty:

2 years from date of installation.

Product Specs
Application:	Heating
Connection Size:	1-1/4"
Connection Type:	Union
Flow Range (GPM):	0-25
Head Range (ft.):	0-18
Hertz:	60
Material:	Stainless Steel
Max Flow (GPM):	25
Max Head (Ft):	18
Max Pressure (PSI):	145
Phase:	1
Temperature Range (F):	36°-230°F
Type:	3-Speed Pump
Voltage:	115v
