Grundfos 59896877 15-55F Circulator Pump w/ IFC, 1/16HP, 115V

Grundfos 59896877 15-55F Circulator Pump w/ IFC, 1/16HP, 115V
Grundfos 59896877 15-55F Circulator Pump w/ IFC, 1/16HP, 115V QR Code
QR
Views: 4921 Model: 59896877
UPC: 571062016437

MPN: 59896877

Weight:7.00 lb

Dimensions (L x W x H ): 9.00 x 9.00 x 7.00

Usually ships: Upon availability
$169.95
Qty: Add to Cart

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

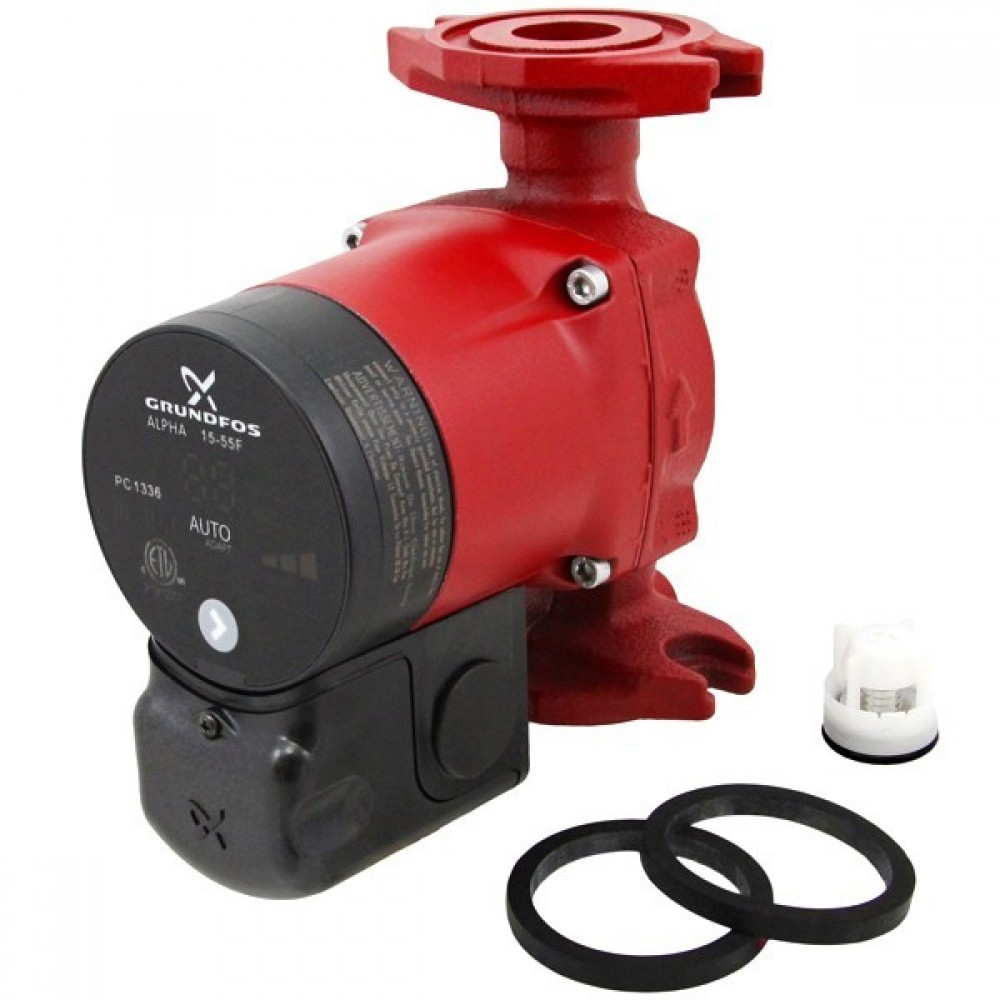

Grundfos Alpha 15-55FC Circulator Pump 59896877 has Cast Iron housing and terminal box for conduit connection applications. The energy efficient Grundfos Alpha Pump has permanent magnet motor and reduces power consumption by 50% or more.


Features:

  • Terminal box for conduit connection applications;
  • Large display shows current energy consumption in Watts;
  • Large display shows estimated flow in gallons per minute;
  • Integrated check-valve (optional);
  • The Unique Featu res of the Grundfos ALPHA;
  • Nut capture;
  • Compact design;
  • Cast Iron pump housing;
  • A one button, easyto-use interface;

Technical Specifications:

  • Flow Range: 0 to 21 GPM;
  • Head Range: 0 to 19 Feet;
  • Motor: 1x115V;
  • Min. Fluid Temperature: 36F;
  • Max. Fluid Temperature: 230F;
  • Max. Working Pressure: 150 PSI;
  • Watts: 5-45W;
  • Amps: 0.65A;

Warranty:

3 years from date of manufacture.
Product Specs
Amperage: 0.65
Application: Heating
Connection Size: 3/4"
Connection Type: Flanged
Flow Range (GPM): 0-21
Head Range (ft.): 0-19
Hertz: 60
Material: Cast Iron
Max Flow (GPM): 21
Max Head (Ft): 19
Max Pressure (PSI): 150
Phase: 1
Temperature Range (F): 36°-230°F
Type: Variable Speed Pump
Voltage: 115v
