UPS26-99BF Stainless Steel Circulator Pump, 1/6 HP, 115V

UPS26-99BF Stainless Steel Circulator Pump, 1/6 HP, 115V
UPS26-99BF Stainless Steel Circulator Pump, 1/6 HP, 115V QR Code
QR-Code
Product Code: 98961762

MPN: 98961762

Availability:13

Weight:0.20 lb

Usually ships: 1 business days
$417.95
2 or more $396.95

* Country:
* State:
* ZIP:
Qty: Add to Cart

Have any questions?
Contact us at 1-800-246-9552

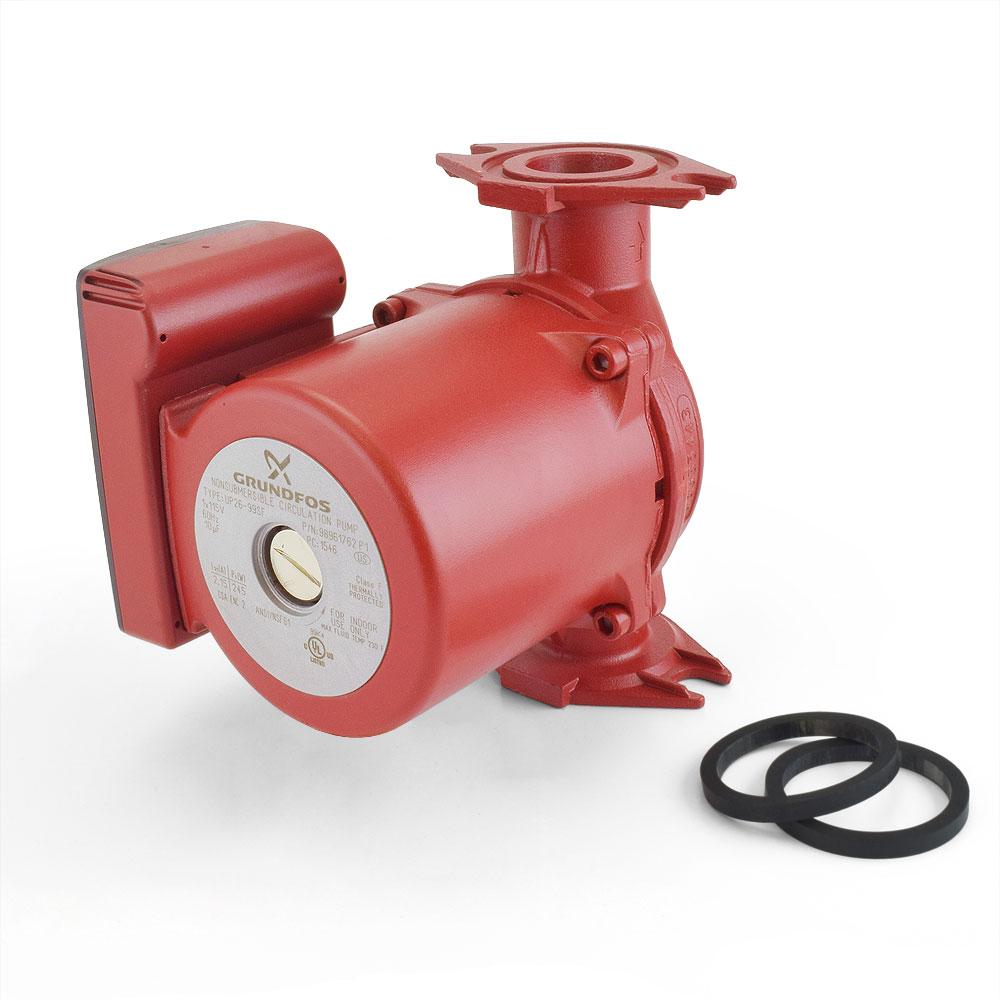

The 98961762 from Grundfos is a UP26-99SF circulator pump. It incorporates stainless Steel pump housing for enhanced corrosion resistance and is designed for use in heating, hot water recirculation (domestic), solar applications, chilled water cooling and many others. Grundfos UP26-99SF model is a single speed circulator and high head / high flow parameters, making it ideal for residential projects of all sizes and smaller commercial applications.


Features:

  • Built-in motor protection for longer life and better performance.
  • Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types.
  • Whisper-quiet operation for sound sensitive installations.
  • Stainless Steel body.
  • Includes (2) Gaskets (O-rings).
  • cULus listed.

Technical Specifications:

  • Voltage: 115V;
  • Amperage: 2.15 Amps;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Watts: 245W;
  • Max Pressure: 145 psi;
  • Max Temperature: 230°F;
  • Min Temperature: 36°F;
  • Flow Range: 0-34 GPM;
  • Head Range: 0-32 ft;
  • Horse Power: 1/6HP;
  • Body: Stainless Steel;
  • Connections: Flanged 1/2", 3/4", 1", 1-1/4";
  • Approvals: ANSI/NSF61.
Product Specs
Amperage:2.15
Application:Heating
Connection Size:3/4"
Connection Type:Flanged
Flow Range (GPM):0-34
Head Range (ft.):0-32
Hertz:60
Horse Power:1/6
Material:Stainless Steel
Max Flow (GPM):34
Max Head (Ft):32
Max Pressure (PSI):145
Phase:1
RPM:3000
Temperature Range (F):36°-230°F
Type:1-Speed Pump
Voltage:115v
