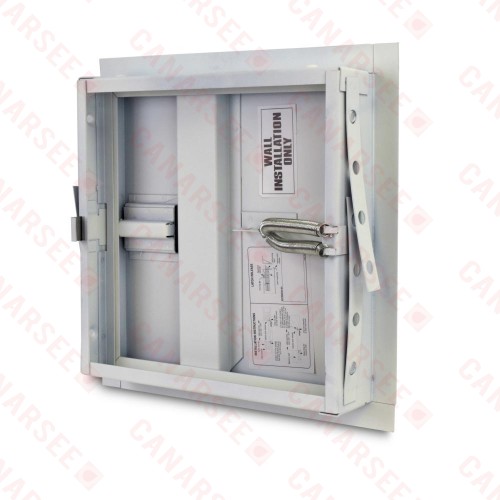

12" x 12" Steel Fire Rated Access Door

12" x 12" Steel Fire Rated Access Door
(Disc)12"X 12" Fire Rated..

Technical Specifications:
  • Fire rating: UL (USA) 1.5 hours ("B" label); ULC (Canada): 2 hours
  • Door and frame material: 16 gauge galvanized steel
  • Door finish: prime coat suitable for painting
  • Installation: Walls only
  • Nominal door size (W x H): 12" x 12"
  • Overall size (W x H): 14" x 14"
  • Mounting Depth: 2-1/2"
  • Rough Opening (W x H): 12-3/8" x 12-3/8"


Features:
  • Self-closing, with heavy duty spring which assures positive latch
  • UL rated for 1-1/2 hours ("B" Label) to ANSI-UL 10B in USA, and for 2 hours to CAN/ULC S104 in Canada - Wall Installations Only
  • Concealed stainless steel pin hinge
  • Recessed exterior latch is operated using a ring attached to the sliding bolt
  • Frame is equipped with holes for both masonry anchors and screws/bolts, to facilitate installation in all types of wall construction
  • Prime coated for easy paint application
Product Specs
Access door size 12" x 12"
