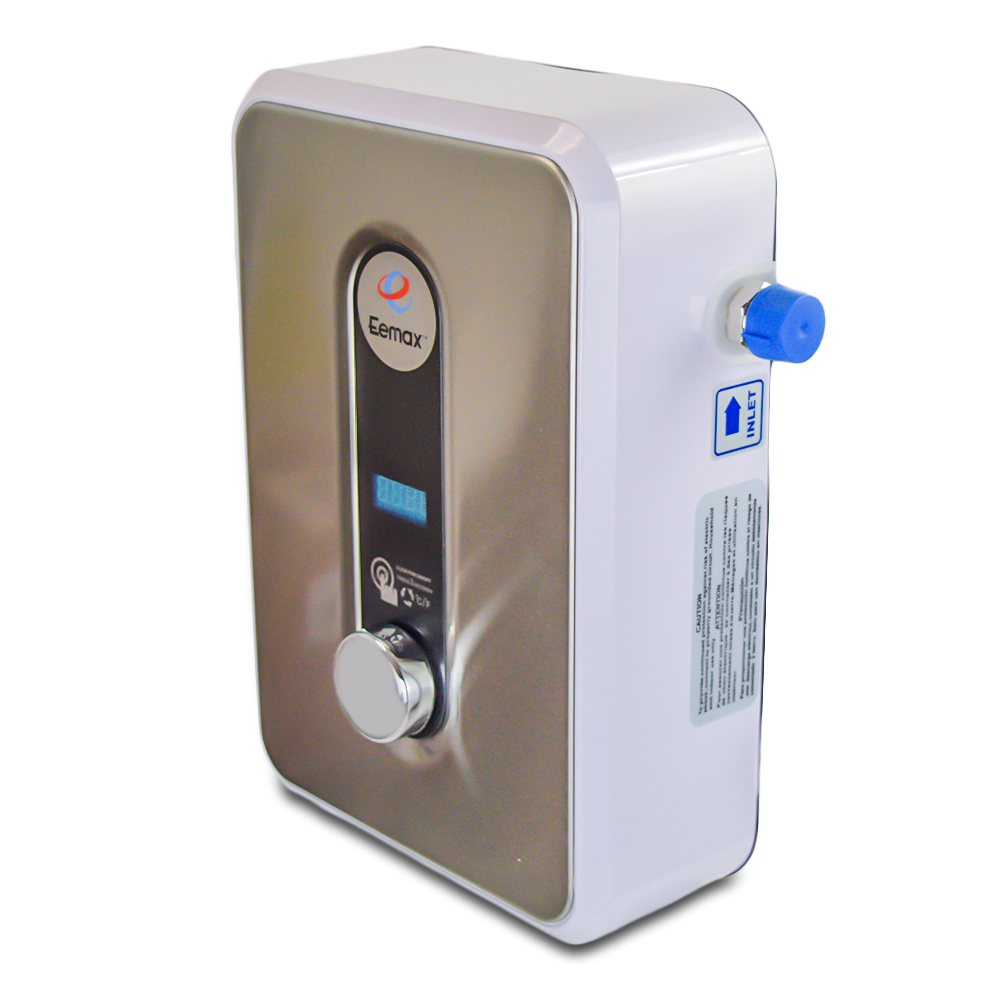

EeMax HA013240, HomeAdvantage II Electric Tankless Water Heater, 13.0 kW, 240V/208V

EeMax HA013240, HomeAdvantage II Electric Tankless Water Heater, 13.0 kW, 240V/208V

Features:

  • Electric tankless technology offers endless hot water on demand
  • Compact, quick and easy to install with virtually no maintenance needed
  • Hand-welded, factory-tested, replaceable copper immersion heating elements with brass adapters offers better durability than competition
  • External adjustable outlet hot water temperature control with digital readout in F/C
  • Lead-Free compliant, meets ANSI/NSF 372
  • ETL listed for US and Canada



Technical Specifications:

  • Voltage: 240V or 208V (at 25% reduced output) - hardwired
  • Output: 13.0 kW at 240V (10.1 kW at 208V)
  • Amps: 54A (1 x 60) at 240V or 49A (1 x 60) at 208V
  • Recommended Wire Size: 6 AWG
  • Thermal Efficiency: 99%
  • Water Connections: 1/2" Male NPT or 5/8" OD compression (for regular 1/2" CTS copper pipe) - both types included
  • Min. Activation Flow Rate: 0.3 GPM
  • Max. Flow Rate: 4.8 GPM
  • Hot Water Temperature Control Range: 80°F - 140°F (at 1° increments)
  • Hot Water Temperature Accuracy: +/- 1°F at steady flow
  • Max. Inlet Water Temperature: 86°F
  • Hot Water Output Range (GPM at T° Rise) - 240V: 4.0 GPM @ 22°F / 3.0 GPM @ 30°F / 2.5 GPM @ 36°F / 2.0 GPM @ 44°F / 1.5 GPM @ 59°F / 1.0 GPM @ 89°F
  • Hot Water Output Range (GPM at T° Rise) - 208V: 4.0 GPM @ 17°F / 3.0 GPM @ 23°F / 2.5 GPM @ 28°F / 2.0 GPM @ 34°F / 1.5 GPM @ 46°F / 1.0 GPM @ 69°F
  • Operating Pressure Range (Min - Max): 35 - 150 psi
  • Dimensions (Height x Width x Depth): 11.5" x 8" x 3.75"
  • Weight: 7.0 lbs



Warranty:
5-year limited warranty on leaks, 1-year on parts

Product Specs
Output (kW): 13
Voltage 240/208
