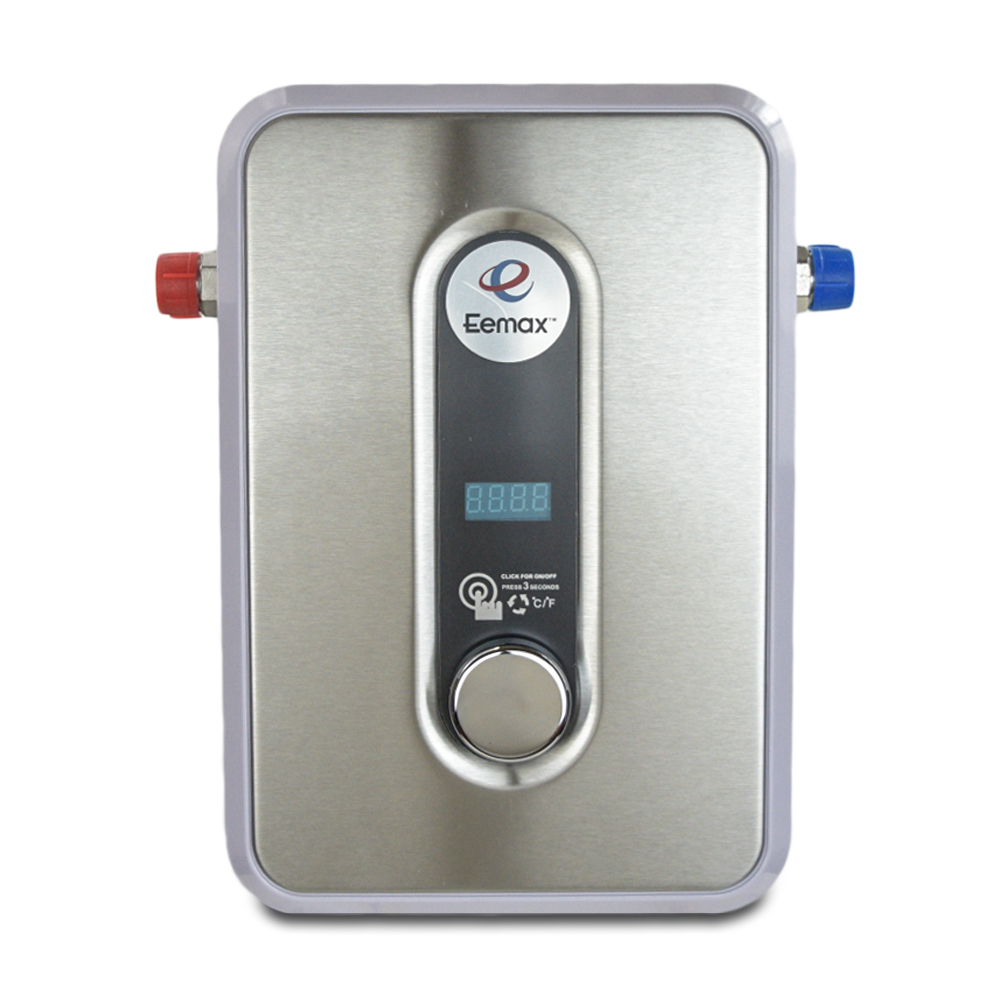

EeMax HA008240, HomeAdvantage II Electric Tankless Water Heater, 8.0 kW, 240V/208V

Click Image for Gallery

Features:

Electric tankless technology offers endless hot water on demand
Compact, quick and easy to install with virtually no maintenance needed
Hand-welded, factory-tested, replaceable copper immersion heating elements with brass adapters offers better durability than competition
External adjustable outlet hot water temperature control with digital readout in F/C
Lead-Free compliant, meets ANSI/NSF 372
ETL listed for US and Canada

Technical Specifications:

Voltage: 240V or 208V (at 25% reduced output) - hardwired
Output: 8.0 kW at 240V (5.8 kW at 208V)
Amps: 33A (1 x 40) at 240V or 28A at 208V
Recommended Wire Size: 8 AWG
Thermal Efficiency: 99%
Water Connections: 1/2" Male NPT or 5/8" OD compression (for regular 1/2" CTS copper pipe) - both types included
Min. Activation Flow Rate: 0.3 GPM
Max. Flow Rate: 4.8 GPM
Hot Water Temperature Control Range: 80°F - 140°F (at 1° increments)
Hot Water Temperature Accuracy: +/- 1°F at steady flow
Max. Inlet Water Temperature: 86°F
Hot Water Output Range (GPM at T° Rise) - 240V: 4.0 GPM @ 14°F / 3.0 GPM @ 18°F / 2.5 GPM @ 22°F / 2.0 GPM @ 27°F / 1.5 GPM @ 36°F / 1.0 GPM @ 55°F / 0.5 GPM @ 109°F
Hot Water Output Range (GPM at T° Rise) - 208V: 4.0 GPM @ 10°F / 3.0 GPM @ 13°F / 2.5 GPM @ 16°F / 2.0 GPM @ 20°F / 1.5 GPM @ 26°F / 1.0 GPM @ 40°F / 0.5 GPM @ 79°F
Operating Pressure Range (Min - Max): 35 - 150 psi
Dimensions (Height x Width x Depth): 11.5" x 8" x 3.75"
Weight: 4.75 lbs
