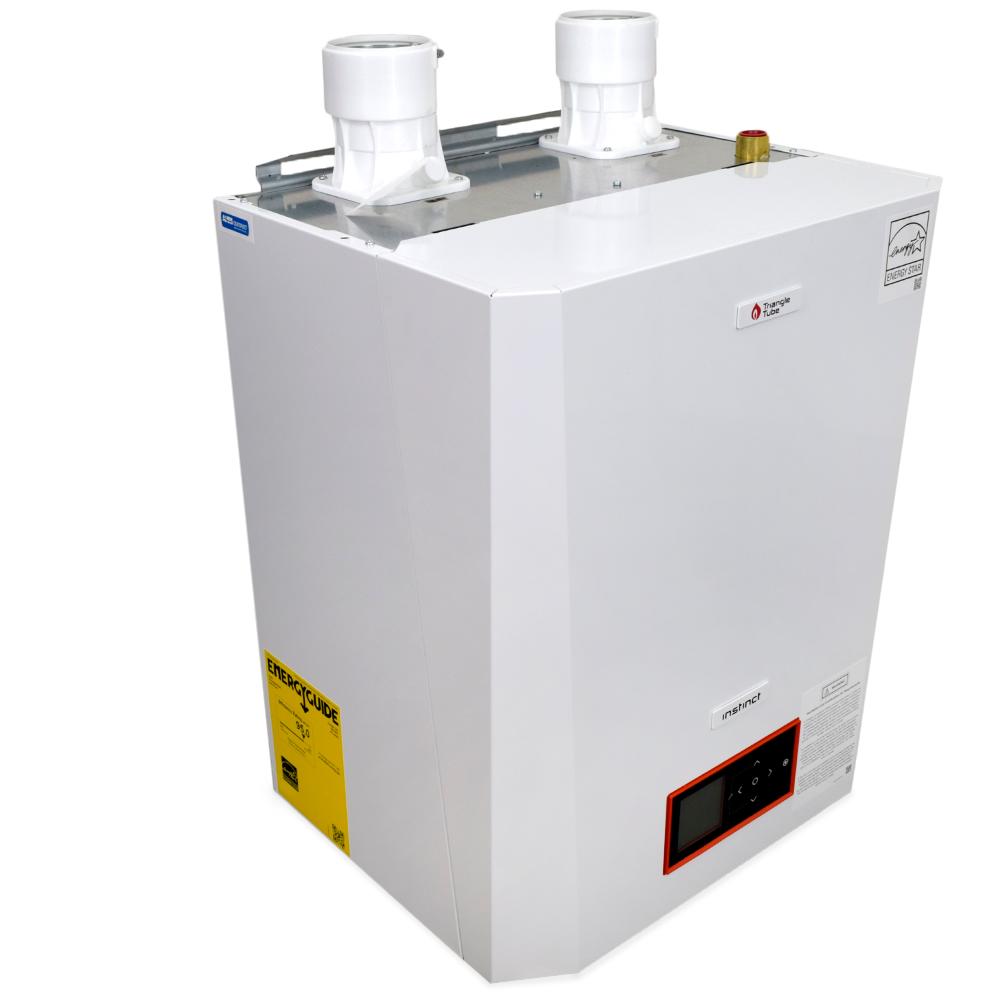

Triangle Tube Instinct Solo 155 Condensing Boiler (Heating Only), 123,000 BTU
Click Image for Gallery
Solo 155
Technical Specifications:
Features:
Technical Specifications:
- Input Modulation (BTU): 19,375 - 155,000
- DOE Rating (BTU): 142,000
- Net AHRI Rating (BTU): 123,000
- Efficiency (AFUE): 95%
- Turndown (Modulation) Ratio: 8 : 1
- Fuel Type: Natural Gas (NG) or Propane (LP)
- Boiler Connections: 1" NPT
- Gas Connection: 3/4" NPT
- Gas Supply Pressure: 5-13" WC (natural gas), 8-13" WC (propane)
- Max. Operating Pressure: 50 psi
- Vent/Air Size: 3"
- Vent Material: PVC, CPVC, PolyPropylene, St. Steel
- Power Supply: 120V, 60Hz
- Dimensions (Depth x Width x Height): 16-1/2" x 21-3/4" x 26"
- Weight (lbs): 95
- Water Volume (Gallons): 3
- Mounting Type: Wall-mounted (Wall-hung).
Features:
- Stainless steel heat exchanger
- Energy Star listed
- Cascade functionality (up to 6 boilers)
- Built-in freeze protection
- Compatible with PVC, CPVC, PP and Stainless Steel vent pipe
- Includes propane conversion kit
| Product Specs | |
| Net BTU Rating | 100,000 - 125,000 |
| Boiler Type | Heat-Only |
| Mounting Type | Wall-Hung |
| Vent Material | PP;PVC;CPVC;Cat III St. Steel |
| Venting Size | 3" |
- Views: 1834
-
- Model: INS155S
- MPN: INS155S
- Availability: In Stock
- Usually ships: Upon availability
- $ 2 210.95
