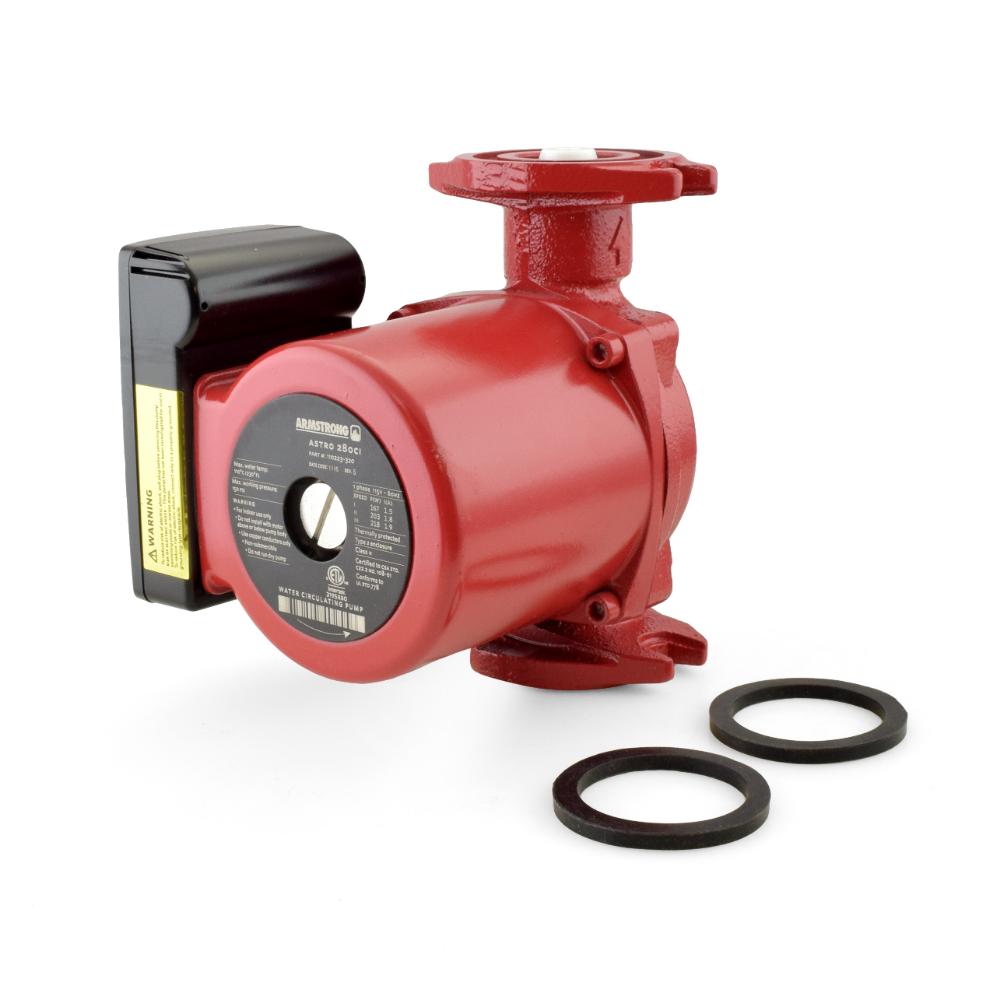

Astro 280CI 3-Speed Circulator Pump, 115V
Click Image for Gallery
The 110223-320 from Armstrong is a Astro 2 series, 280CI model, 115V, 3-speed flanged circulator designed for closed-loop heating applications. Low, Medium and High speeds cover a wide range of single and multi-zone applications in radiant floor heating, fan coils, radiator/baseboard and other systems. This model replaces Grundfos UPS 26-99FC, Taco 0011/0013/0014 series, Wilo Star 30F and B&G NRF-36/45.
Features:
- Designed for use in closed-loop heating applications - hydronic, baseboards, radiant floor heat, etc.;
- e-Coating on the inside of the pump provides an enhanced corrosion protection for longer pump life and less debris in the system;
- Large wiring box and convenient plug-in terminal strip;
- 3-Speed functionality;
- cETLus listed;
- Standard flange (2-1/2" OC holes), compatible with other brand flanges & isolation valves.
Technical Specifications:
- Electrical: 115V, 60Hz, 1 Phase;
- Nominal Power: 218 Watts;
- Amp Draw: 1.50A @ Spd 1; 1.80A @ Spd 2; 1.90A @Spd 3;
- Max. fluid temperature: 230°F;
- Max. ambient temperature: 104°F;
- Max. operating pressure: 150 psi;
- Max flow: 32 GPM;
- Max. head: 31 ft;
- Body material: Cast Iron;
- Component materials: Noryl impeller, ceramix shaft & bearings, EPDM gasket;
- System connections: standard flange;
- Circulator flange-to-flange dimensions (height): 6.5" (6-1/2").
Warranty:
- 5 years manufacturer's warranty.
| Product Specs | |
| Connections | Flanged |
| Material1 | Cast Iron |
| Max. Flow | 20-30 GPM |
| Max. Head | 20-30 ft |
- Views: 7236
-
- Model: 110223-320
- MPN: 110223-320
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 459.95
