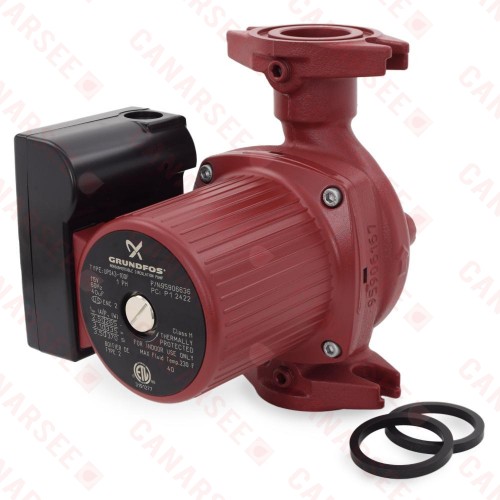

UPS43-100F 3-Speed Cast Iron Circulator Pump, 115V
Click Image for Gallery
Grundfos UPS43-100F is a 115V cast iron 3-speed circulator pump with GF40/43 connections for closed-loop heating and cooling applications.
Technical Specifications:
Features:
Technical Specifications:
- Casing: Cast Iron
- Circulator Pump Type: 3-Speed
- Connections: Flanged (GF40/43)
- Circulator Height (Flange to Flange): 8-9/16"
- Electical Specs: 115V, 60 Hz, 370W max, 3.5 Amps max; 180V Capacitor
- Head Range: 0-31 ft
- Flow Range: 0-65 GPM
- Operating Temperature Range: 36°F - 230°F
- Max Operating Pressure: 145 psi
- Sound Pressure Level: 40 dB
- Dimensions (Depth x Width x Height): 6.69" x 5.57" x 8.50"
- Weight (lbs): 17.55 lbs
Features:
- 3-speed switch (Lo/Med/Hi) provides versatility for various applications
- Whisper-quiet and maintenace-free operation
- Quick connectivity to terminals for easy installation
- Power LED indicator
- Lubricated bearings
- Suitable for up to pumping up to 50/50 glycol & water mix solution
- Impeller, bearing plate,and rotor are made of stainless steel
- Made in the USA
- cETLus Listed
- Views: 126
-
- Model: UPS43-100F
- MPN: 95906636
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 395.95
