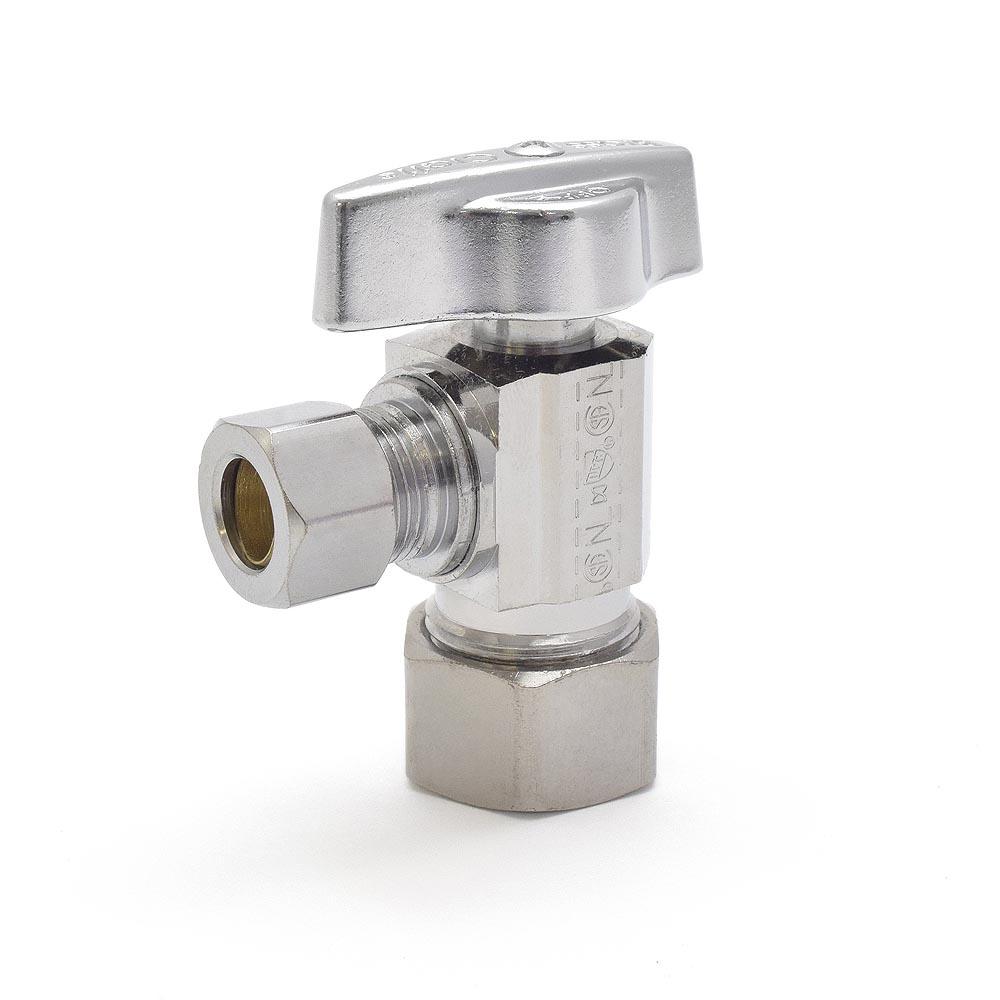

5/8” OD Compression x 3/8” OD Compression Angle Stop Valve (1/4-Turn), Lead-Free

Click Image for Gallery

The KTCR19X-C from BrassCraft is a 5/8” OD Compression x 3/8” OD Compression Angle Stop Valve (1/4-Turn), Lead-Free. It can be used for recirculating water in systems that produce continuous use temperatures above 115°F.

Materials of Construction:

Valve Body: Compliant brass;
Stem: Compliant brass, plated;
Seats: PTFE;
Ball: Compliant brass, precision machined;
Stem O-ring: Viton & Nitrile;
Handle: Zinc die cast;
Handle Screw: Zinc-plated steel;
Compression Sleeve: C36000 brass;
Compression Nut: C36000 brass.

Features:

Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use;
TWO high-performance o-rings withstand high temperatures and corrosion from harsh water environments;
Machined one-piece brass body provides strength, durability and long-lasting performance;
Blow-out proof brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance;
Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use;
Patented, chrome plated metal handle is designed for durability, corrosion resistance & a sleek appearance;
Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins;
100% leak tested;
Compliant KT Stops available for California and Vermont “low-lead” requirements.

Technical Specifications:

Closing: 1/4 Turn;
Inlet: 5/8” OD (1/2” Nominal) Compression;
Outlet: 3/8” OD (1/4"" Nominal) Compression;
Valve Type: Angle;
Temperature: 40°F to 180°F;
Maximum Pressure: 125 PSI.

Product Specs
Closing:	1/4 Turn
Features	Lead Free
Inlet:	5/8” OD (1/2” Nominal) Compression
Maximum pressure:	125 PSI.
Outlet:	3/8” OD (1/4"" Nominal) Compression
Size1	5/8" x 3/8"
Temperature	40°F to 180°F
Valve Type	Angle
