1/2 ID (5/8" OD) ProCoat Coated Stainless Steel Gas Connector w/ 3/4" MIP Fittings (36" Length)"

1/2 ID (5/8" OD) ProCoat Coated Stainless Steel Gas Connector w/ 3/4" MIP Fittings (36" Length)"
1/2 ID (5/8" OD) ProCoat Coated Stainless Steel Gas Connector w/ 3/4" MIP Fittings (36" Length)" QR Code
QR-Code
Product Code: CSSC11-36

MPN: CSSC11-36

Weight:0.20 lb

Usually ships: Upon availability
$10.95
10 or more $9.60

* Country:
* State:
* ZIP:
Qty: Add to Cart

Have any questions?
Contact us at 1-800-246-9552

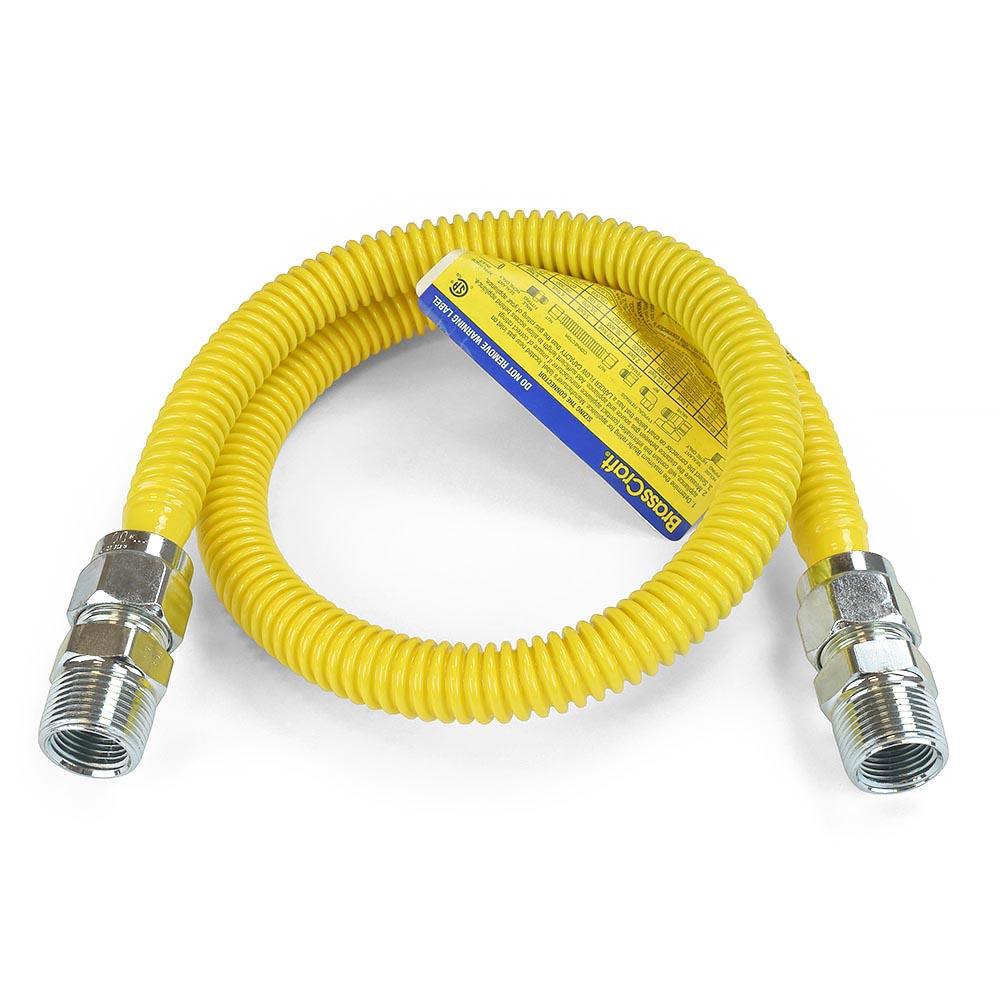

The CSSC11-36 from BrassCraft is a 36” ProCoat Stainless Steel Gas Connector, 3/4” MIP x 3/4” MIP (1/2” ID; 5/8” OD). It provides a secure and lasting gas connection. ProCoat technology provide unequaled corrosion resistance. For use with indoor and outdoor connections of gas appliances to gas piping system.


Materials of Construction:

  • Tubing: 304L stainless steel;
  • Coating: Polymer blend;
  • Nuts: 12L14 or 1010 steel;
  • Fittings: 12L14 or 1010 steel.


Features:

  • Superior corrosion resistance to harsh chemicals found in common household cleaning, plumbing repair and masonry products;
  • UV rays & salt resistant, ProCoat gas connectors are certified for indoor & outdoor use;
  • Greater strength & flexibility with greater depth & number of corrugations to withstand greater torque & bend cycles;
  • Outperforms industry standards for torsion (1.5X) without compromising the integrity of the coating or connector;
  • Outperforms industry standard for repeated bending (2X) without compromising the integrity of the coating or connector;
  • One-piece construction has no soldered of brazed joints;
  • Smoother, burnished flare on connector ends seal with less torque;
  • Uniform coat over entire length of connector for complete corrosion resistance of the stainless steel core;
  • 100% leak tested;
  • Made in the USA.


Technical Specifications:

  • Connections: 3/4" MIP Straight (tapped 1/2" FIP) fittings on both sides;
  • Hose Diameter: 1/2" ID (5/8" OD);
  • Length: 36";
  • Temperature: -40°F to 150°F;
  • Maximum Pressure: standard line pressure up to 1/2 PSI;
  • Flow Capacity for Natural Gas (Straight Length): 125,000 BTU/hr;
  • low Capacity for LPG/Propan (Straight Length): 200,000 BTU/hr.
Product Specs
Application:Heating
Connection Size:3/4"
Connection Type:MIP
ID:1/2"
Length (Inches):36"
LP Capacity (BTU):217600
Material:Coated Stainless Steel
NG Capcacity (BTU):136000
OD:5/8"
