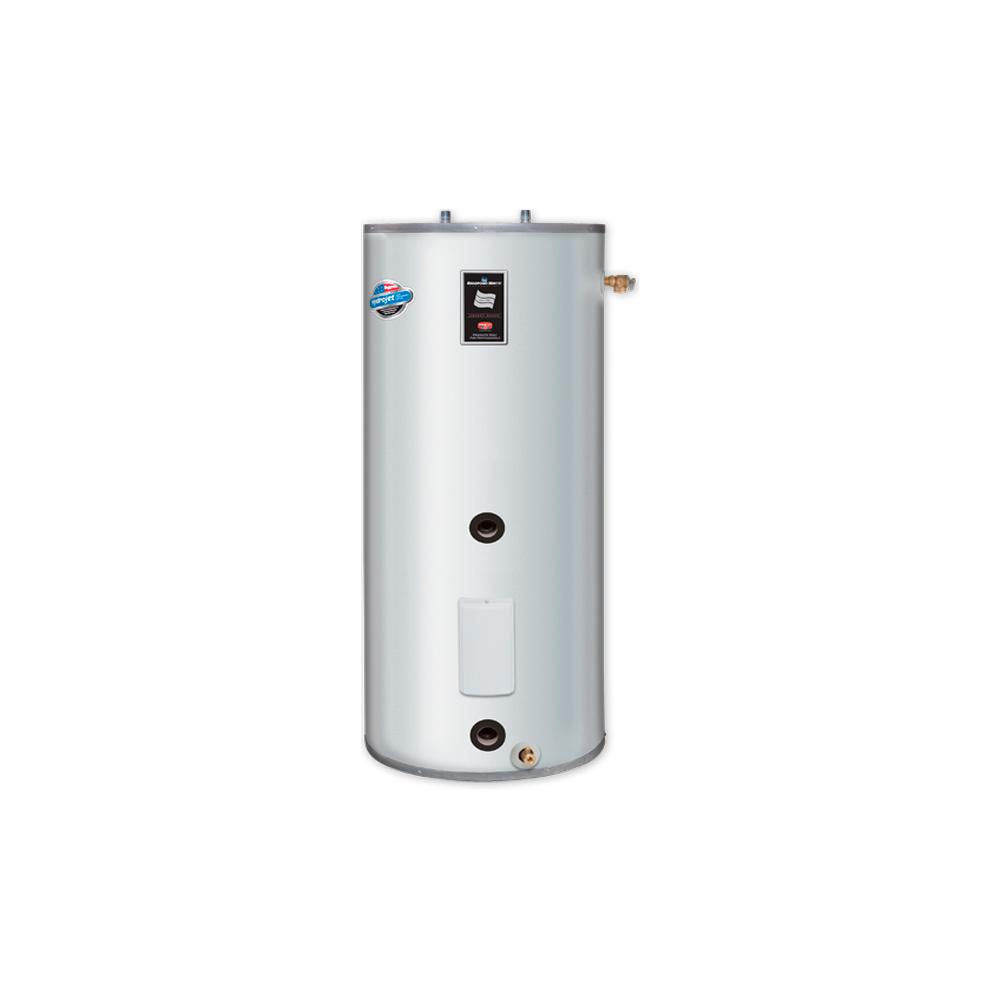

PowerStor2 Indirect Water Heater, 37 gal

Click Image for Gallery

The DW-2-40-L from Bradford White is a PowerStor2 Indirect Water Heater, 37.0 gal. Comes with surface mount thermostat, T&P relief valve and (2) aluminum anode rods. 2" non-CFC tank insulation ensures minimal heat loss @ only 1.1°F / hr.

Features:

Double-wall heat exchanger;
Vitraglas enamel lining helps to extend tank and heat exchanger life;
Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank;
2" Non-CFC foam covers the sides and top of the tank, reducing heat loss;
(2) Protective magnesium anode rods.

Technical Specifications:

Domestic Water Capacity (Gallons): 37;
Heat Exchanger Type: Double-Wall, Single Coil;
1st Hour Rating, AHRI (180°F Boiler water temp): 123 Gal @ 135°F;
Continuous Draw Rating, AHRI (180°F Boiler water temp): 98 GPH @ 135°F;
1st Hour Rating, DOE (200°F boiler water, 50°F potable water): 80 Gal @ 140°F; 122 Gal @ 115°F;
Continuous Draw Rating, DOE (200°F boiler water, 50°F potable water): 0.9GPM @ 140°F; 1.6GPM @ 115°F;
Standby Heat Loss Rating, AHRI (180°F Boiler water temp): 1.1 °F/Hr;
Min Heat Req. Rate, AHRI (180°F Boiler water temp): 65,000 BTU/Hr;
Min. Heat Source Flow Rate, AHRI (180°F Boiler water temp): 8.0 GPM;
Anode(s): 2 Aluminum Rods;
Max Supply Water Temperature: 240°F;
Potable Water Connections: 3/4" NPT;
Boiler (Heat Exchanger) Supply and Return Connections: 3/4" NPT;
Drain Connection: 3/4" NPT;
Max Working Pressure: 150 psi;
Dimensions (Diameter x Height): 22" x 41";
Insulation Thickness: 2";
Weight (lbs): 195.

Warranty:

Limited lifetime tank and heat exchanger warranties / 6-year limited warranty on component parts

Product Specs
1st Hour Rating, AHRI (180°F Boiler water temp)	123 Gal @ 135°F
1st Hour Rating, DOE (200°F boiler water, 50°F p	80 Gal @ 140°F; 122 Gal @ 115°F
Anode(s):	2 Aluminum Rods
Boiler (Heat Exchanger) Supply and Return Connections:	3/4" NPT
Continuous Draw Rating, AHRI (180°F Boiler water temp):	98 GPH @ 135°F
Continuous Draw Rating, DOE (200°F boiler water, 50&	0.9GPM @ 140°F; 1.6GPM @ 115°F
Dimensions (Diameter x Height):	22" x 41"
Domestic Water Capacity (Gallons):	37
Drain Connection:	3/4" NPT
Heat Exchanger Type:	Double-Wall, Single Coil
Insulation thickness:	2"
Max Supply Water Temperature:	240°F
Max Working Pressure:	150 psi
Min Heat Req. Rate, AHRI (180°F Boiler water temp):	65,000 BTU/Hr
Min. Heat Source Flow Rate, AHRI (180°F Boiler water tem	8.0 GPM
Potable Water Connections:	3/4" NPT
Standby Heat Loss Rating, AHRI (180°F Boiler water temp)	1.1 °F/Hr
Weight (lbs):	195.

Views: 6252
Model: DW-2-40-L
MPN: DW-2-40-L
Availability: 50 - 60 Days
Usually ships: Upon availability
