74 Gal, ProLine Atmospheric Vent Water Heater (NG), 10-Yr Wrty
Click Image for Gallery

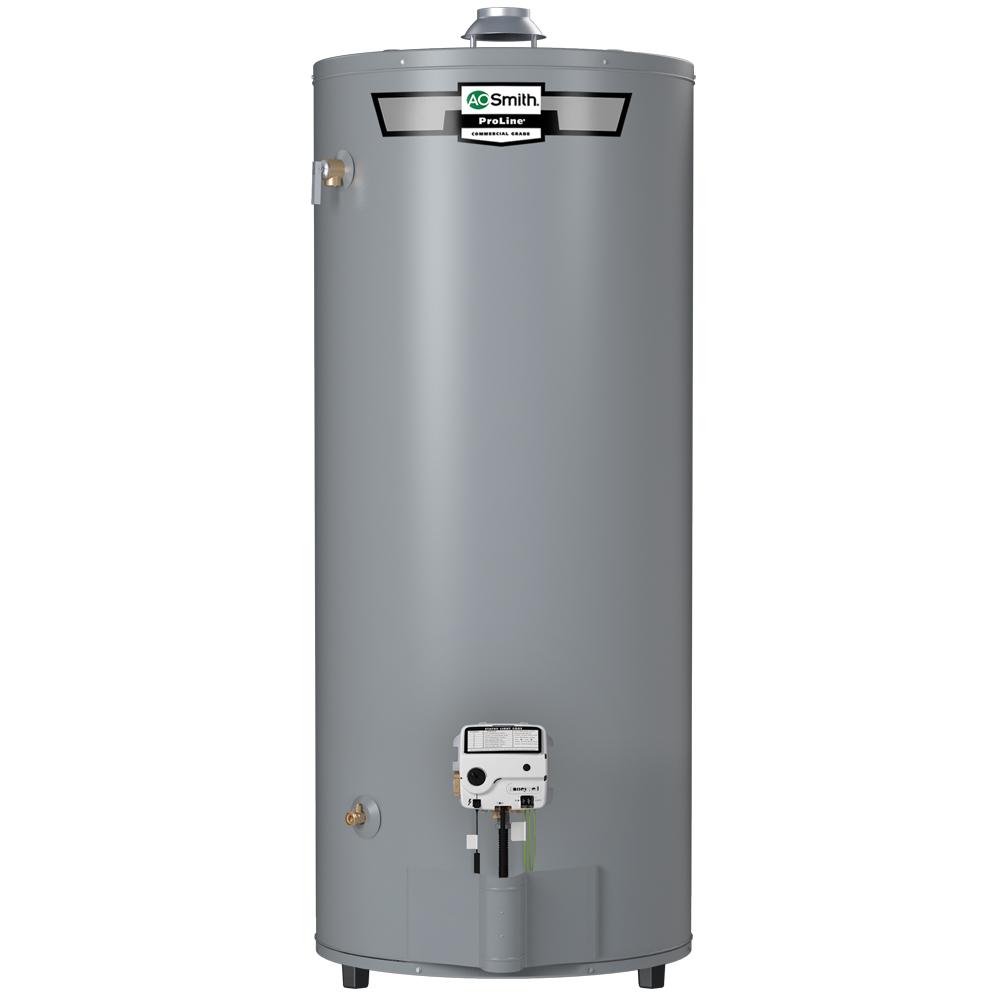

AO Smith ProLine PCG-75 model is a 74-Gallon, natural gas (NG) atmospheric vent residential water heater with 10-year warranty.
Technical Specifications:
Features:
Technical Specifications:
- Fuel: Natural Gas (NG)
- Nominal Capacity (Gallons): 74
- Rated Storage Volume (Gallons): 71
- Input (BTU): 75,100
- Uniform Energy Factor: 0.60
- 1st Hour Rating (Gallons): 125
- Recovery @ 90°F Rise (GPH): 81
- Standby loss (BTU/Hour): 1146
- Anode: CoreGard Magnesium
- NOx Emissions: less than 40ng/J
- Water Connections: 1" NPT
- Water Connections Location: Top
- Gas Connection: 1/2" NPT
- Max Working Pressure: 150 PSI
- Ignition Type: Piezo
- Vent Type: Atmospheric
- Venting Size: 4"
- Vent Material: B-Vent
- Dimensions (Diameter x Height): 16" x 58-1/2" (61" w/ Draft Hood installed)
- Weight (lbs): 270.
Features:
- Blue Diamond glass coating prevents early corrosion of the tank, extending it''s life
- Dynaclean diffuser dip tube reduces sediment build-up and improves long-term efficiency
- Coregard anode rod with stainless steel core
- Heat trap nipple reduces stand-by energy loss
- Push-button piezo ignitor
- Fully automatic controls w/ safety shutoff.
- Views: 824
-
- Model: PCG-75
- MPN: PCG-75
- Availability: Out Of Stock
- Usually ships: Upon availability
- $ 1 605.95
