Therm-X-Trol ST-5 Thermal Expansion Tank (2.0 Gal Volume)

Therm-X-Trol ST-5 Thermal Expansion Tank (2.0 Gal Volume)
Therm-X-Trol ST-5 Thermal Expansion Tank (2.0 Gal Volume) QR Code
Views: 6593 Model: 140N43
UPC: 642031395665

MPN: 140N43


Weight:5.70 lb

Dimensions (L x W x H ): 9.00 x 9.00 x 14.00

Usually ships: 1 business days
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

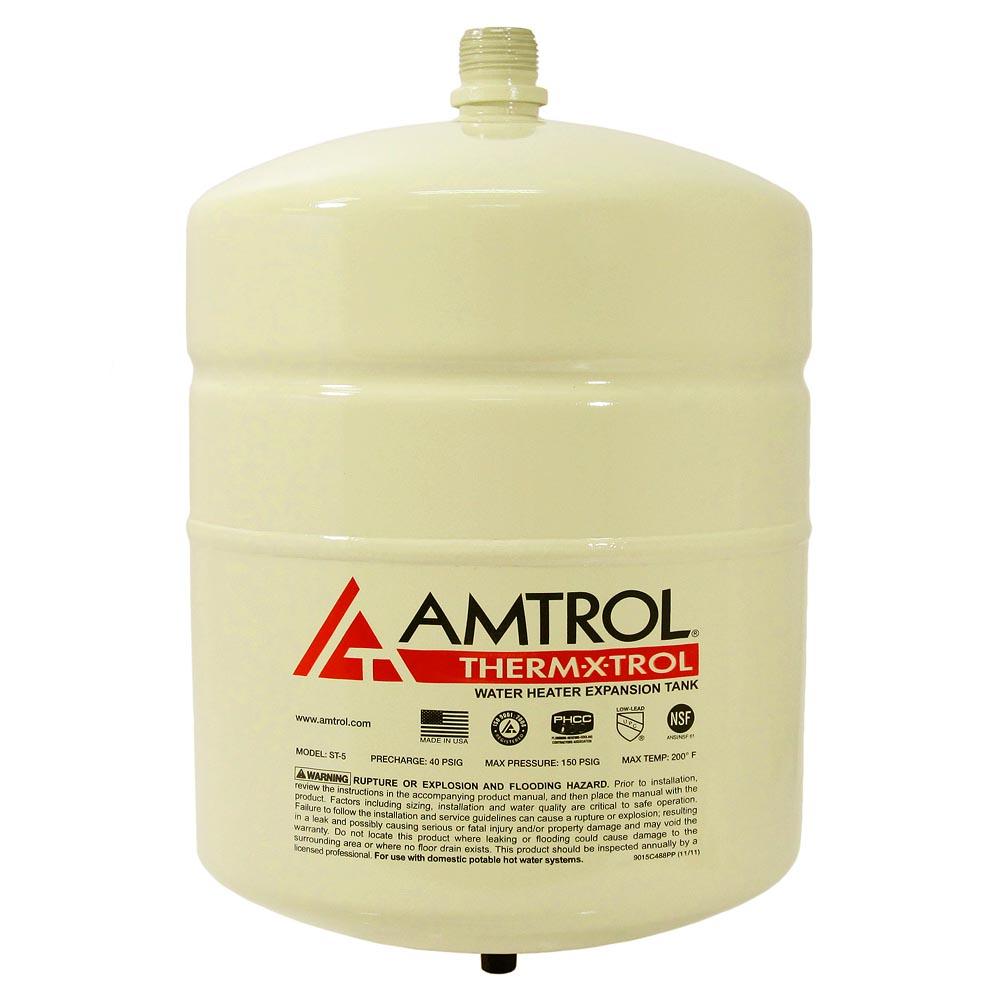

The 140N43 from Amtrol is a Therm-X-Trol ST-5 Thermal Expansion Tank. It's designed for use in domestic hot water heating systems to eliminate the potential hazards of water expansion.
Water heater expansion tank is commonly installed in a domestic hot water system that contains a backflow preventer, a check valve or a pressure reducing valve.


  • Eliminates the waste of energy and water, thus saving money;
  • Protects the water heater and plumbing fixtures from premauture failure;
  • Reduces potential safety hazards associated with thermal expansion;
  • Prevents a dangerous pressure build-up in the system;
  • Prevents the relief valve from going off;
  • Therm-X-Trol brand is the #1 choice of Professional Installers;

Standards & Approvals:

  • NSF/ANSI 61®, IAPMO, SBCCI & City of Los Angeles listings.

Amtrol ST-5 Applications:

  • Residentail water heaters, laundromats, dormitories, office/apartment buildings, restaurants, etc.

Technical Specifications:

  • Factory pre-charged 40 psig;
  • System connection: 3/4" male threaded;
  • Stainless steel system connection;
  • Max. operating temperature: 200F;
  • Max. operating pressure: 150 psi;
  • Expansion tank volume: 2.0 gallons;
  • Max. acceptance factor: 0.45;
  • Height: 12-5/8";
  • Diameter: 8";
  • Shipping weight: 5 lbs.


  • 5-year manufacturer's warranty.
Product Specs
Application: Plumbing
Diameter (Inches): 8"
Height: 12-5/6"
Material: Steel
Max Accept. Factor: 0.45
Max Pressure (PSI): 150
Size: 3/4"
Tank Volume: 2 Gallons
Temperature Range (F): 200°F MAX
Warranty: 5-Year Limited Warranty
Weight (lbs): 5 lbs
