10" x 10" Fire Rated Access Door, Steel

10" x 10" Fire Rated Access Door, Steel

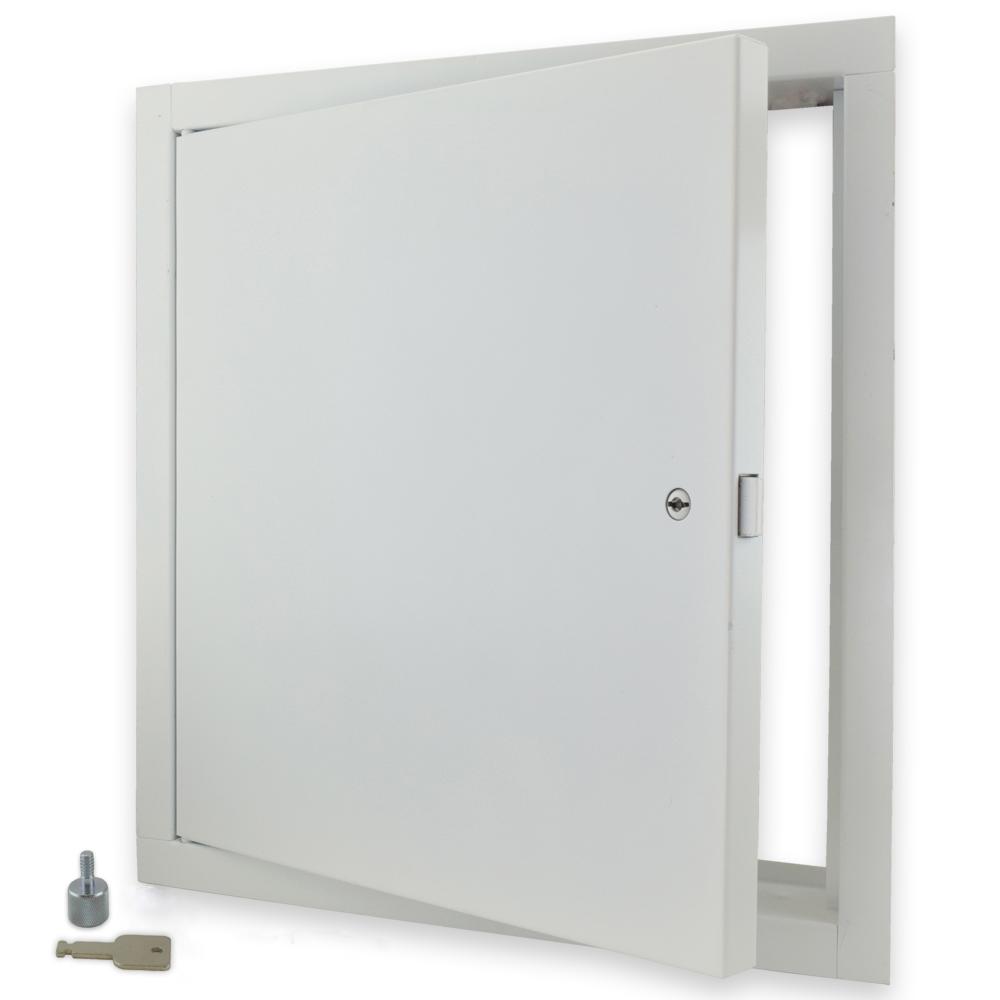

The FB-5060-10X10 from Acudor is a 10” x 10” Fire Rated Access Door, Steel. It's designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor. Comes with knurled knob/flush key operated self latching bolt. For wall installation only.


Features:

  • Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor;
  • Self-closing & self-latching door mechanism;
  • Comes with knurled knob and flush key for universal self-latching bolt;
  • 1" wide door frame flange with reinforced edges;
  • Concealed stainless steel pin hinge;
  • Made in America.


Technical Specifications:

  • Fire rating: UL: 1.5 hour "B" label. ULC: 2 hour "B" label;
  • Door and frame material: 16 gauge galvanized steel;
  • Door finish: white baked enamel;
  • Installation: Walls only;
  • Access door size (W x H): 9.78" x 9.78";
  • Overall size (W x H): 12" x 12";
  • Mounting Depth: 2.56";
  • Inside Frame (W x H): 10.12" x 10.12";
  • Rough Opening (W x H): 10-3/8" x 10-3/8".
Product Specs
Access door size 10" x 10"
