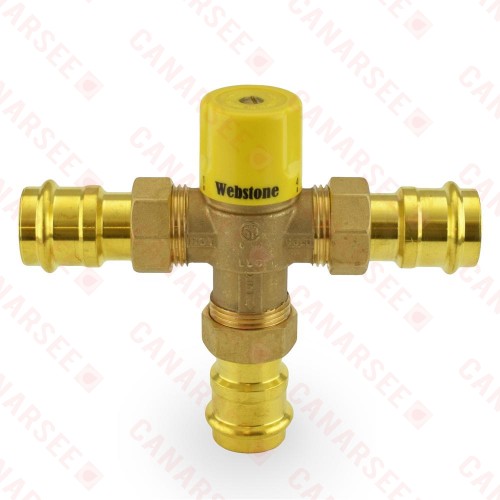

1” Union Press Mixing Valve, Lead-Free (95F – 131F)

1” Union Press Mixing Valve, Lead-Free (95F – 131F)

The 78104W from Webstone Valves is a 1” Union Press Mixing Valve, Lead-Free (95F-131F.)


Features:

  • 1" Union Press Mixing Valve (Lead-Free), 95-131F;
  • Union connections simplify installation;
  • For low-temperature hydronic or hot/cold water plumbing systems;
  • Easy to set temperature-locking handle;
  • Lead-free, approved for potable water use.


Technical Specifications:

  • System connections: 1" Press;
  • Output (mixing) temperature range: 95-131F;
  • Hot inlet temperature range: 120-185F;
  • Cold inlet temperature range: 39-80F;
  • Operating pressure range: 30-150 psi;
  • Min. temperature differential (betw. hot supply and mixing outlet): 20F;
  • Max. inlet pressure ratio (cold/hot supply): 2:1;
  • Min. flow rate: 0.5 GPM;
  • CV: 2.5;
  • Dimensions (H x W): 6.00" x 7.06";
  • Approvals: NSFANSI 16 & 372, CSA B125.3, ASSE 1017;
  • Materials of construction: lead-free brass body, EPDM O-rings, st. steel springs, plastic handle.
Product Specs
Approvals: NSFANSI 16 & 372, CSA B125.3, ASSE 1017
Cold inlet temperature range: 39-80F
CV: 2.5
Dimensions (H x W): 6.00" x 7.06"
Hot inlet temperature range: 120-185F
Max. inlet pressure ratio (cold/hot supply): 2:1
Min. flow rate: 0.5 GPM
Operating pressure range: 30-150 psi
Output (mixing) temperature range: 95-131F
System connections: 1" Press

Write a review

Please login or register to review
  • Views: 9457
  • Model: 78104W
  • MPN: H-78104W
  • Availability: Discontinued
  • Usually ships: 1
  • $ 123.95

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Tags: Mixing Valves, Valves, Plumbing Valves, Plumbing Supply, Residential Plumbing,
