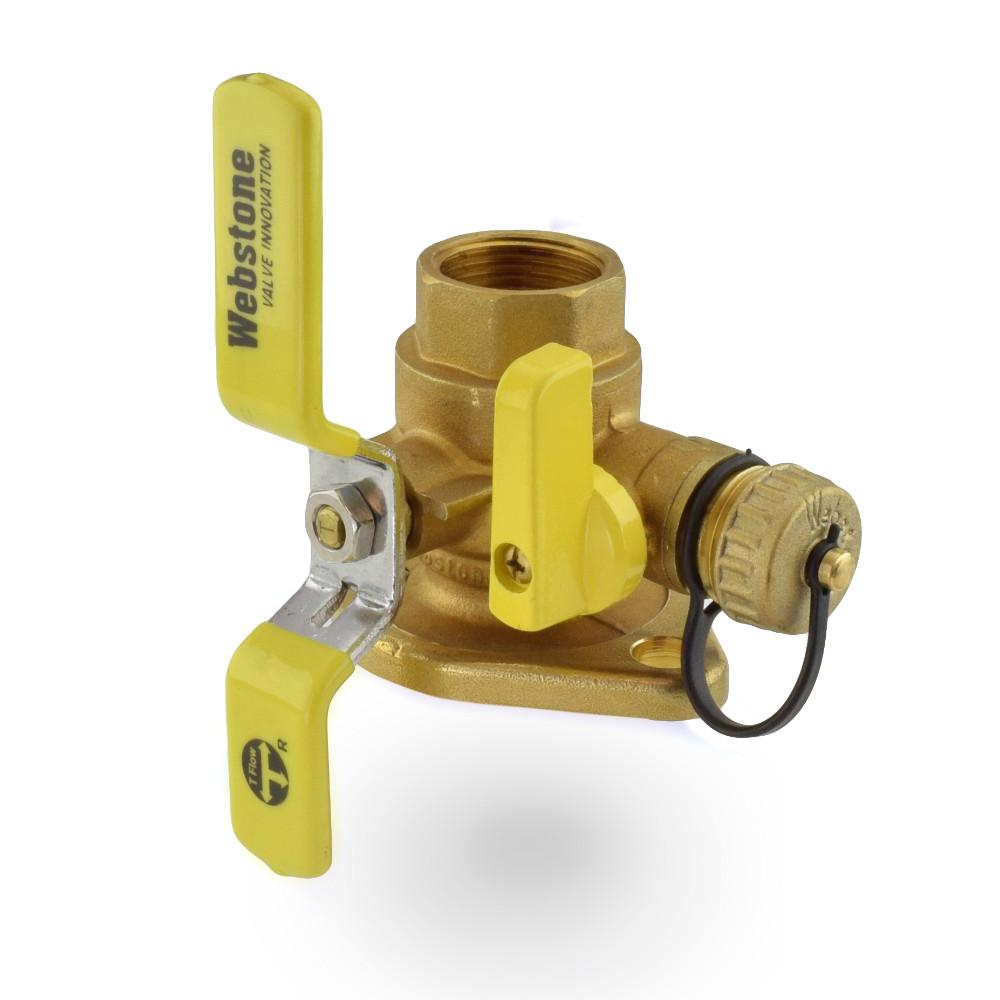

1" FPT Isolator Flange Valve w/ Drain and Rotating Flange
Click Image for Gallery
The 41414 from Webstone Valves is a 1” FPT Isolator Flange Valve with Drain & Rotating Flange.
Features:
- 1" FPT Isolator Flange Valve w/ Drain & Rotating Flange;
- Detachable, rotating flange;
- Adjustable packing gland;
- Blowout-proof stem;
- Full-port, full-flow;
- Hi-flow hose drain with cap;
- Includes nuts and bolts.
Technical Specifications:
- System connection: 1" Threaded (FNPT);
- Pressure/temperature ratings: 600 psi @ 100F, 490 psi @ 150F, 470 psi @ 200F, 439 psi @ 250F, 411 psi @ 300F, 294 psi @ 350F;
- 600 WOG;
- Flange valve height (w/ out handle): 2-15-16".
| Product Specs | |
| Connections | Threaded |
| Options | Hose Drain;Rotating Flange |
| Size1 | 1" |
