4" Inside, Push-Tite FullFlush Offset Gasket Closet Flange w/ Swivel St. Steel Ring, for PVC/Cast Iron

4" Inside, Push-Tite FullFlush Offset Gasket Closet Flange w/ Swivel St. Steel Ring, for PVC/Cast Iron
Views: 1501 Product Code: 889-GPOM

MPN: 889-GPOM

Weight:1.00 lb

Dimensions (L x W x H ): 7.00 x 7.00 x 7.00

Usually ships: Upon availability
$19.45
Qty: Add to Cart

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

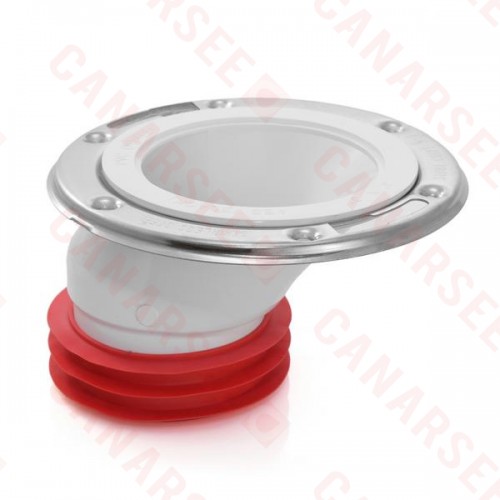

Sioux Chief FullFlush + Push-Tite series PVC closet flange has a 4" gasket, inside-fit connection which allows it to be installed inside a 4" PVC, ABS or cast iron no-hub pipe. Stainless steel swivel ring with bolt slots/tabs offers added flexibility during toilet bowl installation.



Features:



  • Elastomer gasket seals inside DWV pipe;
  • Easy installation - simply push in and fasten to the floor;
  • Provides a 1-1/2" offset in any direction;
  • Smooth inner walls without obstructions or ledges help prevent clogs;
  • Made in the USA;
  • Comforts to ASTM D2665.



Technical Specifications:



  • Connection: 4" Gasket (fits inside 4" PVC or Cast Iron non-hub pipe);
  • Material: PVC body and 18-gauge, 430 corrosion resistant stainless steel swivel flange;
  • Installation type: Elastomer Gasket Seal (No glue needed);
  • For installation with: PVC, ABS or Cast Iron no-hub pipe;
  • Overall Height: 4-1/4";
  • Flange Outer Diameter: 7";
  • Opening diameter: 4";
  • Flange thickness (height): 1/4";
  • Screw center: 6";
  • Offset (center to center): 1-1/2";
  • Gasket height: 1-1/4".
Product Specs
Flange Outer Diameter:7"
Flange thickness (height):1/4"
For installation with:PVC, ABS or Cast Iron no-hub pipe
Gasket height:1-1/4".
Installation Type:Elastomer Gasket Seal (No glue needed)
Offset (center to center):1-1/2"
Opening diameter:4"
Overall height:4-1/4"
Screw Center:6"
