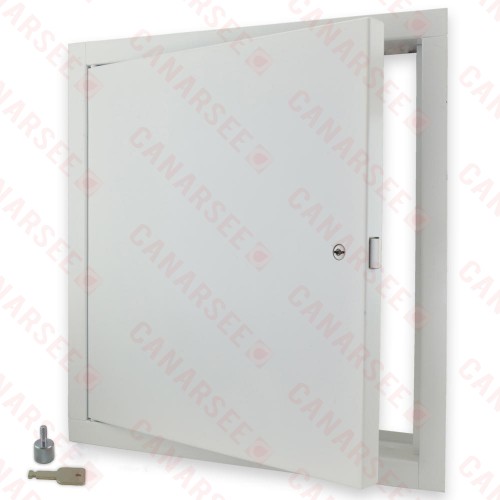

8" x 8" Fire Rated Access Door, Steel
Click Image for Gallery
The FB-5060-8X8 from Acudor is a 8” x 8” Fire Rated Access Door, Steel. It's designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor. Comes with knurled knob/flush key operated self latching bolt. For wall installation only.
Features:
- Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor;
- Self-closing & self-latching door mechanism;
- Comes with knurled knob and flush key for universal self-latching bolt;
- 1" wide door frame flange with reinforced edges;
- Concealed stainless steel pin hinge;
- Made in America.
Technical Specifications:
- Fire rating: UL: 1.5 hour "B" label. ULC: 2 hour "B" label;
- Door and frame material: 16 gauge galvanized steel;
- Door finish: white baked enamel;
- Installation: Walls only;
- Access door size (W x H): 7.78" x 7.78";
- Overall size (W x H): 10" x 10";
- Mounting Depth: 2.56";
- Inside Frame (W x H): 8.12" x 8.12";
- Rough Opening (W x H): 8-3/8" x 8-3/8".
| Product Specs | |
| Access door size | 8" x 8" |
- Views: 8063
-
- Model: FB-5060-8X8
- MPN: FB-5060-8X8
- Availability: Discontinued
- Usually ships: 1
- $ 89.95
