5/8" ID x 1/2" Wall, Self-Sealing Pipe Insulation, 6ft

Click Image for Gallery

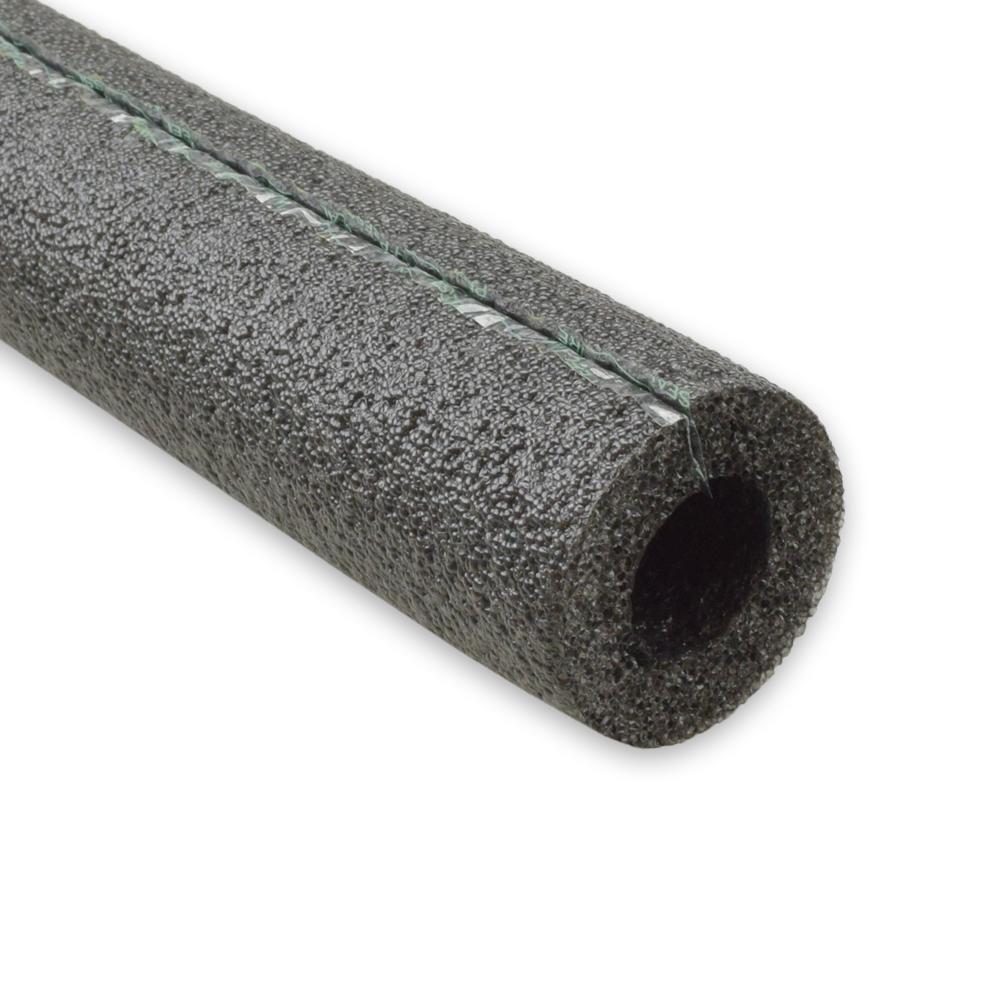

The 6IL048058 from Nomaco is a 5/8” x 1/2” Wall, Self-Sealing Pipe Insulation, 6ft. It's a self-seal type closed-cell polyethylene foam pipe insulation for use with 1/2" copper/PEX/CPVC pipe or 3/8" black/brass/PVC pipe. Maximum pipe OD is 5/8". Insulation wall thickness is 1/2". Environment-friendly, made in the USA.

Features:

Self-Sealing, with PSA (Pressure Sensitive Adhesive) on both seam surfaces;
Made in the USA to ASTM C1427 (Type 1/Grade 1) from up to 100% recycled content;
Meets NFPA 90 A & B;
Non-porous, closed-cell type polyethylene foam insulation;
Resists mold growth;
Low VOC and free from fiber, halogen, CFC's, HCFC's;
For Indoor/Outdoor use, can also be installed underground.

Technical Specifications:

For copper/PEX/CPVC pipe size: 1/2";
For black/brass/steel/PVC pipe size: 3/8";
Insulation ID (max. pipe OD): 5/8";
Wall thickness: 1/2";
Length: 6ft;
R-value: 3.5;
Operating temperature range: -330°F – 210°F;

Product Specs
For black/brass/steel/PVC pipe size:	3/8"
For copper/PEX/CPVC pipe size:	1/2"
Insulation ID (max. pipe OD):	5/8"
Length	6ft
Operating temperature range:	-330°F - 210°F
R-value:	3.5
Wall thickness:	1/2"

Views: 6823
Model: 7PXL048058
MPN: 6IL048058
Availability: In Stock
Usually ships: within 1 business day(s)
