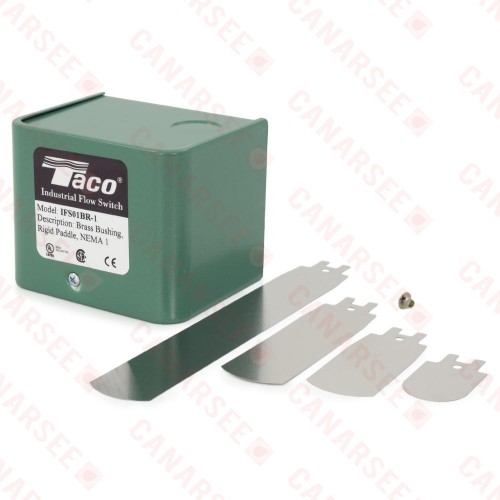

IFS01BR-1, Brass Mechanical Liquid Flow Switch, NEMA 1, (2) Rigid Paddles, 1 MNPT
New
Click Image for Gallery
Taco IFS01BR-1 is a robust, industrial-grade mechanical liquid flow switch, designed for turning On or Off a wide range of electrically-operated equipment (pumps, alarms, burners, etc.). Includes (2) rigid stainless steel paddles for use with pipe sizes 1 through 8. Integral screw for adjusting flow sensitivity. NEMA 1 enclosure for indoor use only. Standard 1 male NPT threaded connection.
Technical Specifications:
Features:
Technical Specifications:
- Electrical Specs: SPDT (Relay Type), NEMA 1 Enclosure
- Application: 1" - 8" pipe sizes
- Flow Rates: Refer to image specs for minimum and maximum rates for 1" - 8" pipe sizes
- Connection: 1" NPT (Brass)
- Conduit Entrance: 2 openings for 1/2" conduit
- Pilot Duty Rating: 125 VA @ 120/240 VAC
- Switch Rating: 3.8 FLA, 22.8 LRA @ 120 VAC; 2.9 FLA, 17.4 LRA @ 240 VAC
- Max Pressure: 250 psi
- Max Water Temperature: 250°F
- Control Contacts: 15 Amps @ 125/250 VAC; .5 Amps @ 125 VDC; .25 Amps @ 250 VDC
- Motor Ratings: 1/8 HP @ 120 VAC, 1/4 Hp @ 240 VAC;
- Max Ambient Temperature: 176°F
Features:
- Rigid paddles (1" & 6" - incl.), 6" paddle can be trimmed to smaller size to fit various pipe sizes (see manual for details)
- EPDM seal instead of mechanical bellows for longer life
- Starts or stops electrical equipment, such as pumps, alarms, motors, burners, and metering devices, when water flow is detected in a system
- Horizontal or vertical mounting
- Suitable for pipe sizes from 1" to 8"
- Adjustable flow senstitivity via internal screw
- UL, CSA, & CE (IFS01 & IFS02) Approved
