2400 Series Circulator Pump, 1/2 HP, 115V

Click Image for Gallery

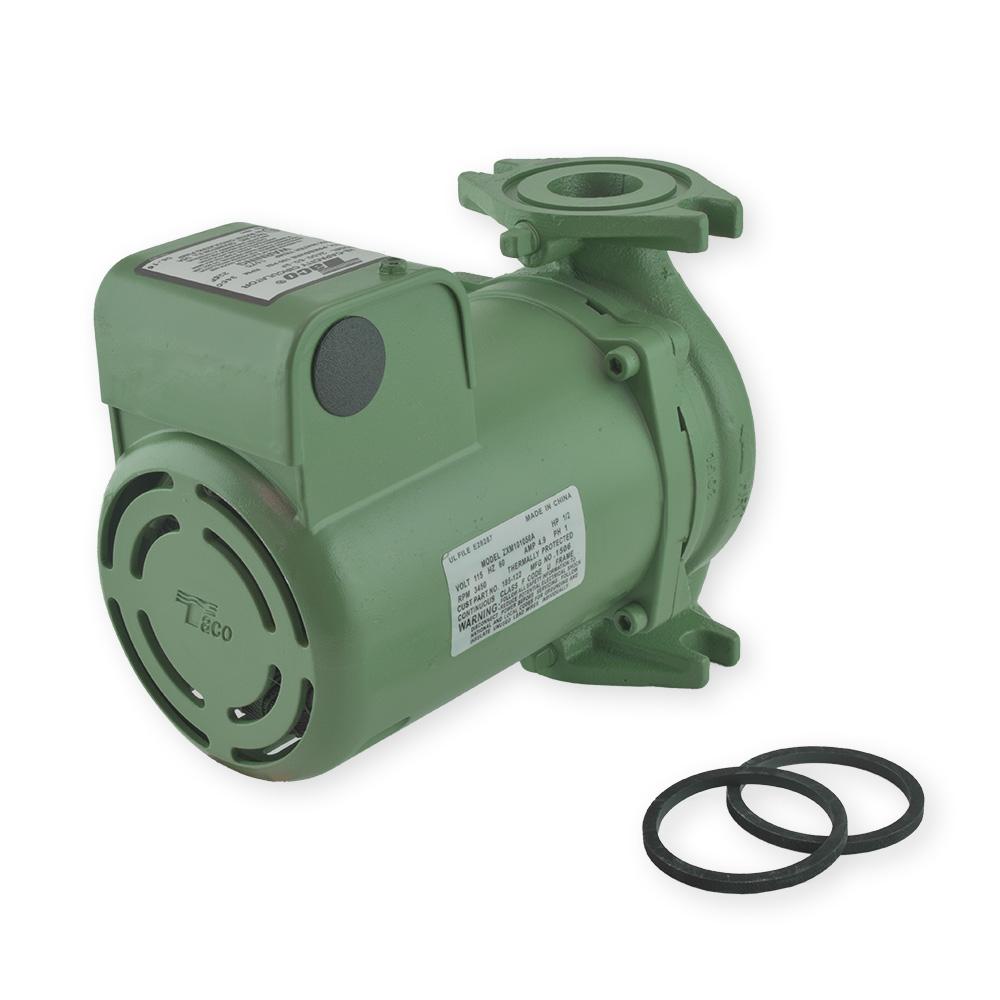

The 2400-50-3P from Taco is a High Capacity Circulator Pump, 1/2HP, 115V. It's designed for quiet and efficient operation with high flow/head hydronic heating, hot water recirculation or chilled water cooling applications. This high capacity circulator pump provides the maximum head of 46 feet and maximum flow of 37 gallons per minute. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, Noryl impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability.

Features:

Compact, space saving design;
Powerful close-coupled, maintenance free motor;
Superior efficiency, high starting torque;
Parmanently lubricated, sealed for life bearings;
Rugged 1/2" Stainless Steel Shaft.

Technical Specifications:

Horsepower: 1/2 HP;
Maximum Shut-off Head: 46 ft;
Maximum Flow: 37 GPM;
Maximum Operating Pressure: 150 psi;
Fluid Temperature: 40-225°F (4-107°C);
Voltage: 115V;
Frequency: 60 Hz;
Amperage: 4.9 A;
Frequency of Rotation: 3450 RPM;
Casing: Cast Iron;
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged.

Product Specs
Amperage:	4.9 A
Casing:	Cast Iron
Connection Sizes:	3/4", 1", 1-1/4", 1-1/2" Flanged.
Fluid Temperature:	40-225°F (4-107°C)
Frequency of Rotation:	3450 RPM
Frequency:	60 Hz
Horsepower:	1/2 HP
Maximum Flow:	37 GPM
Maximum Operating Pressure:	150 psi
Maximum Shut-off Head	46 ft
Voltage	115V

Views: 7178
Model: 2400-50-3P
MPN: 2400-30-3P
Availability: In Stock
Usually ships: within 1 business day(s)
