2-1/2" Press x Flange Adapter, #125, Made in the USA
Click Image for Gallery

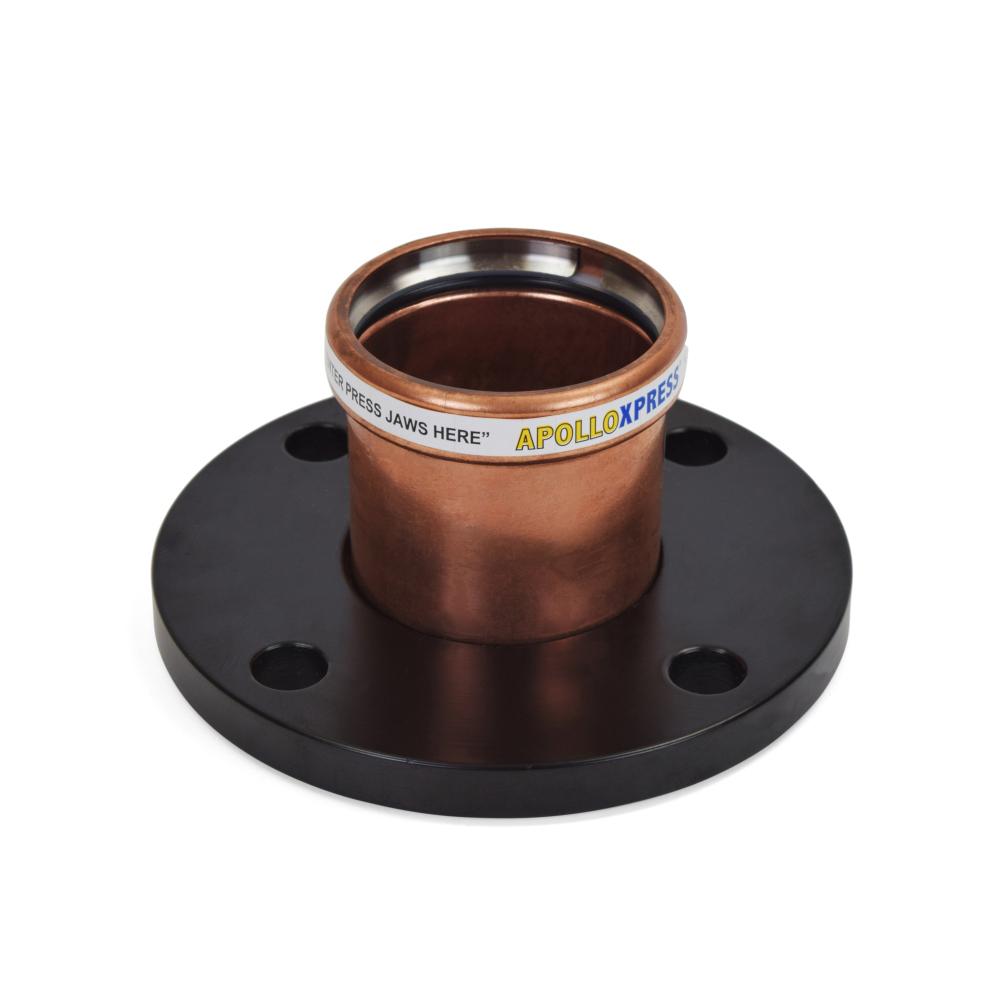

This press flange adapter connects 2-1/2" copper pipe to a flange.
Technical Specifications:
Features:
Technical Specifications:
- Hot & cold water: up to 200 psi at 33°F-250°F
- Low pressure steam: up to 15 psi
- Compressed air & inert gases: up to 140 psi
- For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing
- O-ring material: EPDM
- O-ring lubricant: NSF/ANSI 61 listed silicone oil.
- Class Pressure Rating: 125 lb
Features:
- Made in the USA
- Lead-free, approved for potable water use nationwide
- Meets NSF/ANSI 61 & 372, UPC, ARRA and ICC compliant (see Literature for complete list of approvals)
- Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.
- Heat & flame-free installation, no fluxing, cleaning, soldering or prep. Work
- Compatible with XL-C pressing tools
- Leak Before Press feature.
- Approved for underground installation (per local installation code).
- Black powder-coated steel flange base.
- Visual element, Break Away Band (Pat. Pending).
