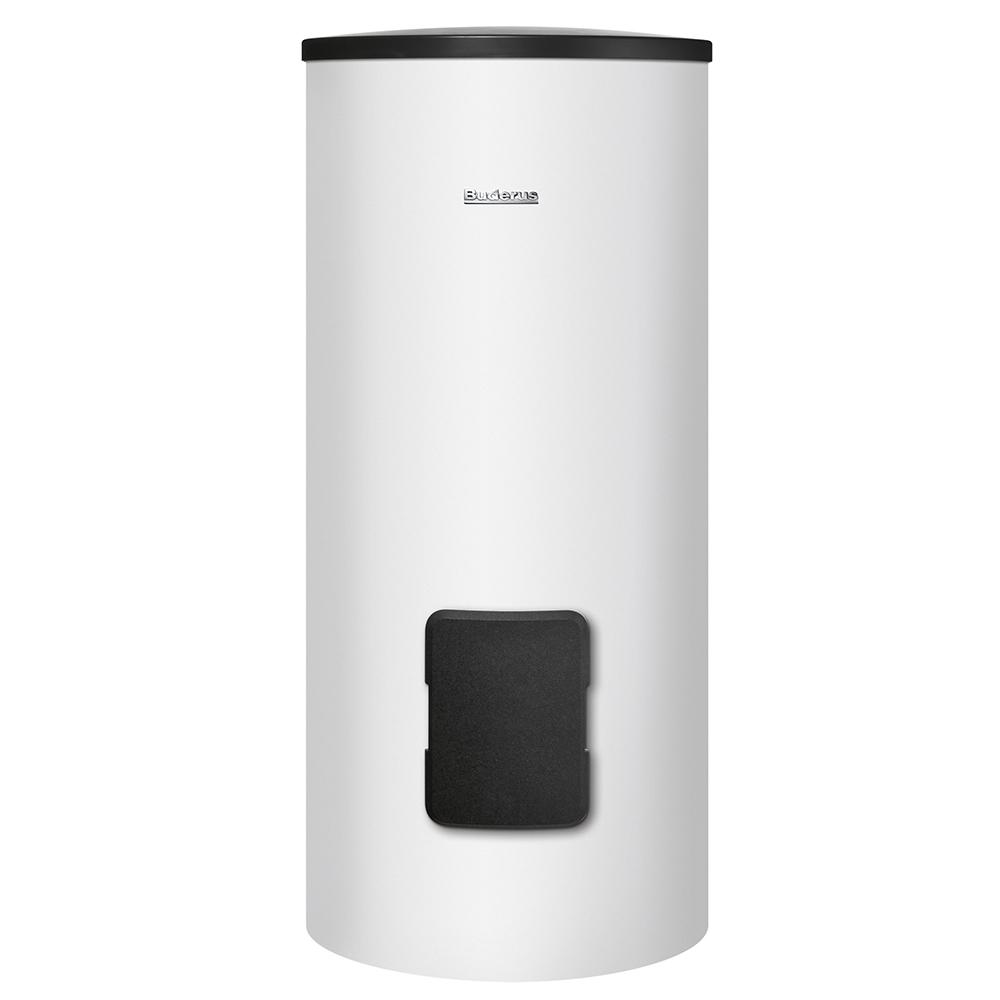

SU100 Indirect Hot Water Heater, 98.4 Gal
Click Image for Gallery
SU100 Indirect Hot Water Heater, 98.4 Gal
- Domestic Water Capacity (Gallons): 98.4
- Heat Exchanger Type: Single Coil
- Domestic Hot Water (DHW) Connection: 1" NPT
- Domestic Cold Water Connection: 1" NPT
- Boiler (Heat Exchanger Coil) Connections: 1" NPT
- Hot Water Recirculation Connection: 3/4" NPT
- Max DHW Temperature: 203°F
- Max DHW Operating Pressure: 150 psi
- Max Boiler Water Temperature: 230°F
- Max Boiler/Heat Exchanger Coil Side Pressure (psi): 232
- Stand-by Heat Loss (°F/hr): 0.4
- Continuous Domestic Hot Water Flow (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 218.0
- 1st Hour Rating (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 312.0
- Min. Boiler Output (BTU): 143,000
- Min. Boiler Water Flow Rate (GPM): 14.0
- Dimensions (Diameter x Height): 26-3/8" x 72-1/4"
- Empty Weight (lbs): 282.
6-year limited tank warranty for Residential Application / 2-year limited tank warranty for Commercial Application
- Views: 2028
-
- Model: SU100
- MPN: 8718542949
- Availability: 2 - 3 Days
- Usually ships: Upon availability
- $ 3 246.35
