3" x 3" x 2-1/2" Press Copper Tee, Made in the USA

3" x 3" x 2-1/2" Press Copper Tee, Made in the USA
3" x 3" x 2-1/2" Press Copper Tee, Made in the USA QR Code
Views: 454 Model: 10062079

MPN: 10062079

Weight:3.17 lb

Dimensions (L x W x H ): 3.70 x 8.00 x 5.90

Usually ships: 2-3 business day(s)
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

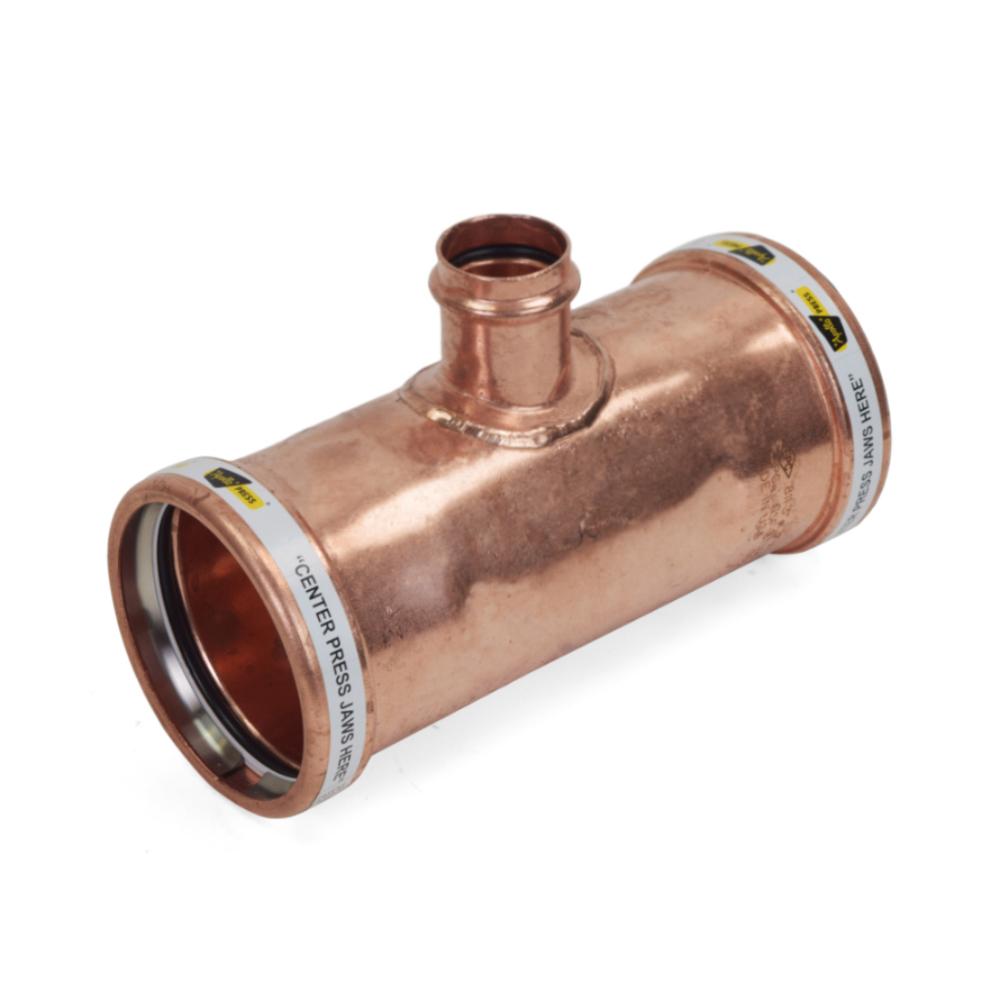

This press tee fitting connects 3" (side), 3" (side), 2-1/2" (top/middle) copper pipes together.

Technical Specifications:
  • Hot & cold water: up to 200 psi at 33°F-250°F
  • Low pressure steam: up to 15 psi
  • Compressed air & inert gases: up to 140 psi
  • For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing
  • O-ring material: EPDM
  • O-ring lubricant: NSF/ANSI 61 listed silicone oil.

  • Made in the USA
  • Lead-free, approved for potable water use nationwide
  • Meets NSF/ANSI 61 & 372, UPC, ARRA and ICC compliant (see Literature for complete list of approvals)
  • Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.
  • Heat & flame-free installation, no fluxing, cleaning, soldering or prep. Work
  • Compatible with XL-C pressing tools
  • Leak Before Press feature.
  • Approved for underground installation (per local installation code).
  • Visual element, Break Away Band (Pat. Pending).
