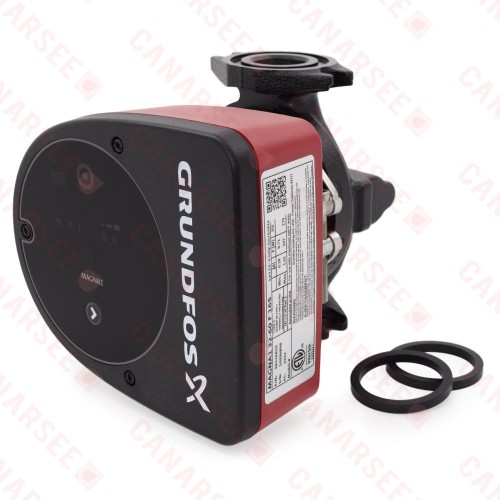

MAGNA1 32-60 GF High-Efficiency Cast Iron Circulator Pump, 208-230V

MAGNA1 32-60 GF High-Efficiency Cast Iron Circulator Pump, 208-230V
Grundfos MAGNA1 32-60 GF is a feature-rich, cast iron high-efficiency variable speed circulator pump designed for wide range of large residential, commercial and industrial applications.

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed ECM motor; 3 modes, each with 3 settings - constant pressure , proportional pressure, and a constant speed
  • Connections: Flanged (GF15/26)
  • Circulator Height (Flange to Flange): 6-1/2"
  • Electrical Specs: 115/230V, 50/60 Hz, 107W max, 1.01 Amps max
  • Head Range: 0-19.69 ft
  • Flow Range: 0-40 GPM
  • Operating Temperature Range: 14°F - 230°F
  • Max Operating Pressure: 175 psi
  • Energy Efficiency Index (EEI): 0.20
  • Dimensions (Depth x Width x Height): 7.91" x 8.34" x 6.61"
  • Weight (lbs): 12.25 lbs


Features:
  • 9 modes to choose from: (3) proportional pressure curves, (3) constant pressure curves and (3) constant speed curves (Low/Med/Hi)
  • Electronically Commutated Motor (ECM) uses 50% less energy than a standard motor
  • Intuitive control with LED indicator
  • Grundfos Eye LED displays system status for easy troubleshooting
  • High starting torque clears debris and sediment
  • cETLus Listed

Write a review

Please login or register to review
  • Views: 71
  • Model: MAGNA1 32-60 GF
  • MPN: 98126819
  • Availability: In Stock
  • Usually ships: within 1 business day(s)
  • $ 770.95
  • 4 or more $ 745.95
