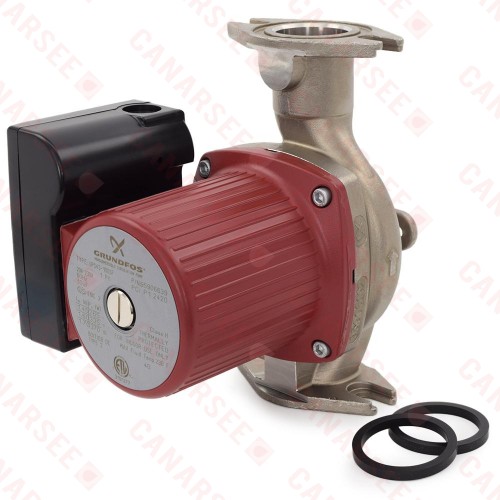

UPS43-100SF 3-Speed Stainless Steel Circulator Pump, 208-230V
Click Image for Gallery
Grundfos UPS43-100SF is a 208-230V stainless steel 3-speed circulator pump with GF40/43 connections for closed-loop heating and cooling applications.
Technical Specifications:
Features:
Technical Specifications:
- Casing: Stainless Steel
- Circulator Pump Type: 3-Speed
- Connections: Flanged (GF40/43)
- Circulator Height (Flange to Flange): 8-9/16"
- Electrical Specs: 208-230V, 60 Hz, 370W max, 1.7 Amps max; 400V Capacitor
- Head Range: 0-30.84 ft
- Flow Range: 0-65 GPM
- Operating Temperature Range: 36°F - 230°F
- Max Operating Pressure: 145 psi
- Sound Pressure Level: 40 dB
- Dimensions (Depth x Width x Height): 6.69" x 5.57" x 8.50"
- Weight (lbs): 16.3 lbs
Features:
- 3-speed switch (Lo/Med/Hi) provides versatility for various applications
- Whisper-quiet and maintenace-free operation
- Quick connectivity to terminals for easy installation
- Power LED indicator
- Lubricated bearings
- Suitable for up to pumping up to 50/50 glycol & water mix solution
- Impeller, bearing plate,and rotor are made of stainless steel
- Made in the USA
- cETLus, cULus Listed; NSF/ANSI 61 & 372 Listed
