3/4" SWT Isolator Flange Valves (pair)

3/4" SWT Isolator Flange Valves (pair)
3/4" SWT Isolator Flange Valves (pair) QR Code
QR-Code
Brand: Wright Valves

Product Code: FVC-034-2

MPN: FVC-034-2

Availability:111

Weight:0.20 lb

Usually ships: 1 business days
$24.95
12 or more $22.95

* Country:
* State:
* ZIP:
Qty: Add to Cart

Have any questions?
Contact us at 1-800-246-9552

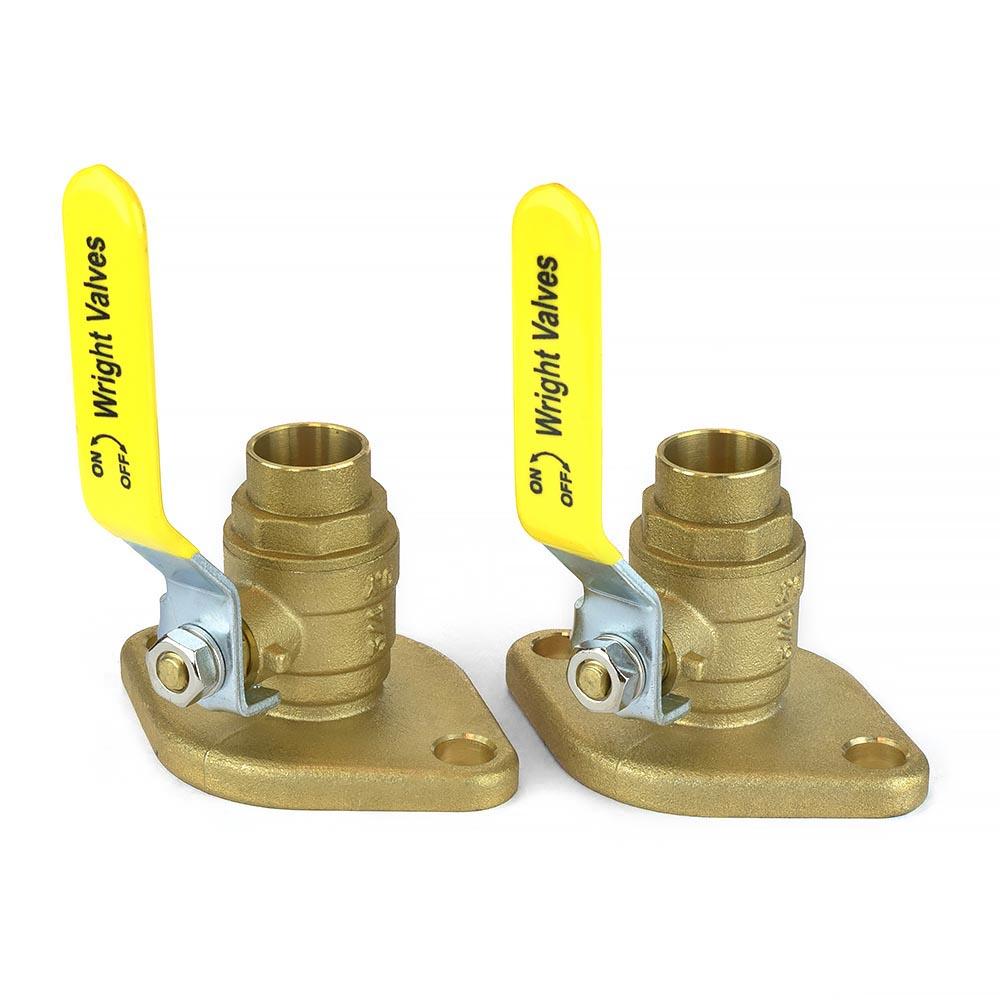

The FVC-034-2 from Wright Valves is a 3/4” Sweat Isolator Flange Valves (Pair). Pump isolation flange valves offer quick and easy way to isolate a circulator pump for service, replacement or repair without draining and re-filling the entire system.

These valves are compatible with most circulators, including: Grundfos UP15, UPS15, UP26, UPS26 and Alpha series; Taco 005, 006, 007, 008, 009, 0010, 0011, 0013, 0014, Bumble Bee, most Delta-T series and select Viridian circulator pumps; as well as most B&G, Wilo and Armstrong circulator pumps.

Features:

  • Uni-body design;
  • Universal compatibility;
  • Heavy-duty forged brass body;
  • Full port design;
  • 1/4-turn, rubber coated reversible steel handle;
  • High quality PTFE seats;
  • Adjustable packing nut;
  • Blowout-proof stem.

Technical Specifications:

  • Pressure Rated: 400 WOG;
  • Inlet Connection: Standard Flange (3-1/8" On Center Holes);
  • Outlet Connection: 3/4" Sweat;
  • Each set includes: (2) Isolator Flange Valves, (2) Gaskets, (4) Bolts and (4) Nuts.
Product Specs
Outlet Connection:3/4" Sweat
Pressure Rated:400 WOG
