1-1/4" MPT x 15-7/8" Solid 304 Stainless Steel Well Tank Tee, Extra Long

Click Image for Gallery

Description
Reviews (0)

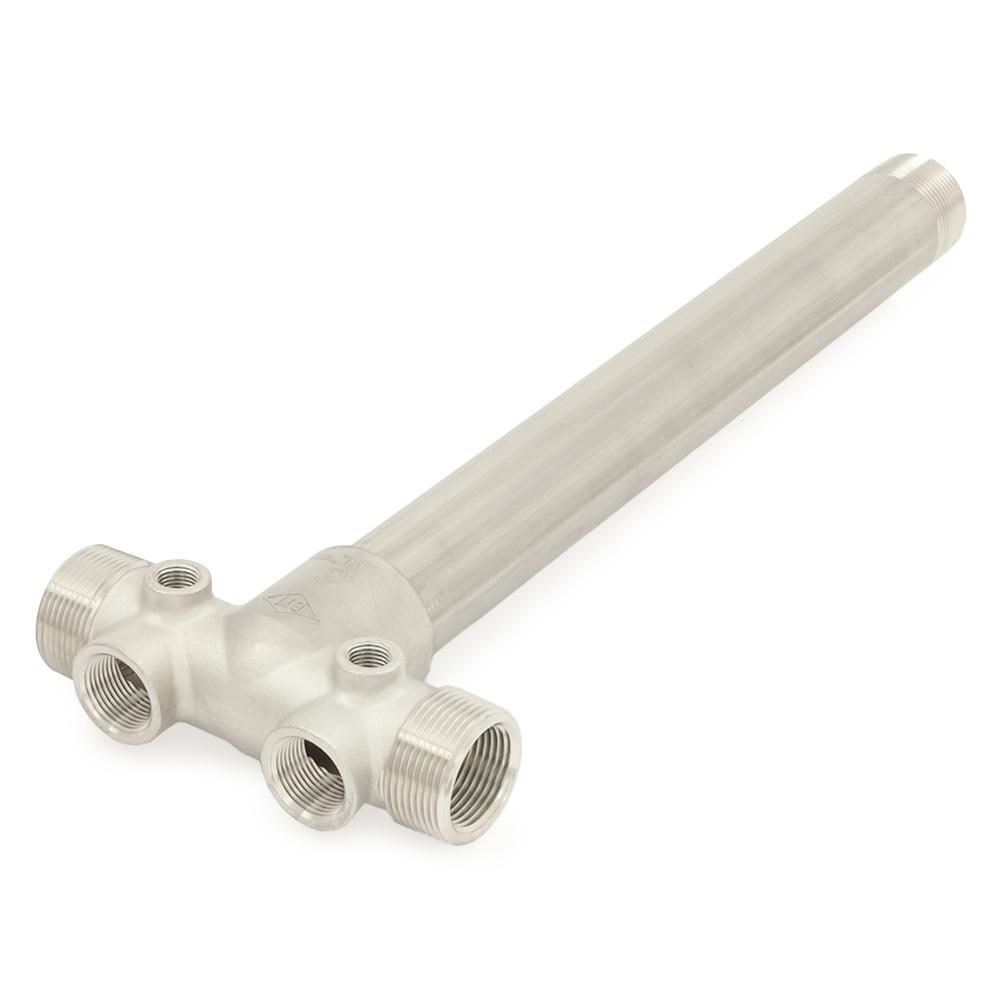

Solid 304 stainless steel, lead-free well tank tee with 1-1/4" male NPT threaded tank connection, 1-1/4" MNPT (1" FNPT inside) inlet/outlet ports, (2) 1/4" FNPT accessory ports (for pressure switch and pressure gauge) on top and (2) 3/4" FNPT ports (for pressure relief valve & drain valve) at the front. It has a center-to-end length of 15-7/8" and an overall length of ~16-5/8".
This well tank tee model is a "Standard/Long" type, intended for well tanks with an elbow fitting at the bottom of the tank (such as Well-X-Trol by Amtrol), but is also suitable for tanks with an extended connection.
For Well-X-Trol type tanks, the maximum tank diameter is 26" (WX-302/350 & other smaller models).
1-1/4" connection is ideal for larger tanks and allows for higher flow rates with minimal pressure drop.

Technical Specifications:

Material: 304 Stainless Steel
Center-to-End Length: 15-7/8"
Overall Length:
Tank Connection: 1-1/4" MPT
In-Line Tee Connections: 1-1/4" MPT x 1" FPT
Drain/PRV Ports: (2) 3/4" FPT
Top/Accessory Ports (Gauge & Pressure Switch): (2) 1/4" FPT
Max. Operating Pressure: 200 psi

Features:

Fits well tanks (incl. Well-X-Trol by Amtrol) with diameter up to 26"
High quality, solid 304 stainless steel material (Sch 40 wall thickness) made to ASTM A312 standard
1-1/4" connections for higher flow rate
100% lead-free, NSF/ANSI 372 listed
Superior resistance to corrosion (and 100% resistance to dezincification in hard water conditions)
Features (2) drain ports (for temperature gauge and pressure switch), (2) accessory ports (for pressure relief valve and drain valve), (2) in-line connection ports (water inlet and outlet ports) and (1) well water tank connection
Threads made to ANSI/ASME B1.20.1
