3/4” Sweat Zone Sentry Zone Valve, 3-Way, Normally Closed
Click Image for Gallery

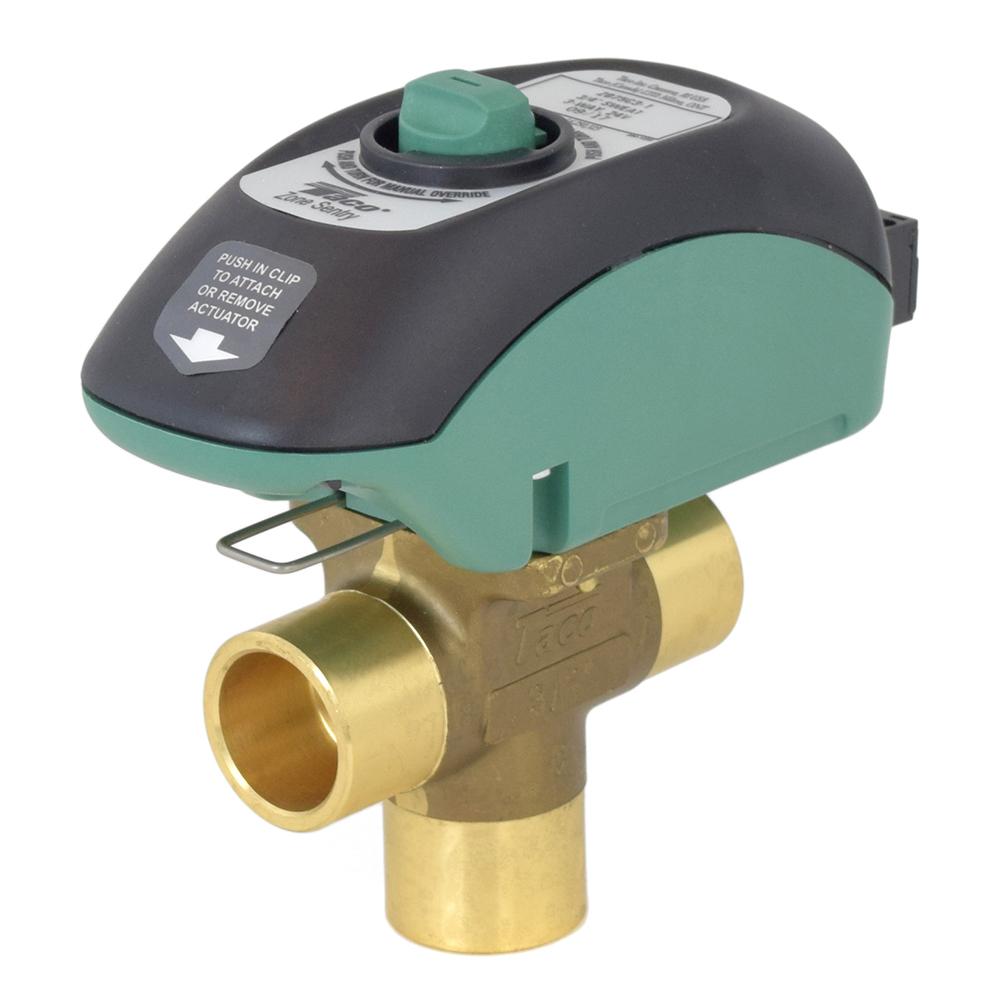

The Z075C3-1 from Taco is a 3/4” Sweat Zone Sentry Zone Valve, 3-Way, Normally Closed. It's a motorized Zone Sentry series zone valve with 3/4" Sweat connections.
Features:
- Sentry zone valve series is a market leader in efficiency, durability, ease of installation, pressure and flow characteristics
- For use in radiant, baseboard, fan coil, heat pump, air handlers and convector applications
- Valve can be installed in any direction
- Actuator can be mounted in either direction, simplifying installation in tight spaces
- Terminal block connections allow to quick and easy wiring hookup
- Manual override button
- LED status indicator.
Technical Specifications:
- Connections: 3/4" Sweat
- Valve Default Position: Normally Closed
- Max Operating Pressure: 300 psi
- Max Shut off Pressure: 125 psi
- Max Ambient Temperature: 135°F
- Fluid Temperature Range: 20 - 220°F
- Electrical Rating: 24 VAC, 60 Hz, 0.48 Amps
- Power Consumption (charging): 11.4W, 0.48 Amps
- Power Consumption (Power On): 1.44W, 0.06 Amps
- Heat Anticipator Setting: 0.5 Amps
- End Switch Rating: 1 Amp @ 24 VAC.
| Product Specs | |
| Connections | 3/4" Sweat |
| Electrical Rating: | 24 VAC, 60 Hz, 0.48 Amps |
| End Switch Rating: | 1 Amp @ 24 VAC. |
| Fluid Temperature Range: | 20 - 220°F |
| Heat Anticipator Setting: | 0.5 Amps |
| Max Ambient Temperature: | 135°F |
| Max Operating Pressure: | 300 psi |
| Max Shut off Pressure: | 125 psi |
| Power Consumption (Charging): | 11.4W, 0.48 Amps |
| Power Consumption (Power On): | 1.44W, 0.06 Amps |
| Valve Default Position: | Normally Closed |
- Views: 5158
-
- Model: Z075C3-1
- MPN: Z075C3-1
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 218.95
