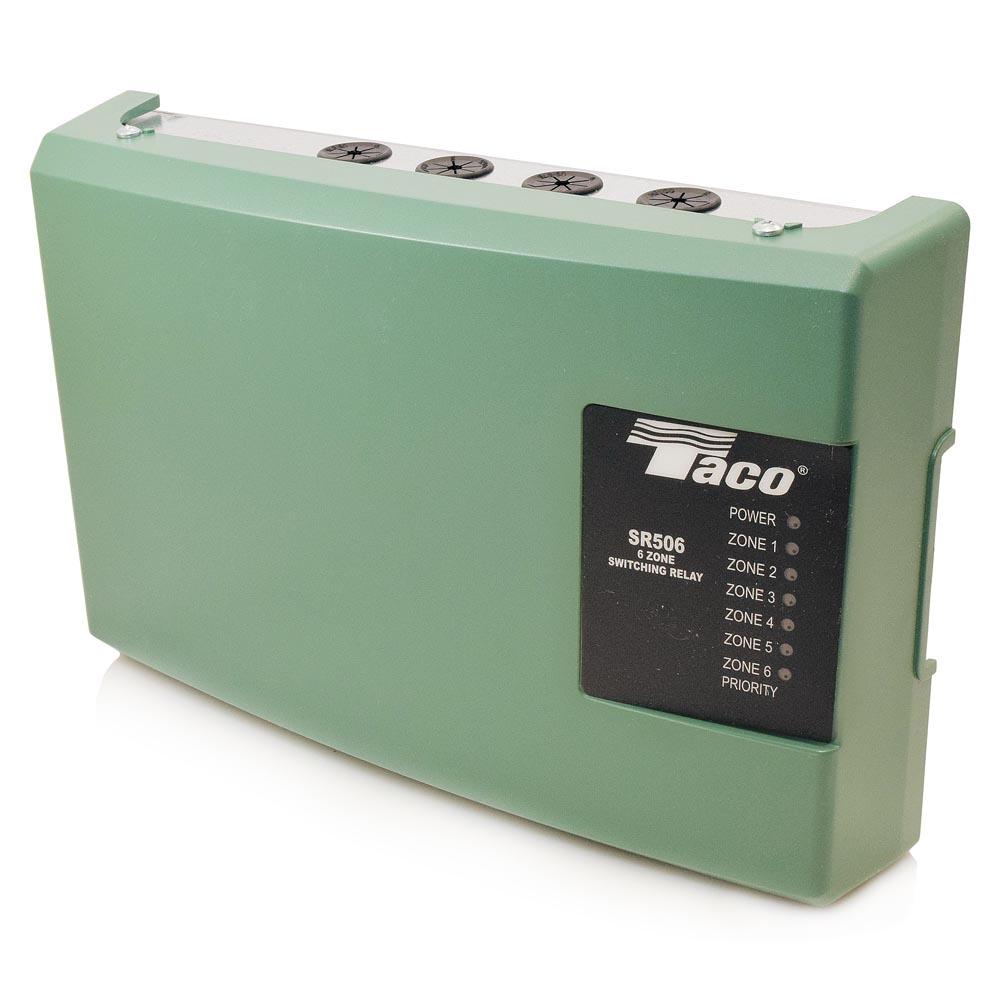

Taco 6-Zone Switching Relay with Priority, SR506-4
Click Image for Gallery
The SR506-4 from Taco is a 6-Zone Switching Relay with Priority. It combines clearly labeled PC board layout with advanced features that allow for total system customization. External indicator lights provide instant diagnostic feedback, making a snap of service calls or new installation start-ups. Taco SR506 switching relay is UL and CSA listed, uses standard “ice cube” replaceable relay and is compatible with conventional and programmable thermostats.
Features:
- External Indicator Lights;
- Switchable Priority;
- Simplified Wiring;
- Fully Enclosed Snap-Out Relays;
- Compact Design;
- Fuse Protected;
- 100% Factory Tested;
- Isolated End Switch;
- Contractor Friendly PC Board Layout;
- Universal Thermostat Compatibility;
- UL and CSA Approved;
- 24 Volt Power Input or Output Terminal;
- Made in the USA.
Technical Specifications:
- Zones: 6;
- Power: 120VAC;
- Max combined load: 20.0 AMPs;
- Dimensions: 11.75" wide x 7.50" high x 3.0" deep.
Warranty:
- Extended 3 Year Warranty.
| Product Specs | |
| Amperage: | 20 |
| Application | Zoning |
| Depth (Inches): | 3" |
| Power Method: | 120 VAC Input |
| Type: | Switching Relay |
| Voltage | 120 VAC |
| Zones | 6 |
- Views: 7837
-
- Model: SR506-4
- MPN: SR506-4
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 250.95
- 4 or more $ 245.95
