Shallow Well Jet Pump, 1/2HP, 115/230V, Cast Iron
Click Image for Gallery

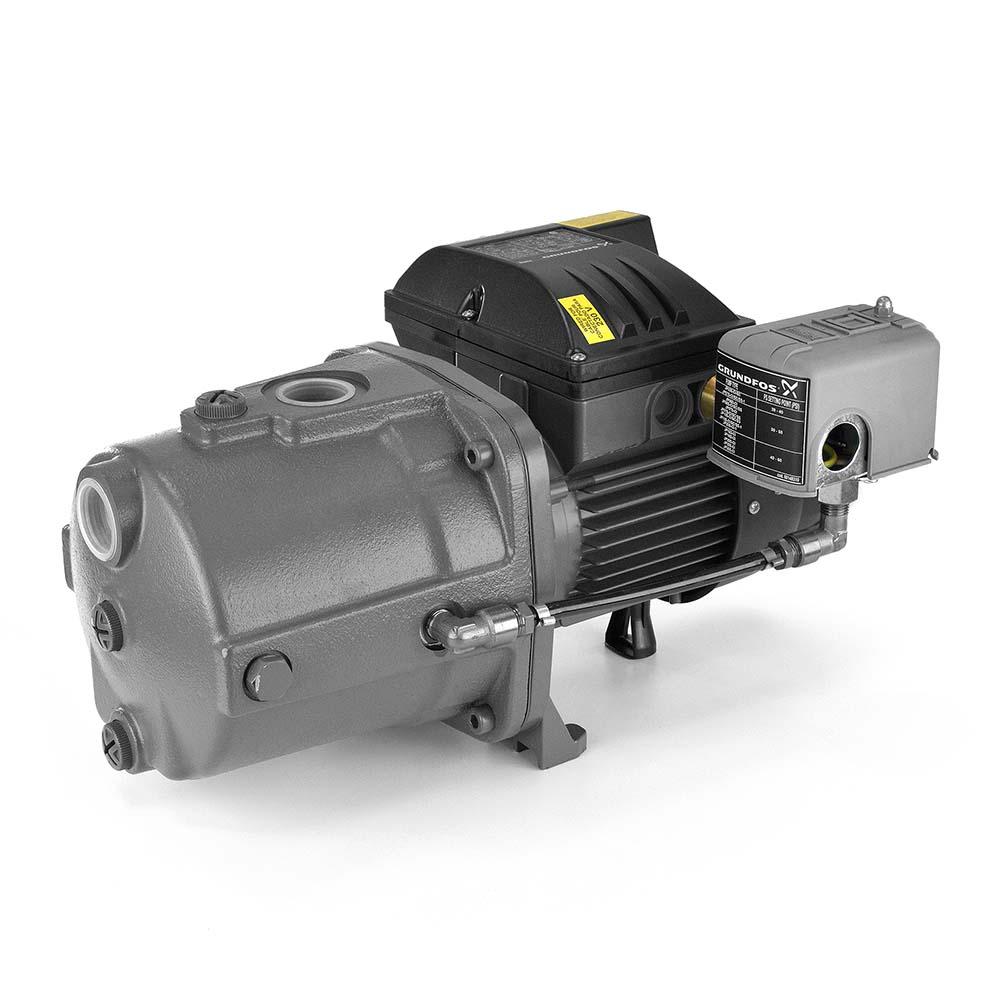

The 97855073 from Grundfos is a Shallow Well Jet Pump, 1/2HP, 115/230V, Cast Iron.
Features:
- Rugged cast iron construction
- End suction, top discharge arrangement
- Technopolymer impeller
- Built-in ejector complete with clean-out port to clear blockages from nozzle
- Convenient priming plug for ease of priming and air elimination
- Ceramic-carbon bellows mechanical seal ensures trouble-free operation
Technical Specifications:
- Max. flow, GPM: 21;
- Max. pump head: 145ft;
- Max. working pressure: 116 PSI;
- Motor power: 1/2HP;
- Fluid temp range: 32 - 95F;
- Max. lift;: 25ft;
- Max. ambient temp: 104F;
- Factory pressure switch setting: 30/50 PSI;
- Storage temp: 14 - 104F;
- Relative humidity: 95%;
- Max. starts per hour: 20;
| Product Specs | |
| Application | Shallow Well |
| Fluid Temperature Range: | 32°F - 95°F |
| Hertz: | 60 |
| Horse Power | 1/2 |
| Material1 | Cast Iron |
| Max Flow (GPM): | 21 |
| Max Pressure (PSI): | 116 |
| Phase: | 1 |
| Relative Humidity: | 95% |
| Shutoff Head (ft.): | 145' |
| Type: | Jet Pump |
| Voltage | 115/230v |
- Views: 9516
-
- Model: 97855073
- MPN: 97855073
- Availability: Discontinued
