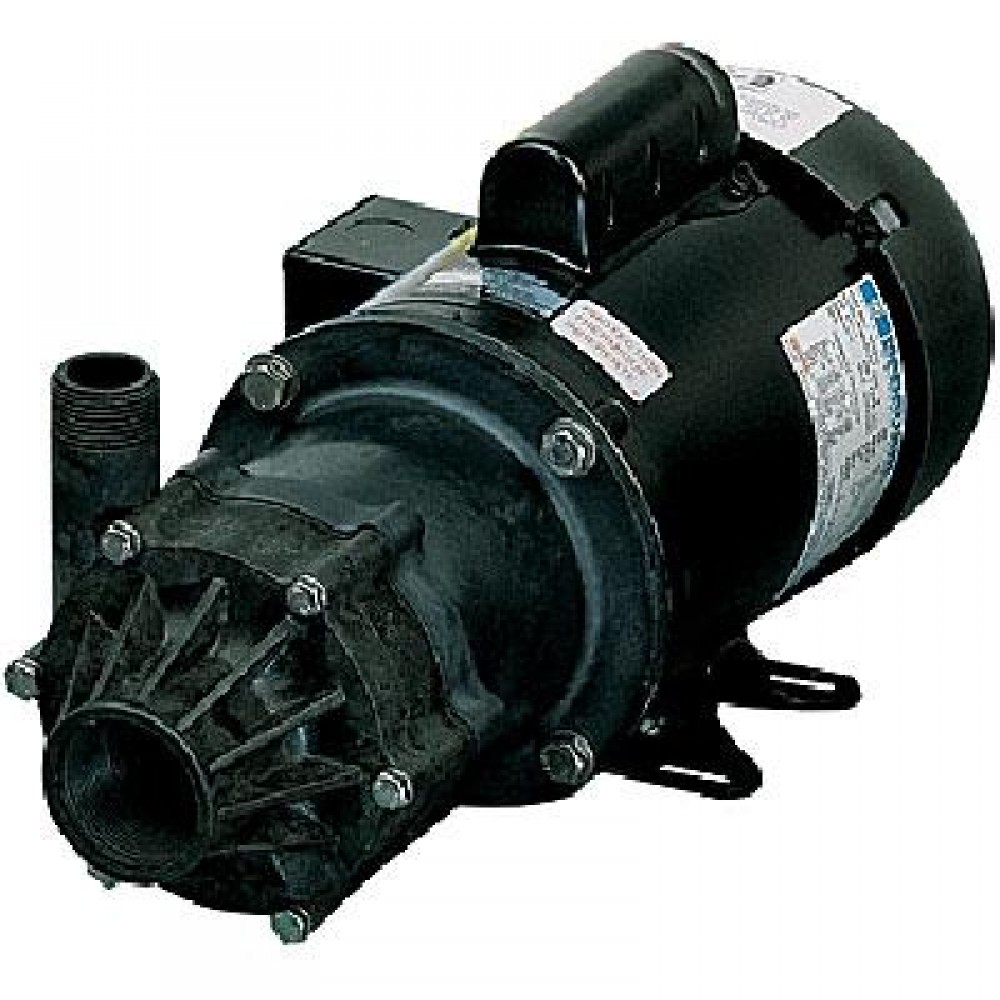

Magnetic Drive Pump for Highly Corrosive, 3/4HP, 115/230V, 1-Phase

The 587600 from Little Giant is a Magnetic Drive Pump for Highly Corrosive, 3/4HP, 115/230V. Designed for in-line, non-submersed use in environments such as hospitals, chemical companies, photo labs, dry cleaning plants, car washes, machine shops, laboratories, manufacturing plants, print shops and wineries.

TE-7-MD-CK Magnetic Drive Pump features a 1" MNPT discharge with head capacity of 58.5'. The TE-7-MD-CK with a 1 1/2" FNPT Intake was specifically engineered to handle highly corrosive fluids with high efficiency and long term dependability. Little Giant TE-7-MD-CK has Carbon-filled polyvinylidene fluoride (Kynar) Back Plate, Volute, Impeller Assembly and a chemical resistant plastic separator housing to ensure ultimate chemical resistance. Only chemical resistant materials are in contact with fluids. Carbon-filled Kynar Impeller utilizes Chemloy Bushing between itself and the spindle for the ultimate performance and functionality. Little Giant TE-7-MD-CK boasts leakproof, seal-less magnetic drive, Fluid Temperature operation up to 200F and Ambient Air Temperature up to 77F. Ceramic shaft seal, thrust washers and Viton parts are 99.5% pure alumina provide a longer service life, excellent wear and trouble-free service. Little Giant's powerful 3/4 HP PSC (TEFC) thermally protected, totally enclosed, fan-cooled motor with ball bearings and thermal overload protection delivers 48' GPM of fluids at 9' total dynamic head. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Conduit box must be wired in field. Cord not included.

Features:

• Specific Gravity - up to 1.1;
• Ambient Air Temperature - up to 77F;
• Fluid Temperature - up to 200F;
• Power Cord not included;
• Thermally protected, totally enclosed, permanent split capacitor motor;
• Ball bearings;
• Listings: UR/C-CSA;

Technical Specifications:

• Motor: 3/4 HP TEFC PSC;
• RPM: 2850/3450;
• Maximum flow rate: 53GPM (48 GPM @ 9');
• Maximum Head: 58.5';
• Intermittent Liquid Temp: 200F;
• Specific gravity: 1.1;
• Intake: 1 1/2" FNPT;
• Discharge: 1" MNPT;
• Voltage: 115/230 V;
• Hertz: 50/60 Hz;
• Watts: 1230 W;
• Weight: 40 lbs;
• Height: 8.3";
• Width: 8";
• Length: 17.3";
